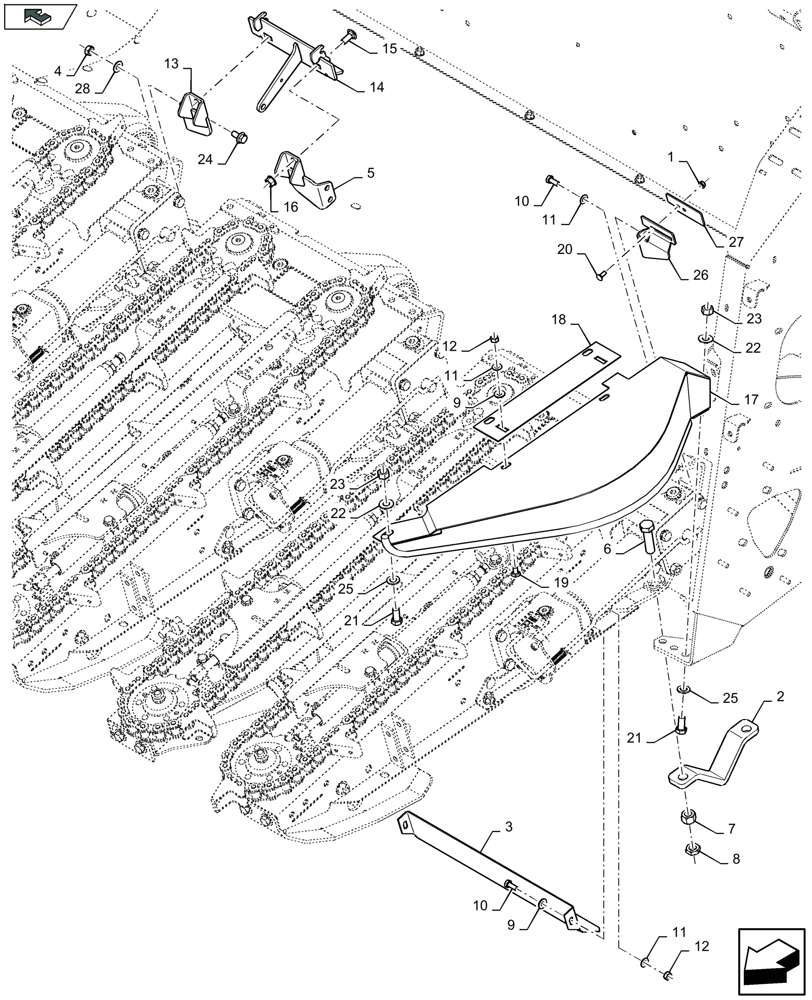

Запчасти Case IH 4408F-30 (58.220.030) - ROW UNIT ATTACHMENT, LH (58) - ATTACHMENTS/HEADERS

1

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

2

322422250

RETAINER COLLAR

12шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

2

322422250

RETAINER COLLAR

16шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

2

322422250

RETAINER COLLAR

24шт.

FOR 4412F-30 ONLY

1шт.

3

322630550

SHIELD

6шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

3

322630550

SHIELD

8шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

3

322630550

SHIELD

12шт.

FOR 4412F-30 ONLY

1шт.

4

86500689

NUT,M10 x 1.5, Cl 10

12шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

4

86500689

NUT,M10 x 1.5, Cl 10

20шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

4

86500689

NUT,M10 x 1.5, Cl 10

36шт.

FOR 4412F-30 ONLY

1шт.

5

47478770

SUPPORT

3шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

5

47478770

SUPPORT

5шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

5

47478770

SUPPORT

9шт.

FOR 4412F-30 ONLY

1шт.

6

15981131

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

24шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

6

15981131

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

32шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

6

15981131

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

48шт.

FOR 4412F-30 ONLY

1шт.

7

10790521

NUT,M16 x 1.5, Cl 10

24шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

7

10790521

NUT,M16 x 1.5, Cl 10

32шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

7

331192

NUT,M16 x 1.5, Cl 8

48шт.

FOR 4412F-30 ONLY

1шт.

8

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

24шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

8

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

32шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

8

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

48шт.

FOR 4412F-30 ONLY

1шт.

9

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

14шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

9

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

18шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

9

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

26шт.

FOR 4412F-30 ONLY

1шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

14шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

18шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

26шт.

FOR 4412F-30 ONLY

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

28шт.

FOR 4412F-30 ONLY

1шт.

12

9706690

NUT,M8 x 1.25, Cl 8

14шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

12

9706690

NUT,M8 x 1.25, Cl 8

18шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

12

9706690

NUT,M8 x 1.25, Cl 8

26шт.

FOR 4412F-30 ONLY

1шт.

13

47478767

SUPPORT

3шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

13

47478767

SUPPORT

5шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

13

47478767

SUPPORT

9шт.

FOR 4412F-30 ONLY

1шт.

14

47508882

HINGE

3шт.

FOR 4406F-75 ONLY

1шт.

14

47513377

HINGE

3шт.

FOR 4406F-80 ONLY

1шт.

14

47508882

HINGE

, Serial Range: -C661

5шт.

FOR 4408F-75 ONLY

1шт.

14

47694907

HINGE

, Start Serial: D662

5шт.

FOR 4408F-75 ONLY

1шт.

14

47513377

HINGE

3шт.

FOR 4408F-80 ONLY

1шт.

14

47478036

HINGE

9шт.

FOR 4412F-30 ONLY

1шт.

14

47508882

HINGE

2шт.

FOR 4408F-80 ONLY

1шт.

14

47478036

HINGE

5шт.

FOR 4408F-30 ONLY

1шт.

15

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

6шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

15

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

10шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

15

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

18шт.

FOR 4412F-30 ONLY

1шт.

16

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

16

9804278

FLANGE NUT,M10 x 1.5, Cl 8

10шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

16

9804278

FLANGE NUT,M10 x 1.5, Cl 8

18шт.

FOR 4412F-30 ONLY

1шт.

17

322531350

SHIELD

1шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

FOR 4412F-30 ONLY

1шт.

FOR 4406F-80 ONLY

1шт.

17

322594350

SHIELD

, Serial Range: -C661

1шт.

FOR 4406F-75 ONLY

1шт.

17

322531350

SHIELD

, Start Serial: D662

1шт.

FOR 4406F-75 ONLY

1шт.

18

322462050

COVER PLATE

1шт.

19

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

20

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

21

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

22

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

23

9706685

NUT,M12 x 1.75, Cl 8

2шт.

24

86705428

BOLT,Hex, M10 x 20mm, Cl 10.9, Full Thd

12шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

24

86705428

BOLT,Hex, M10 x 20mm, Cl 10.9, Full Thd

20шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

24

86705428

BOLT,Hex, M10 x 20mm, Cl 10.9, Full Thd

36шт.

FOR 4412F-30 ONLY

1шт.

25

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

26

47581964

BRACKET

1шт.

27

47588351

PLATE

1шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

36шт.

FOR 4412F-30 ONLY

1шт.
