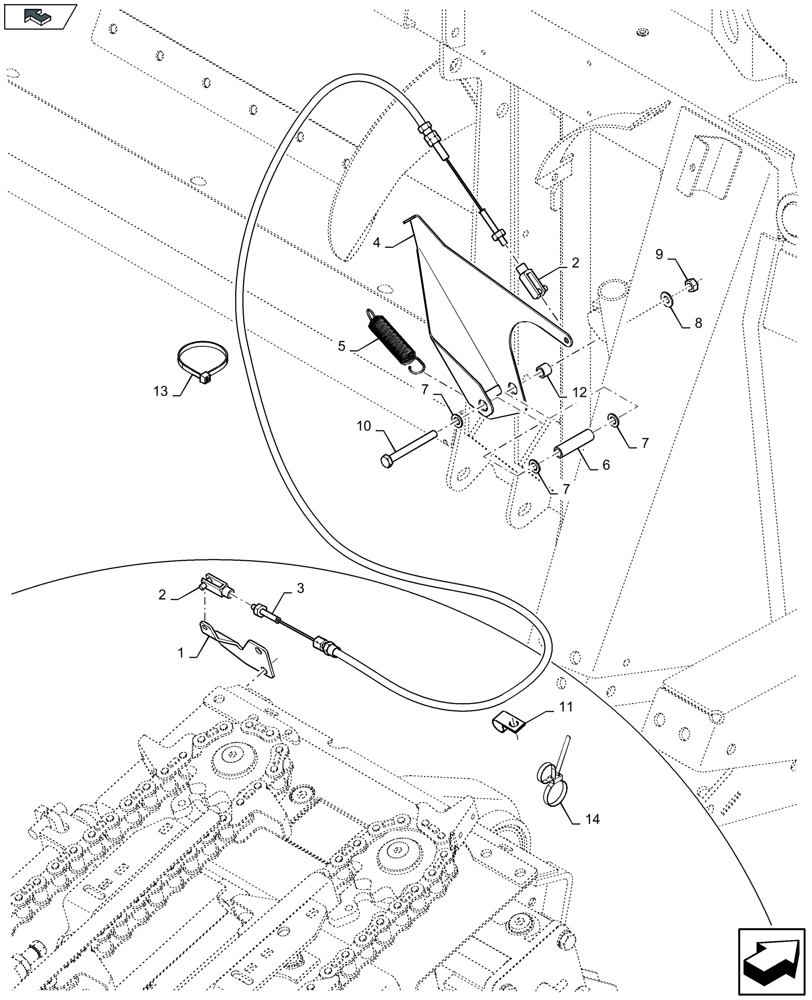

Запчасти Case IH 4408F-30 (58.216.020) - DECK/STRIPPER PLATES DISTANCE CONTROL (58) - ATTACHMENTS/HEADERS

1

84245559

HOLDER

1шт.

2

322014450

YOKE,M6

2шт.

3

322442450

CABLE

1шт.

4

84977805

INDICATOR

YELLOW

1шт.

4

84972793

INDICATOR

RED

1шт.

5

350356531

SPRING

1шт.

6

322442550

SPACER

1шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

9

9706690

NUT,M8 x 1.25, Cl 8

2шт.

10

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

FOR 4406F-75, 4406F-80, 4408F-30, 4408F-75 AND 4408F-80 ONLY

1шт.

10

395851

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8, Full Thd

, Serial Range: -C697

1шт.

FOR 4412F-30 ONLY

1шт.

10

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

, Start Serial: D698

1шт.

FOR 4412F-30 ONLY

1шт.

11

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

, Serial Range: -C699

1шт.

FOR 4406F-75, 4406F-80, 4408F-30, 4408F-75 AND 4408F-80 ONLY

1шт.

11

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

FOR 4412F-30 ONLY

1шт.

12

47398066

BUSHING,9mm ID x 19mm OD x 20mm L

, Serial Range: -C697

1шт.

FOR 4412F-30 ONLY

1шт.

13

86566989

CABLE TIE,208mm L

, Serial Range: -C699

2шт.

FOR 4406F-75, 4406F-80, 4408F-30, 4408F-75 AND 4408F-80 ONLY

1шт.

13

86566989

CABLE TIE,208mm L

, Start Serial: D700

1шт.

FOR 4406F-75, 4406F-80, 4408F-30, 4408F-75 AND 4408F-80 ONLY

1шт.

13

86566989

CABLE TIE,208mm L

2шт.

FOR 4412F-30 ONLY

1шт.

14

82013031

CABLE TIE,193mm L

, Start Serial: D700

1шт.

FOR 4406F-75, 4406F-80, 4408F-30, 4408F-75 AND 4408F-80 ONLY

1шт.

14

82013031

CABLE TIE,193mm L

1шт.

FOR 4412F-30 ONLY

1шт.
