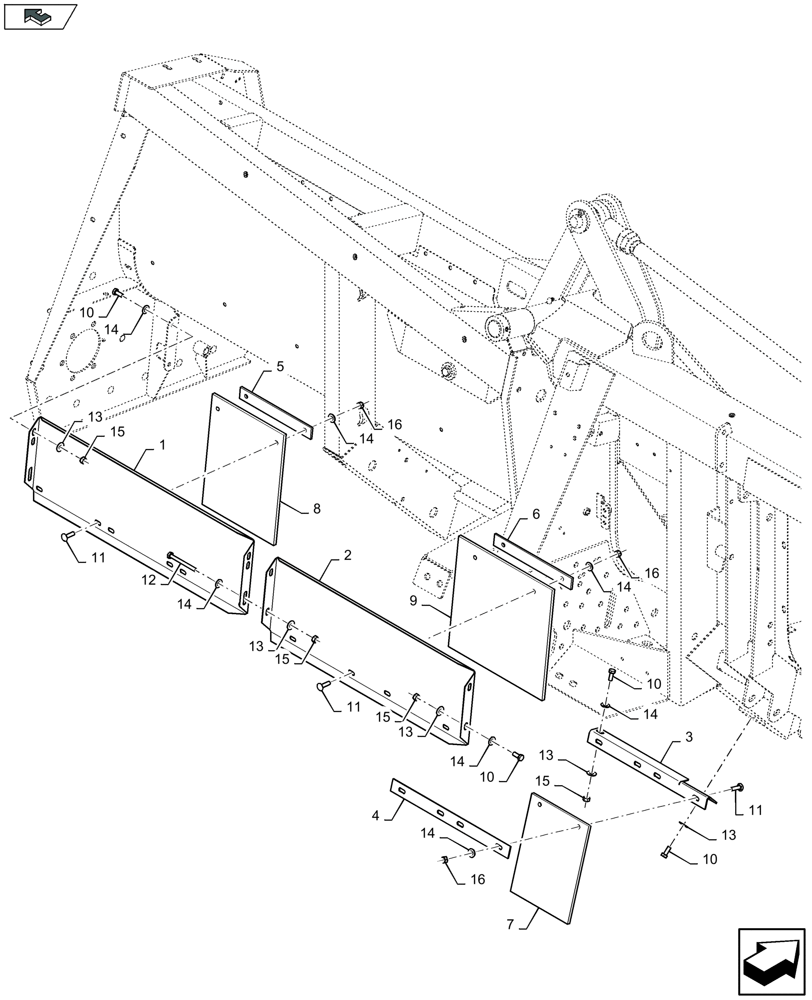

Запчасти Case IH 4408F-30 (58.208.760) - CHOPPER SHIELDING, LH (58) - ATTACHMENTS/HEADERS

1

47602611

PLATE

1шт.

FOR 4408F-80 AND 4408F-30 ONLY

1шт.

1

47505955

PLATE

1шт.

FOR 4408F-75 ONLY

1шт.

2

47550146

PLATE

1шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

2

47361527

COVER PLATE

1шт.

FOR 4406F-75 AND 4406F-80 ONLY

1шт.

3

47358006

SUPPORT

1шт.

4

47550106

PLATE

1шт.

5

47631079

PLATE

3шт.

FOR 4408F-80 AND 4408F-30 ONLY

1шт.

5

84977660

FIXING PLATE

2шт.

FOR 4408F-75 ONLY

1шт.

6

84977660

FIXING PLATE

2шт.

7

47551130

CANVAS

2шт.

8

47547657

CANVAS

3шт.

FOR 4408F-80 AND 4408F-30 ONLY

1шт.

8

47547660

CANVAS

1шт.

FOR 4408F-75 ONLY

1шт.

9

47547658

CANVAS

2шт.

FOR 4406F-75, 4406F-80, 4408F-80 AND 4408F30 ONLY

1шт.

9

47547658

CANVAS

3шт.

FOR 4408F-75 ONLY

1шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

11

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

14шт.

12

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

FOR 4408F-75, 4408F-80 AND 4408F-30 ONLY

1шт.

13

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

8шт.

14

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

21шт.

15

9706690

NUT,M8 x 1.25, Cl 8

7шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

14шт.
