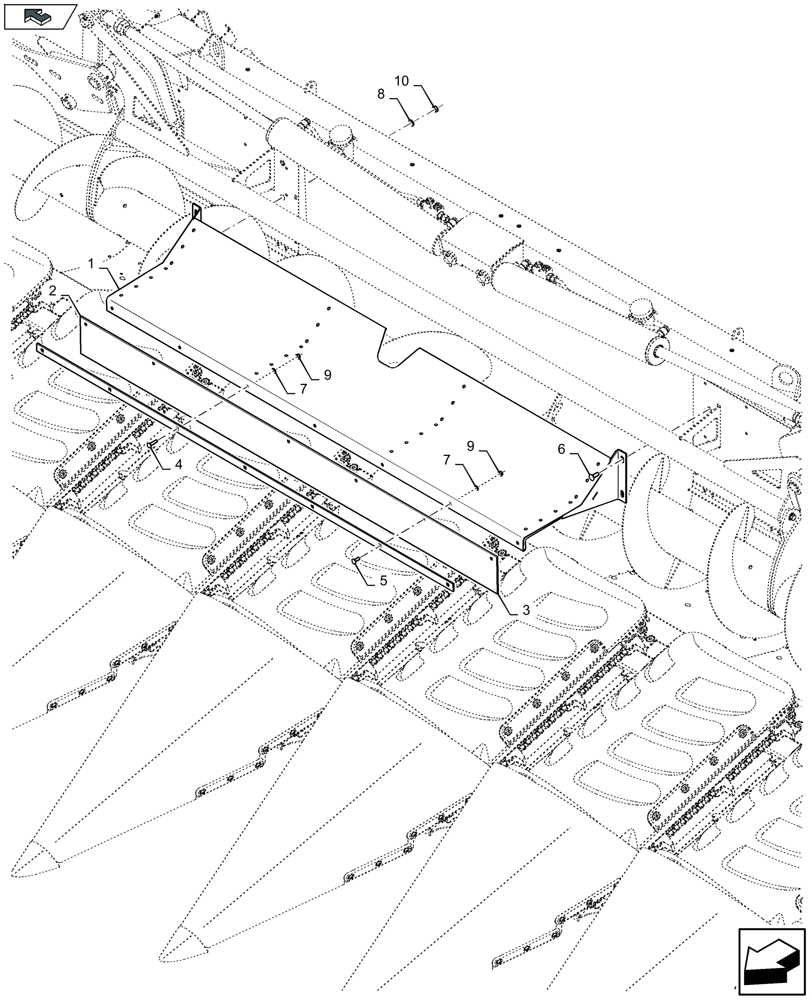

Запчасти Case IH 4408F-30 (58.208.620) - AUGER PROTECTION (58) - ATTACHMENTS/HEADERS

1

87538305

SHIELD

, Serial Range: -C685

1шт.

1

47949255

SHIELD

, Start Serial: D686

1шт.

2

87538647

CANVAS

, Serial Range: -C685

1шт.

2

47949251

GUARD

, Start Serial: D686

1шт.

3

87538649

FIXING PLATE

1шт.

4

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

4шт.

5

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

3шт.

6

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

7

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

7шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

7шт.

10

100016

NUT,M10 x 1.5, Cl 8

4шт.
