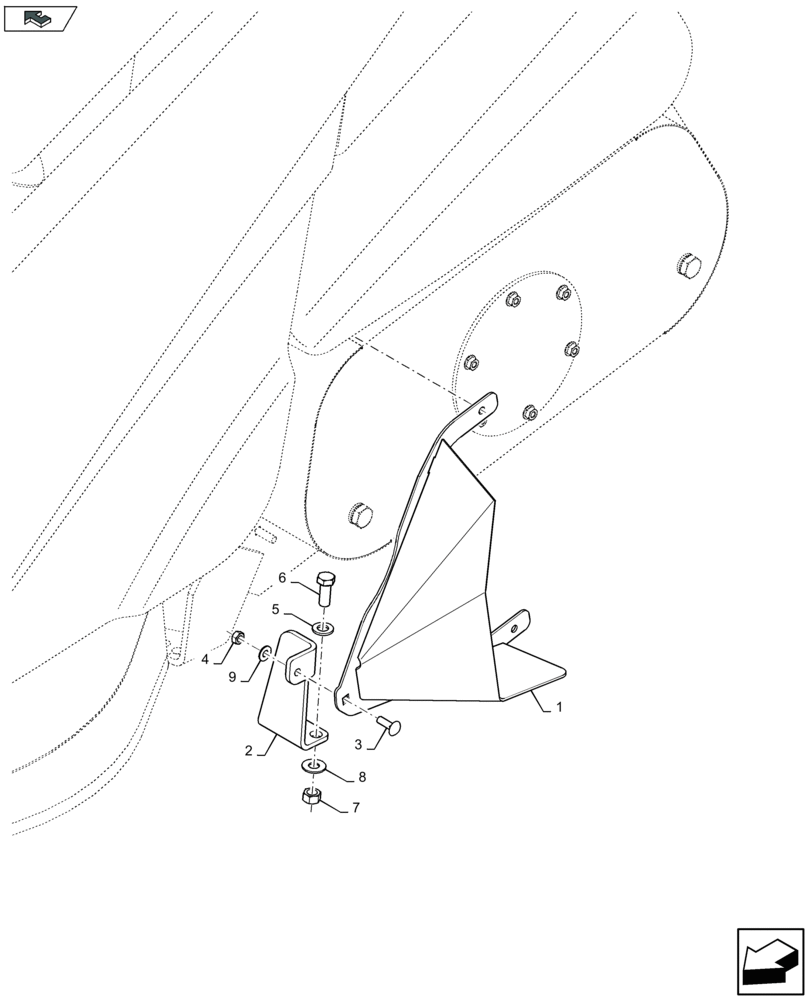

Запчасти Case IH 4408F-30 (58.208.100) - HEADER DRIVE DIVIDER (58) - ATTACHMENTS/HEADERS

1

47723868

DIVIDER

1шт.

2

47724397

SUPPORT

1шт.

3

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

4

43362

NUT,M8 x 1.25, Cl 10

1шт.

5

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

6

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

7

337475

NUT,M12, Cl 10

2шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.
