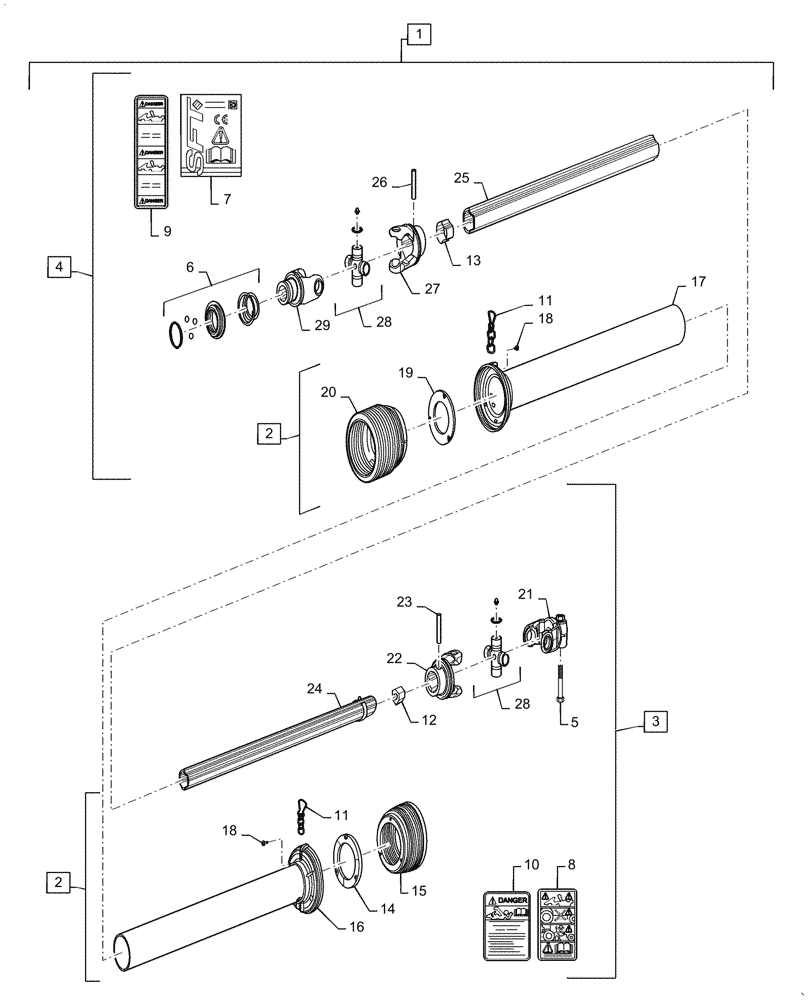

Запчасти Case IH 4408-38 (31.100.AG[02]) - RH PTO SHAFT ASSY, 8 ROW, ASN YGH632500 (31) - IMPLEMENT POWER TAKE OFF

1

47914459

SHAFT

RH, PTO Assy, Incl 2 - 29

1шт.

2

47965432

SHIELD

Kit, Complete

1шт.

3

47517394

SHAFT

PTO, Inner Half

1шт.

4

47965420

SHAFT

Outer Half

1шт.

5

87685060

BOLT

1шт.

6

87476136

KIT

Lock Back Collar

1шт.

7

84260527

BOOKLET

1шт.

8

84260531

DANGER DECAL

CE Outer Shield

1шт.

9

87586693

DECAL

1шт.

10

87685057

LABEL

Outer, Danger/Shield

1шт.

11

87685054

CHAIN,Safety

2шт.

12

48002320

PLUG

Outer Tube

1шт.

13

48002319

PLUG

Inner Tube

1шт.

14

87685056

RING

Shield Support

1шт.

15

47844100

SHIELD

Safety Cone

1шт.

16

47517391

TUBE

PTO, Inner Shield and Base Cone

1шт.

17

47517415

TUBE

PTO, Outer Shield and Base Cone

1шт.

18

87586687

SCREW

6шт.

19

87517831

BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm

Shield, Front

1шт.

20

47889625

SHIELD

Cone

1шт.

21

87685111

YOKE

1шт.

22

87517829

YOKE

Rear

1шт.

23

47396474

COILED PIN

1шт.

24

87476185

TUBE,INNER DRIVE 1335 mm L

PTO, Inner Drive W/Greasing

1шт.

25

87476004

TUBE,1335 mm L

PTO, Outer Drive

1шт.

26

47965045

PIN

Flex Roll

1шт.

27

87685007

YOKE

1шт.

28

87685061

SPIDER

Cross Kit

2шт.

29

47964895

YOKE

Outer

1шт.
