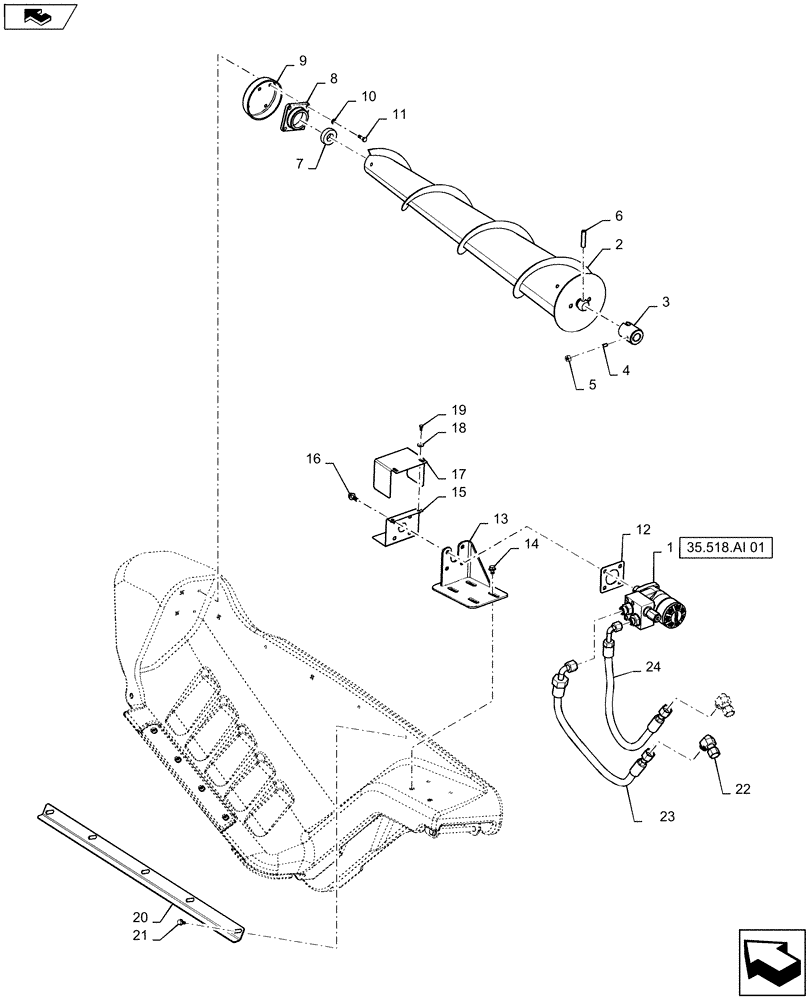

Запчасти Case IH 4408-36 (58.228.AG[03]) - HOOD, AUGER ASSY, RH DIVIDER (58) - ATTACHMENTS/HEADERS

1

84142005

HYDRAULIC MOTOR

1шт.

2

84540200

AUGER

1шт.

3

84278079

COUPLING

1шт.

4

300477

SET SCREW,M8 x 16mm

1шт.

5

9706690

NUT,M8 x 1.25, Cl 8

1шт.

6

278910

LOCK PIN,12mm OD x 55mm L, Slotted

1шт.

7

340411236

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

8

47377254

HOUSING

1шт.

9

84278072

PROTECTION PLATE

1шт.

10

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

12

84198833

SPACER

1шт.

13

47482835

MOUNT

1шт.

14

87646158

BOLT,Hex, M10 x 15mm, Cl 8.8

4шт.

15

47410532

SHIELD

1шт.

16

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

17

47410536

SHIELD

1шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

19

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

20

47479864

STRIPPER

1шт.

21

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

5шт.

22

201-361

ELBOW,90 Degree Elbow, 1" - 14 Male JIC x 1" - 14 Female JIC

2шт.

23

47413632

HYDRAULIC HOSE,12.7mm ID x 700mm L, SAE 100R17

1шт.

24

47413659

HYDRAULIC HOSE,12.7mm ID x 700mm L, SAE 100R17

1шт.
