Запчасти Case IH 4408-30 (58.100.AH[02]) - DRIVE, HEADER, ASSY, REAR, RH, BSN YGH632232 (58) - ATTACHMENTS/HEADERS

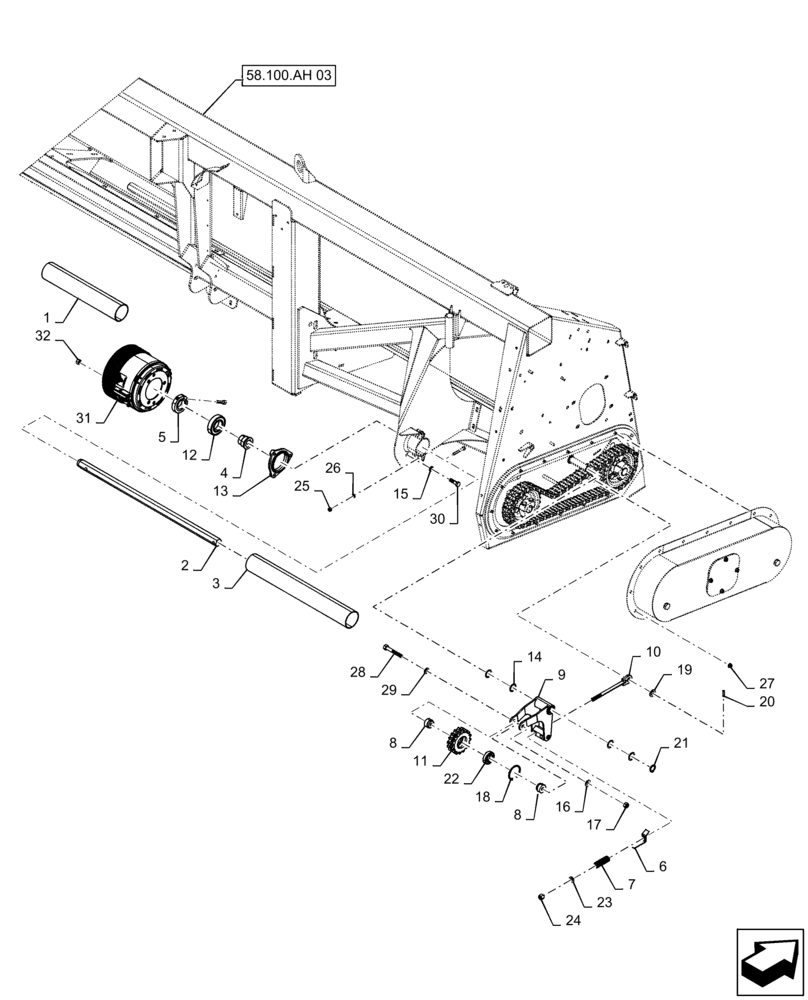

Схема запчастей Case IH 4408-30 - (58.100.AH[02]) - DRIVE, HEADER, ASSY, REAR, RH, BSN YGH632232 (58) - ATTACHMENTS/HEADERS
13
3
23
20
17
8
18
8
24
22
9
29
4
10
15
6
19
2
21
16
30
1
28
27
7
12
11
5
58.100.ah 03
14
32
26
31
25

Артикул

Название

Примечание

Количество

1

87395110

SHIELD

LH, Shaft

1шт.

2

87517216

SHAFT

Jackshaft

2шт.

3

87517217

SHIELD

RH, Shaft

1шт.

4

87750436

BUSHING

Hex

1шт.

5

87750435

LOCKING RING

Jackshaft

1шт.

6

84989032

INDICATOR

Plated

2шт.

7

9817602

SPRING

Compression

2шт.

8

84977641

BUSHING

Plated

4шт.

9

84977642

IDLER LEVER

Arm

2шт.

10

84977640

THREADED ROD

Eyebolt

2шт.

11

300114232

DRIVEN SPROCKET

Shaft

2шт.

12

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

13

300019980

SUPPORT

Bearing Housing

1шт.

14

419854

WASHER,26mm ID x 35mm OD x 1mm Thk

7шт.

15

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

3шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

17

9706685

NUT,M12 x 1.75, Cl 8

2шт.

18

370012

RING,M62, Internal

2шт.

19

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

20

130045

PIN,5mm OD x 26mm L, Slotted

2шт.

21

370002

CIRCLIP,M25, External

3шт.

22

210043

BALL BEARING,30mm ID x 62mm OD x 16mm W

2шт.

23

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

24

412126

NUT,M12 x 1.75

2шт.

25

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

26

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

27

86619801

FLANGE NUT,M8 x 1.25, Cl 8

16шт.

28

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

2шт.

29

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

30

86637969

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

31

47581515

SHIELD

Cone

1шт.

32

18711711

NUT,M12 x 1.25, Cl 8

Hex, M12 x 1.25

3шт.

Выбрано товаров: 32
