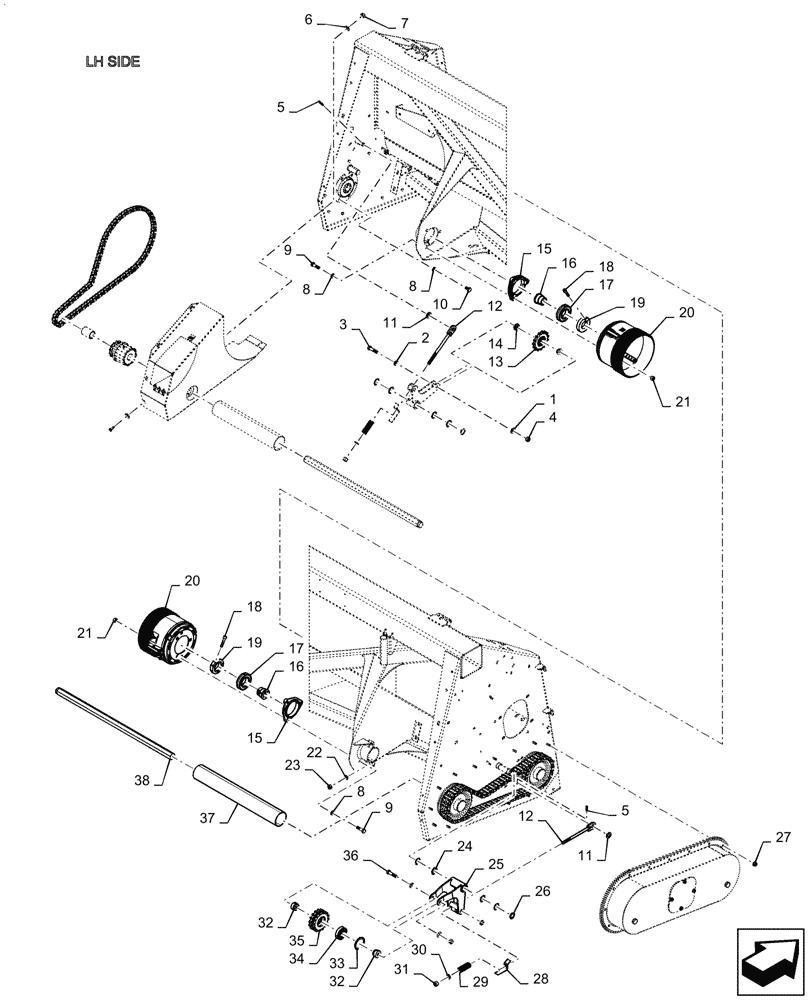

Запчасти Case IH 4408-30 (58.100.AH[02]) - DRIVE, HEADER, ASSY, ASN YGH632233 (58) - ATTACHMENTS/HEADERS

1

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

2

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

3

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

4

9706685

NUT,M12 x 1.75, Cl 8

3шт.

5

130045

PIN,5mm OD x 26mm L, Slotted

3шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

7

9706690

NUT,M8 x 1.25, Cl 8

2шт.

8

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

6шт.

9

86637969

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

6шт.

10

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

11

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

3шт.

12

84977640

THREADED ROD

3шт.

13

84980926

SPROCKET

1шт.

14

84561546

SPACER,13mm ID x 30mm OD x 10.5mm L

2шт.

15

300019980

SUPPORT

2шт.

16

87750436

BUSHING

2шт.

17

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

2шт.

18

14420531

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 10.9

2шт.

19

87750435

LOCKING RING

2шт.

20

47581515

SHIELD

2шт.

21

18711711

NUT,M12 x 1.25, Cl 8

6шт.

22

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

23

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

24

419854

WASHER,26mm ID x 35mm OD x 1mm Thk

4шт.

25

84977529

IDLER LEVER

2шт.

26

370002

CIRCLIP,M25, External

3шт.

27

86619801

FLANGE NUT,M8 x 1.25, Cl 8

16шт.

28

84989032

INDICATOR

2шт.

29

9817602

SPRING

2шт.

30

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

31

412126

NUT,M12 x 1.75

2шт.

32

84977641

BUSHING

2шт.

33

370012

RING,M62, Internal

2шт.

34

210043

BALL BEARING,30mm ID x 62mm OD x 16mm W

2шт.

35

84976526

DRIVEN SPROCKET

2шт.

36

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

2шт.

37

47913915

SHIELD

1шт.

38

47914665

SHAFT

Jackshaft

2шт.
