Запчасти Case IH 4408-30 (58.100.AH[01]) - DRIVE, HEADER, ASSY, FRONT, BSN YGH632232 (58) - ATTACHMENTS/HEADERS

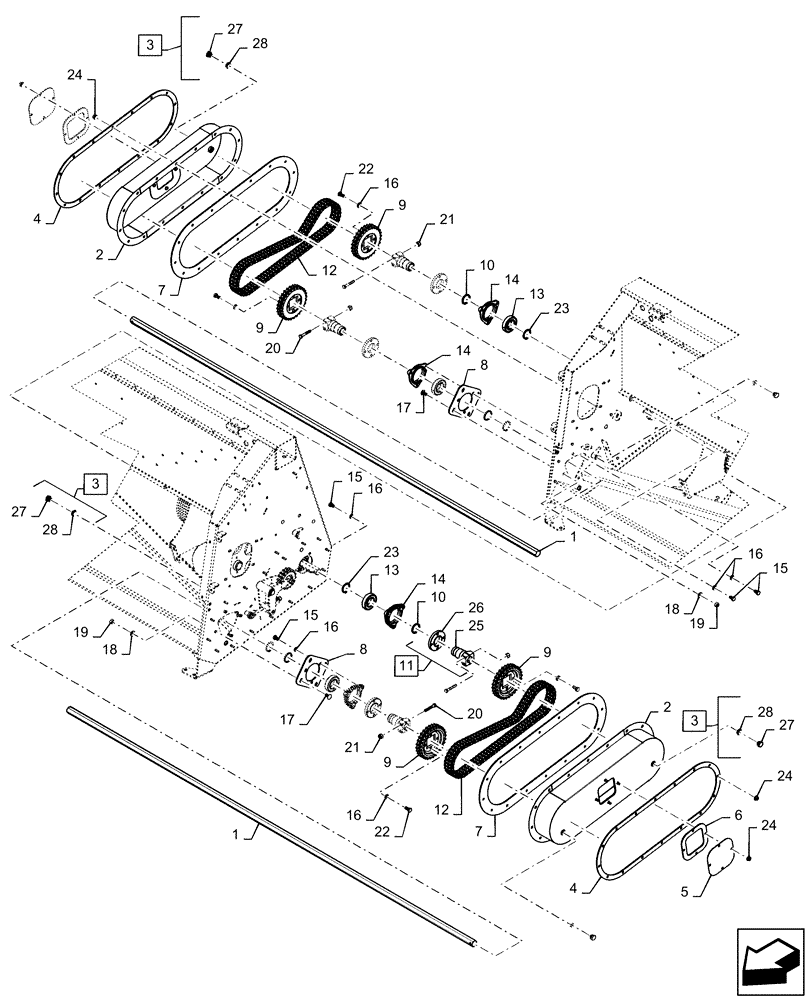

Схема запчастей Case IH 4408-30 - (58.100.AH[01]) - DRIVE, HEADER, ASSY, FRONT, BSN YGH632232 (58) - ATTACHMENTS/HEADERS
25
4
19
13
16
20
16
9
20
17
8
4
2
24
23
12
27
9
28
15
9
24
14
16
7
21
16
8
6
13
18
15
3
11
27
26
16
3
23
10
22
18
5
27
24
15
21
28
10
19
1
14
1
17
3
28
12
22
2
14
9
7

Артикул

Название

Примечание

Количество

1

87395091

DRIVE SHAFT

Plated, 30"

2шт.

1

84545641

SHAFT

36" and 38"

2шт.

2

87482693

SHIELD

Chain Cover

2шт.

3

84977693

PLUG,M18 x 1.5

Assy, Incl 27 - 28

6шт.

4

84977574

PLATE

Cover

2шт.

5

84977580

COVER

Inspection

2шт.

6

84977581

GASKET

Inspection Cover

2шт.

7

84977588

GASKET

Chain Cover

2шт.

8

84977230

COVER PLATE

Hub

2шт.

9

84977238

DRIVEN SPROCKET

Chain

4шт.

10

84977639

RING

Cover

4шт.

11

84977536

HUB

Incl 25 - 26

4шт.

12

84977338

CHAIN,#60-2, 88 Links x 19.05mm = 1676.4mm

#60-2 double chain

2шт.

13

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

4шт.

14

300019980

SUPPORT

Bearing Housing

4шт.

15

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

9шт.

16

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

25шт.

17

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

8шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

19

9706685

NUT,M12 x 1.75, Cl 8

8шт.

20

120071

BOLT,Hex, M10 x 65, 8.8

8шт.

21

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

22

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

16шт.

23

370007

SNAP RING,M45, Ext

4шт.

24

86619801

FLANGE NUT,M8 x 1.25, Cl 8

24шт.

25

84977239

HUB

Hub, Incl with 11

1шт.

26

84977567

PLATE

Plate, Incl with 11

2шт.

27

84977695

PLUG

Incl with 3

1шт.

28

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Incl with 3

1шт.

Выбрано товаров: 29
