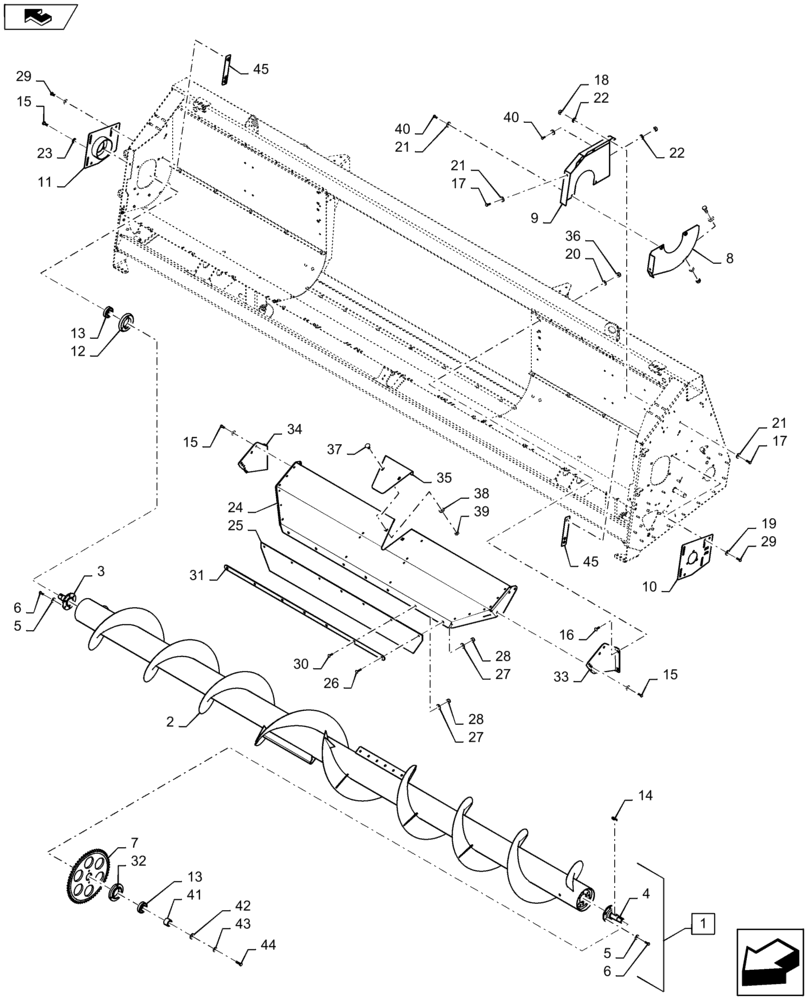

Запчасти Case IH 4406-38 (58.218.AG) - AUGER ASSY (58) - ATTACHMENTS/HEADERS

1

NSS

NOT SOLD SEPARAT

6-Row Auger Assy, Incl 2 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

8-Row Auger Assy, Incl 2 - 6

1шт.

2

47370071

AUGER

6-Row

1шт.

2

87523603

AUGER

8-Row

1шт.

3

322529650

SHAFT

6/8 - Row

1шт.

4

322529550

SHAFT

6/8 - Row

1шт.

5

412655

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.6mm Thk

12шт.

6

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

12шт.

7

84559198

SPROCKET

1шт.

8

47368760

SHIELD

1шт.

9

47368674

SHIELD

1шт.

10

47368594

BRACKET, SUPPORTING

1шт.

11

47368644

BRACKET, SUPPORTING

1шт.

12

321140350

FLANGE

1шт.

13

84002007

BALL BEARING,35mm ID x 72mm OD x 17mm W

2шт.

14

354775

KEY,10mm x 8mm x 40mm

1шт.

15

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

10шт.

16

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

17

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

18

86625072

NUT,Hex, M6, Cl 10

5шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

20

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

21

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

9шт.

22

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

23

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

6шт.

24

84473410

SHIELD

1шт.

25

84473397

FLEXIBLE SHEATH

1шт.

26

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

4шт.

27

140041

WASHER,M8 x 28mm OD x 3mm Thk

7шт.

28

86629542

NUT,M8 x 1.25, Cl 8.8

7шт.

29

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

30

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

3шт.

31

84473401

SLAT

1шт.

32

87670203

BEARING HOUSING,72 mm ID x 115.5 mm OD

1шт.

33

84488709

SUPPORT

1шт.

34

84473409

SUPPORT

1шт.

35

87721184

PLATE

1шт.

35

87723524

SHEET METAL

1шт.

36

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

37

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

38

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

39

9706690

NUT,M8 x 1.25, Cl 8

4шт.

40

86508616

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

3шт.

41

322530150

SPACER

1шт.

42

355511250

WASHER

1шт.

43

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

44

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

45

47486582

BRACKET

4шт.
