Запчасти Case IH 4406-38 (58.130.AJ[01]) - FRAME, 4400 (58) - ATTACHMENTS/HEADERS

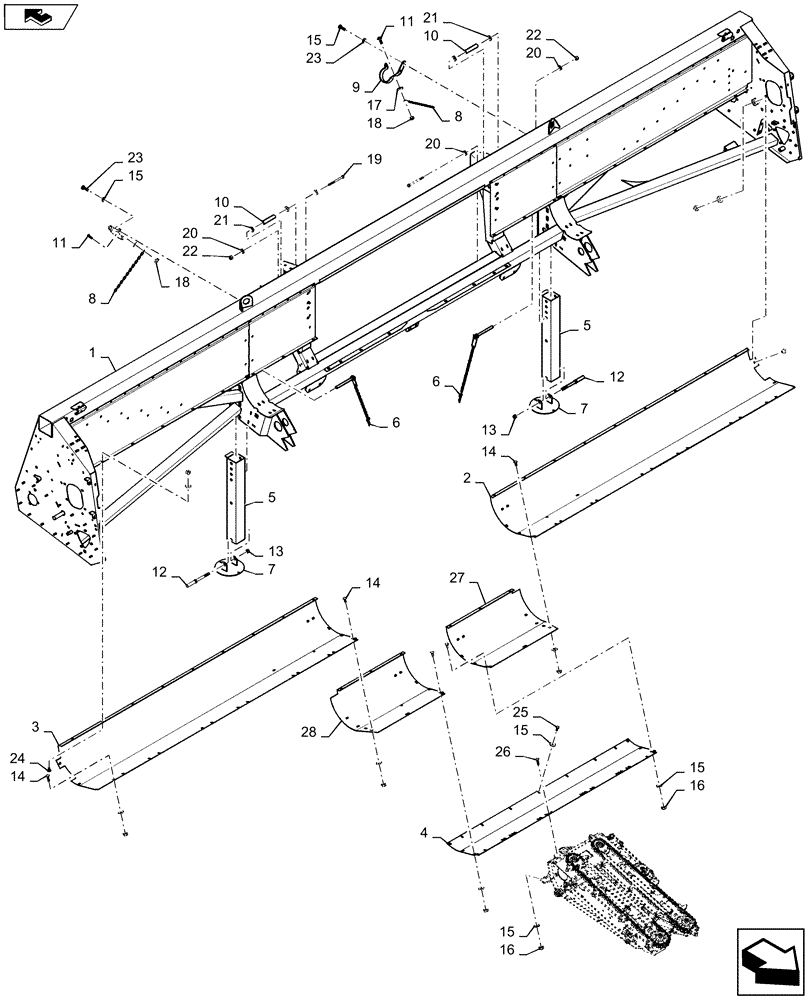

Схема запчастей Case IH 4406-38 - (58.130.AJ[01]) - FRAME, 4400 (58) - ATTACHMENTS/HEADERS
8
20
8
7
19
6
13
15
15
12
20
22
13
27
5
2
12
21
28
10
14
24
15
18
4
25
15
7
10
1
11
9
23
18
16
5
26
11
23
3
16
17
22
6
home
15
14
20
21
14

Артикул

Название

Примечание

Количество

1

84582325

FRAME

Assy, 6 - Row, 30"

1шт.

1

84564392

FRAME

Assy, 8 - Row, 30"

1шт.

1

84574702

FRAME

Assy, 8 - Row, 36" - 38"

1шт.

1

84582255

FRAME

Assy, 12 - Row, 30"

1шт.

2

84582778

TROUGH

LH, Auger Floor, 6 - Row, 30"

1шт.

2

47359854

TROUGH

LH, Auger Floor, 8 - Row, 30"

1шт.

2

84574639

TROUGH

LH, Auger Floor, 8 - Row, 36" - 38"

1шт.

2

47359843

TROUGH

LH, Auger Floor, 12 - Row, 30"

1шт.

3

84582770

TROUGH

RH, Auger Floor, 6 - Row, 30"

1шт.

3

47359852

TROUGH

RH, Auger Floor, 8 - Row, 30"

1шт.

3

84574636

TROUGH

RH, Auger Floor, 8 - Row, 36" - 38"

1шт.

3

47359845

TROUGH

RH, Auger Floor, 12 - Row, 30"

1шт.

4

84573684

TROUGH

1шт.

5

84977271

SUPPORT

2шт.

6

84977209

PIN

2шт.

7

84977272

SUPPORT

Circle Style Base

2шт.

7

47800055

BASE PLATE

Square Style

2шт.

8

87665435

CHAIN

2шт.

9

87593972

BRACKET, SUPPORTING

2шт.

10

84977330

BUSHING

2шт.

11

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

12

87747216

BOLT

2шт.

13

86000441

NUT,M16 x 2.0, Cl 8

2шт.

14

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6 & 8 Row

16шт.

14

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

12 Row

20шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6 - Row 30"

49шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8 - Row 30"

53шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8 - Row 36" - 38"

61шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12 - Row 30"

83шт.

16

9706690

NUT,M8 x 1.25, Cl 8

6 - Row 30"

44шт.

16

9706690

NUT,M8 x 1.25, Cl 8

8 - Row 30"

48шт.

16

9706690

NUT,M8 x 1.25, Cl 8

8 - Row 36" - 38"

56шт.

16

9706690

NUT,M8 x 1.25, Cl 8

12 - Row 30"

78шт.

17

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

18

9706755

NUT,M6, Cl 8

2шт.

19

44151

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

2шт.

20

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

4шт.

21

84011662

WASHER,14mm ID x 32mm OD x 3.5mm Thk

4шт.

22

412126

NUT,M12 x 1.75

2шт.

23

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

24

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

16шт.

24

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

20шт.

24

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

24шт.

24

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

34шт.

25

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

26

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

6 - Row

12шт.

26

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

8 - Row

16шт.

26

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

12 - Row

24шт.

27

87476029

PANEL

1шт.

28

87476131

PANEL

1шт.

Выбрано товаров: 50
