Запчасти Case IH 4406-38 (58.100.AH[01]) - DRIVE, HEADER, ASSY, FRONT (58) - ATTACHMENTS/HEADERS

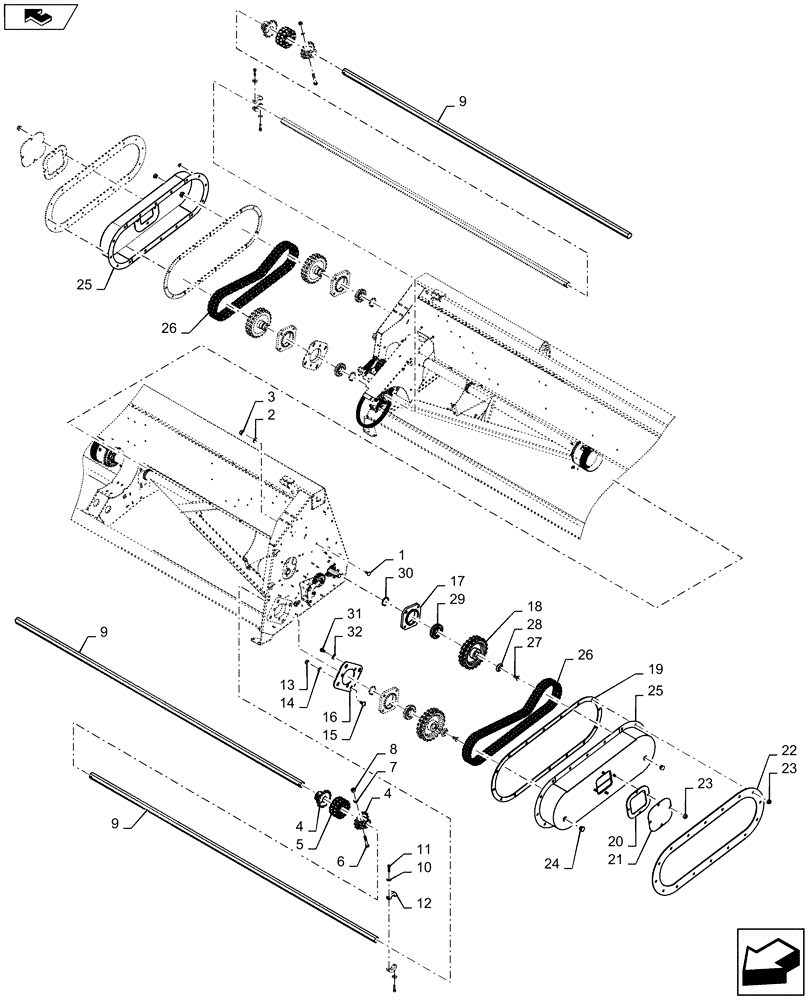

Схема запчастей Case IH 4406-38 - (58.100.AH[01]) - DRIVE, HEADER, ASSY, FRONT (58) - ATTACHMENTS/HEADERS
6
30
24
14
18
28
2
22
9
25
26
9
3
27
10
4
home
9
12
7
8
29
16
11
23
26
19
31
17
20
32
23
4
15
21
1
5
25
13

Артикул

Название

Примечание

Количество

1

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

3

9706690

NUT,M8 x 1.25, Cl 8

2шт.

4

322570650

DRIVEN SPROCKET

4шт.

5

340437629

CHAIN,60-2, 14 Links x 19.05mm = 266.7mm

2шт.

6

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

7

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

8

100016

NUT,M10 x 1.5, Cl 8

4шт.

9

47415608

DRIVE SHAFT

6-Row

2шт.

9

87395091

DRIVE SHAFT

8-Row

2шт.

9

84545641

SHAFT

8-Row

2шт.

9

87482251

DRIVE SHAFT

12-Row

4шт.

10

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

11

86531614

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

12

84977051

HALF-SHELL

4шт.

13

9706685

NUT,M12 x 1.75, Cl 8

8шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

15

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

8шт.

16

87477885

STEEL PLATE

12-Row

2шт.

16

84977230

COVER PLATE

8-Row

2шт.

17

87477884

BEARING HOUSING,96 mm ID x 110 mm OD x 23.5 mm

4шт.

18

87752746

SPROCKET

12-Row

4шт.

18

84977161

DRIVEN SPROCKET

6-Row, 8-Row

4шт.

19

84977588

GASKET

2шт.

20

84977581

GASKET

2шт.

21

84977580

COVER

2шт.

22

84977574

PLATE

2шт.

23

86619801

FLANGE NUT,M8 x 1.25, Cl 8

24шт.

24

84977693

PLUG,M18 x 1.5

4шт.

25

87482693

SHIELD

2шт.

26

87480340

CHAIN,A80-2, 66 Links x 25.4mm = 1676.4mm

LH, 12-Row

2шт.

26

84977338

CHAIN,#60-2, 88 Links x 19.05mm = 1676.4mm

LH, 8-Row, 6-Row

1шт.

27

84976774

SCREW,FLAT, M12 x 30mm, Cl 8.8

4шт.

28

322453050

LOCK WASHER

4шт.

29

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

4шт.

30

370007

SNAP RING,M45, Ext

4шт.

31

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

16шт.

32

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

16шт.

Выбрано товаров: 38
