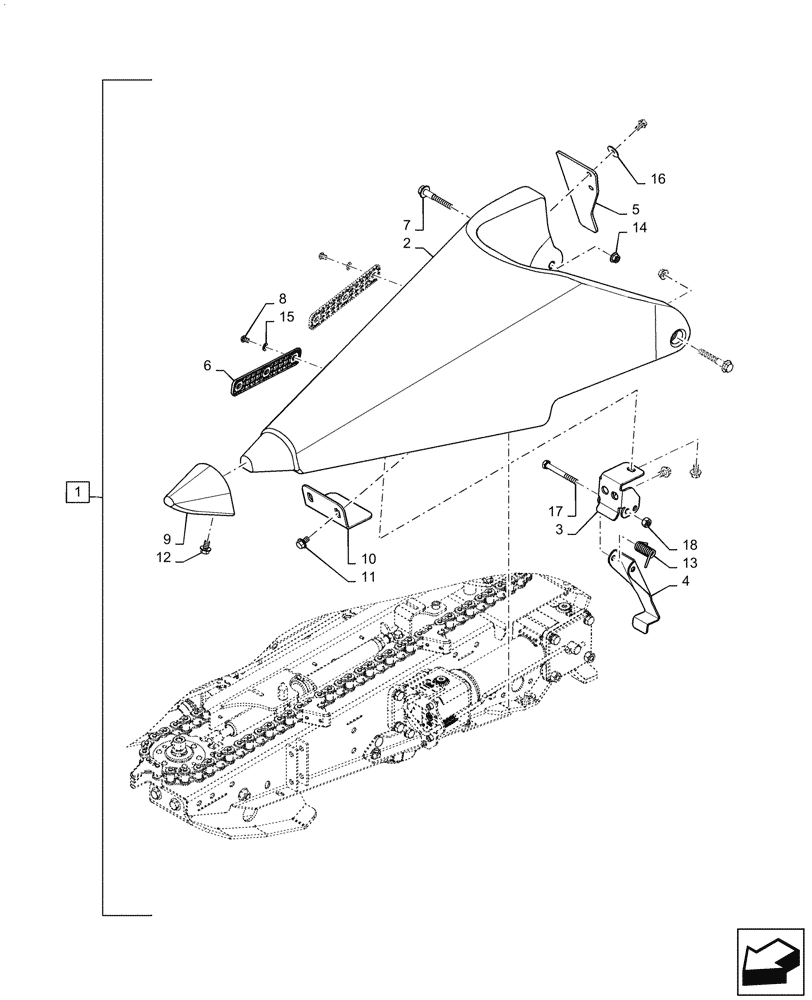

Запчасти Case IH 4406-30 (58.208.AA[01D]) - KIT DIVIDER ASSY. OUTER LH CIH (58) - ATTACHMENTS/HEADERS

1

47830555

KIT

Includes 2 - 18

1шт.

2

84526077

CROP DIVIDER

LH Outer

1шт.

3

47562437

MOUNT

1шт.

4

47768526

LOCKING TAB

1шт.

5

47515996

FLAP

Outer Divider Ear Saver

1шт.

6

47358208

WEAR STRIP

2шт.

7

84528927

STEP BOLT

2шт.

8

47907507

SCREW

6шт.

9

84531925

POINT

Divider

1шт.

10

47386726

PLATE

Divider Support

1шт.

11

47662028

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

12

86531147

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

7шт.

13

84581856

TORSION SPRING

1шт.

14

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

16

47631943

PLATE

Ear Saver

1шт.

17

87015575

BOLT,Hex, M10 x 85mm, Cl 8.8

2шт.

18

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.
