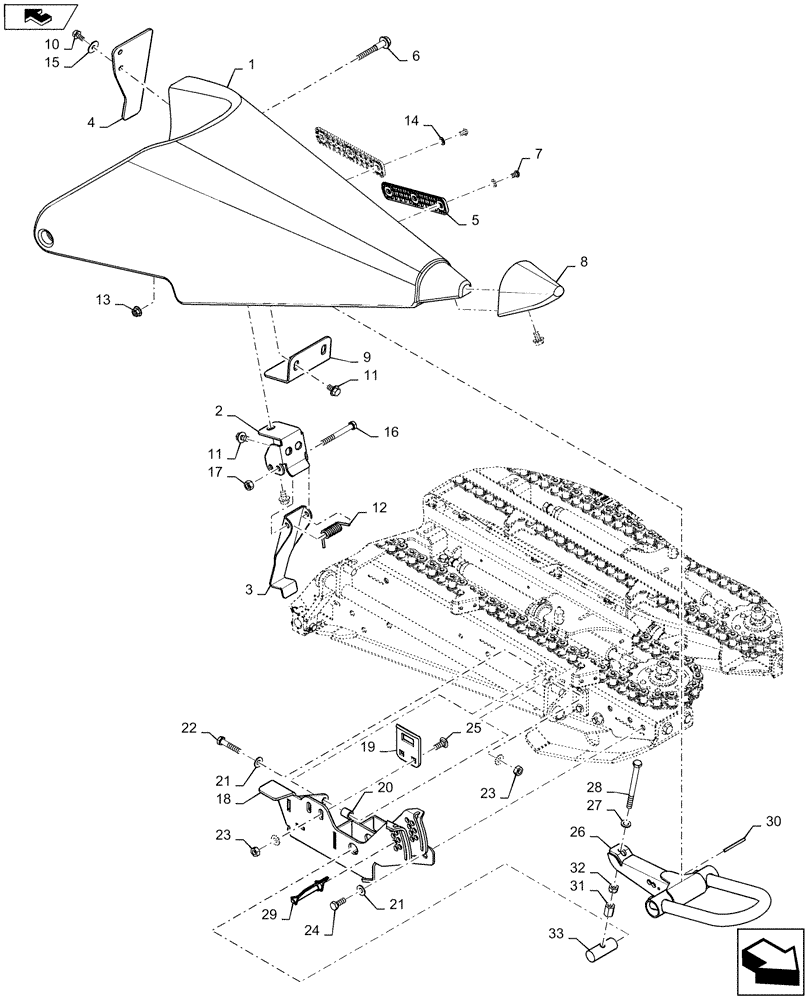

Запчасти Case IH 4406-30 (58.130.BC[02]) - DIVIDER, ASSY, RH (58) - ATTACHMENTS/HEADERS

1

47386730

CROP DIVIDER

RH, Outer

1шт.

2

47479911

MOUNT

Divider Lock

1шт.

3

47479910

LOCKING TAB

Divider

1шт.

4

47515996

FLAP

Inner Divider Ear Saver, Serial Range: -YGH632499

1шт.

4

48026901

FLAP

Inner Divider Ear Saver, 6 Row, Start Serial: YGH632500

1шт.

5

47358208

WEAR STRIP

Divider

2шт.

6

84528927

STEP BOLT

2шт.

7

47368446

SCREW

Screw

6шт.

8

84531925

POINT

Divider

1шт.

9

47386726

PLATE

Divider Support

1шт.

10

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

11

86531147

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

6шт.

12

84581856

TORSION SPRING

1шт.

13

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

15

87013865

WASHER,9mm ID x 28mm OD x 1.6mm Thk

2шт.

16

87015575

BOLT,Hex, M10 x 85mm, Cl 8.8

2шт.

17

8475948

NUT,M10 x 1.5, Cl 8

2шт.

18

47498949

SUPPORT

RH Divider

1шт.

19

84596566

PLATE

Striker

1шт.

20

322554950

BUSHING

2шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

22

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

23

100016

NUT,M10 x 1.5, Cl 8

4шт.

24

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

25

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

26

84558127

ARM

Divider Support

1шт.

27

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

28

120118

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8, Full Thd

1шт.

29

87711364

PIN,9.53mm OD

Snapper

1шт.

30

381929

LOCK PIN,M5 x 60, Slotted

1шт.

31

84530355

NUT

1шт.

32

756970

LOCK NUT

1шт.

33

84530341

PIN

1шт.
