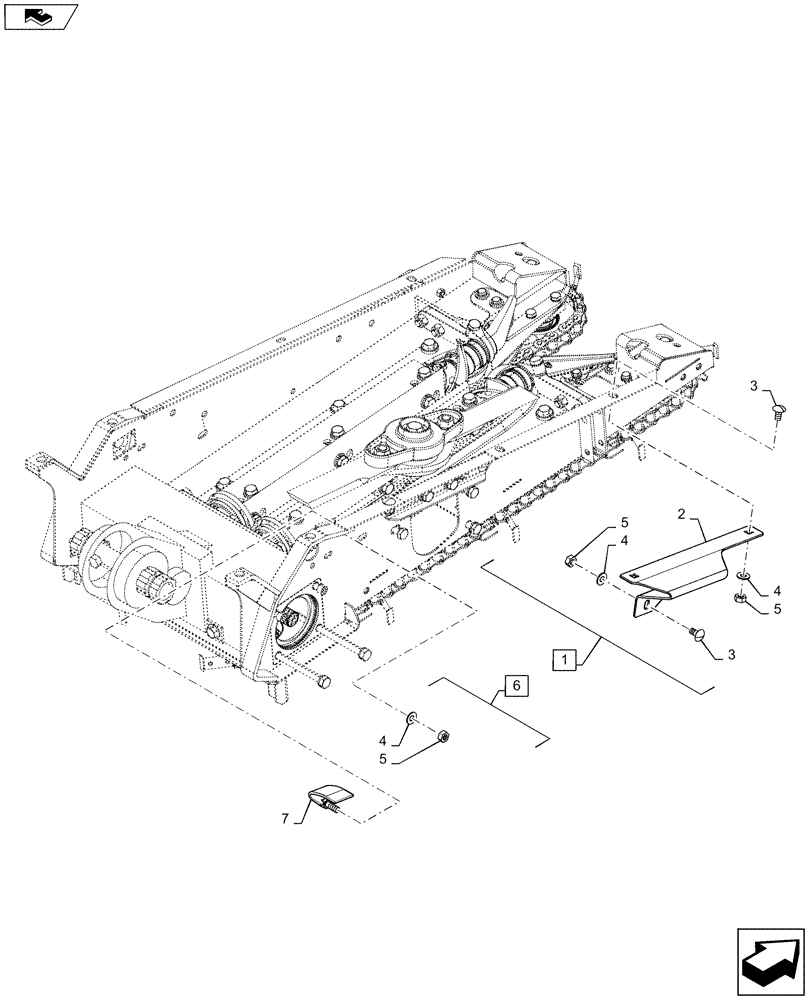

Запчасти Case IH 4406-30 (58.130.AD[03]) - ROW UNIT FRAME, PROTECTION SHIELDS (58) - ATTACHMENTS/HEADERS

1

NSS

NOT SOLD SEPARAT

Frame, Row Unit Front Shield, Incl 2 - 5

5шт.

1

NSS

NOT SOLD SEPARAT

Frame, Row Unit Front Shield, Incl 2 - 5

7шт.

2

84347084

SHIELD

1шт.

3

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

5

100016

NUT,M10 x 1.5, Cl 8

3шт.

6

NSS

NOT SOLD SEPARAT

Frame, Row Unit Rear Shield, Incl 7, 4 - 5

6шт.

6

NSS

NOT SOLD SEPARAT

Frame, Row Unit Rear Shield, Incl 7, 4 - 5

8шт.

7

84352162

SHIELD

1шт.
