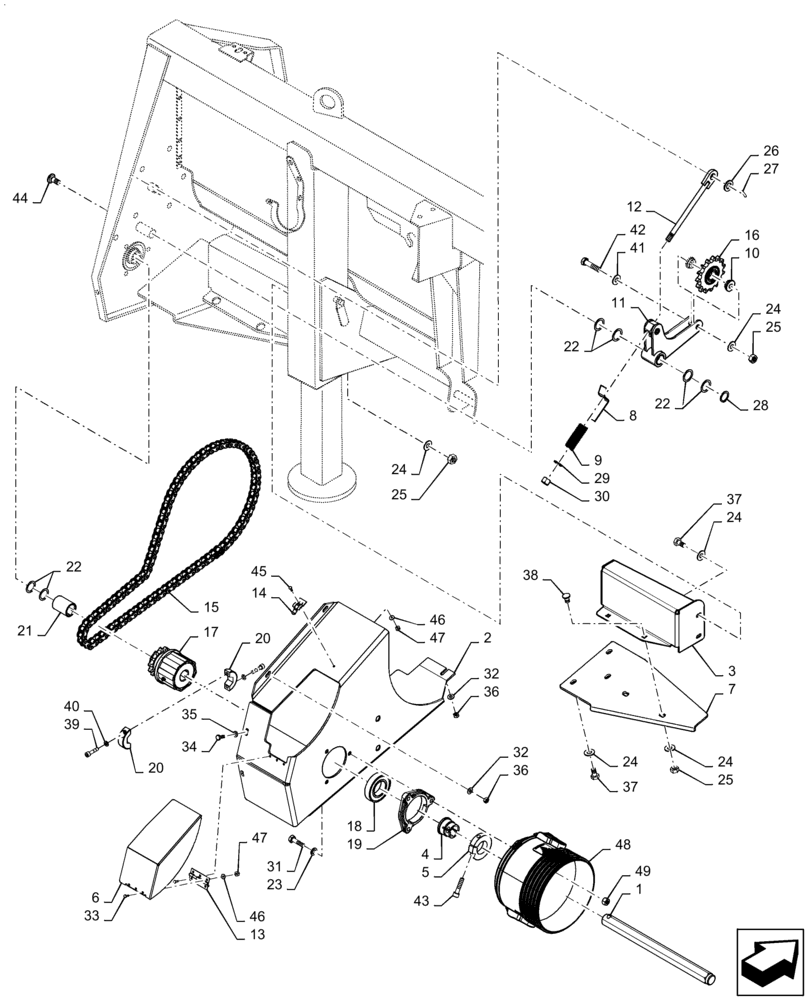

Запчасти Case IH 4406-30 (58.100.AH[02]) - DRIVE, HEADER, ASSY, REAR (58) - ATTACHMENTS/HEADERS

1

47407475

SHAFT

Jackshaft

1шт.

2

47407633

SHIELD

Shield, Red

1шт.

3

47407650

BRACKET

Bracket, LH PTO Support

1шт.

4

87750436

BUSHING

Hex

1шт.

5

87750435

LOCKING RING

Jackshaft

1шт.

6

87520647

COVER

LH

1шт.

7

47407662

BRACKET

Bracket, LH, PTO Support

1шт.

8

84989032

INDICATOR

Plated

1шт.

9

9817602

SPRING

Compression

1шт.

10

84561546

SPACER,13mm ID x 30mm OD x 10.5mm L

Sprocket

2шт.

11

84977643

IDLER LEVER

Arm

1шт.

12

84977640

THREADED ROD

Eyebolt

1шт.

13

350083

HINGE

LH Plate

1шт.

14

47325

CLIP

Plate Closing

1шт.

15

84559624

CHAIN,#60, 94 Links x 19.05mm = 1790.7mm

1шт.

16

84980926

SPROCKET

Drive

1шт.

17

84568959

CLUTCH

Chain

1шт.

18

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

19

300019980

SUPPORT

Bearing Housing

1шт.

20

84977051

HALF-SHELL

Clamp

2шт.

21

322525550

SLEEVE

Bushing

1шт.

22

419854

WASHER,26mm ID x 35mm OD x 1mm Thk

6шт.

23

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

3шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

25

9706685

NUT,M12 x 1.75, Cl 8

5шт.

26

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

27

130045

PIN,5mm OD x 26mm L, Slotted

1шт.

28

370002

CIRCLIP,M25, External

2шт.

29

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

30

412126

NUT,M12 x 1.75

1шт.

31

86637969

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

32

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

33

44334

SCREW,Cross Pan Hd, M4 x 12

3шт.

34

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

35

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

36

9706690

NUT,M8 x 1.25, Cl 8

5шт.

37

120120

BOLT,Hex, M12 x 30mm, Cl 8.8, Full Thd

7шт.

38

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

39

86531614

HEX SOC SCREW,M8 x 35mm, Cl 12.9

2шт.

40

80681

LOCK WASHER,5/16"

2шт.

41

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

42

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

43

14420531

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 10.9

1шт.

44

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

45

86585706

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

4шт.

46

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

7шт.

47

100012

NUT,M4 x 0.7, Cl 8

7шт.

48

47581515

SHIELD

Cone

1шт.

49

18711711

NUT,M12 x 1.25, Cl 8

Hex, M12 x 1.25

3шт.
