Запчасти Case IH 430WN (F-03) - FEEDER FRAME, LIFT, STAND AND FEED CONVEYOR (58) - ATTACHMENTS/HEADERS

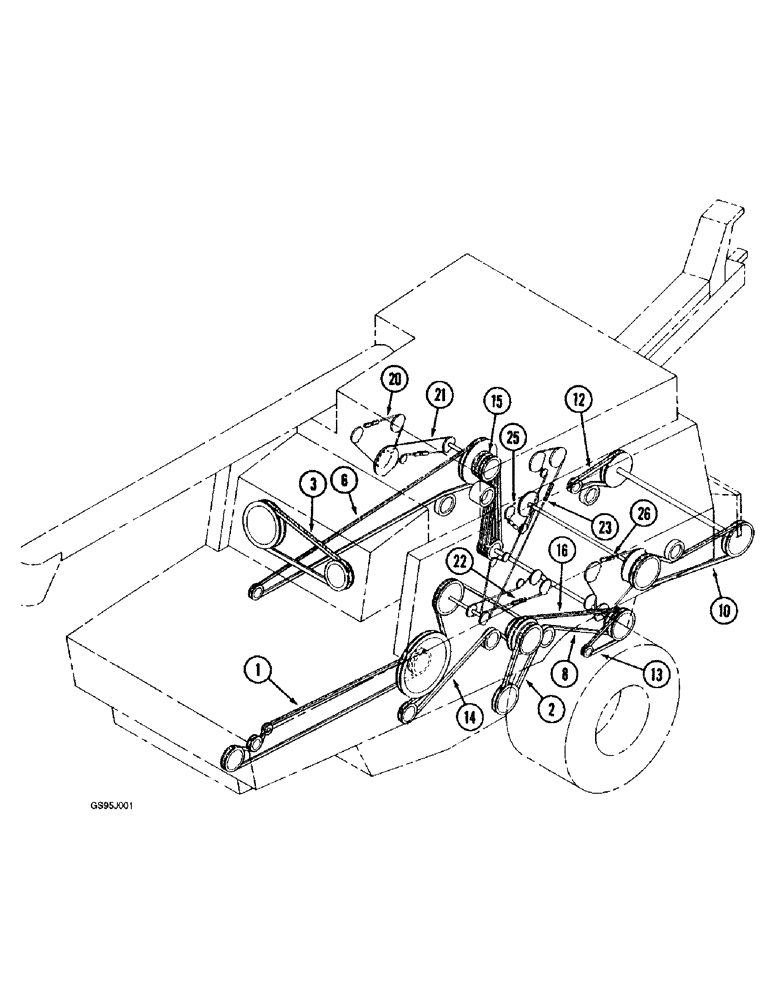

Схема запчастей Case IH 430WN - (F-03) - FEEDER FRAME, LIFT, STAND AND FEED CONVEYOR (58) - ATTACHMENTS/HEADERS
26
2
22
14
13
8
6
10
21
16
3
1
15
25
12
20
23

Артикул

Название

Примечание

Количество

1

938931R91

FRAME ASSY, feeder extension

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

12шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

2

589305R11

EXTENSION ASSY, feeder frame bottom, 429WN corn head

1шт.

2

589229R11

EXTENSION ASSY, feeder frame bottom, 430WN corn head

1шт.

3

589386R1

ROD

feeder frame bottom extension hinge, 429WN corn head

1шт.

3

589528R1

ROD, feeder frame bottom extension hinge, 430WN corn head

1шт.

4

938927R91

SECTION ASSY, feeder cover

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16-18 x 1/2 hex-hd mach

4шт.

17447R1

BOLT

7/16-18 x 1-1/4 hex-hd mach

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

6шт.

NLS

NO LONGER SERVICED

7/16-14 hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

5

938974R91

BRACKET ASSY, feeder frame brg LH, 430 corn head

1шт.

5

938975R91

BRACKET ASSY, feeder frame brg RH, 430 corn head

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

8шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

4шт.

17627R1

BOLT

1/2 x 3 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

10шт.

102637

NUT,1/2"-13, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

628734R91

HOUSING ASSY, pivot shaft feeder LH, 429WN corn head

1шт.

6

628735R91

HOUSING ASSY, pivot shaft feeder RH, 429WN corn head

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z no 3 plow

12шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4 C-Z no 3. plow

6шт.

120377

NUT,3/8" - 16, Gr 5

18шт.

104280

RIVET, 3/8 x 7/8 small F-HD solid

4шт.

104282

RIVET, 3/8 x 1-1/8 small F-HD solid

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.

7

938965R91

EXTENSION ASSY, main frame LH, 30 inch row spacing

1шт.

7

150220C91

EXTENSION ASSY, main frame LH, 36, 38 and 40 inch row spacing

1шт.

7

938966R91

EXTENSION ASSY, main frame RH, 30 inch row spacing

1шт.

7

150221C91

EXTENSION ASSY, main frame RH, 36, 38 and 40 inch row spacing

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

2шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

12шт.

102635

NUT,3/8"-16, G5

2шт.

102637

NUT,1/2"-13, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

8

152528C1

SHIELD, feeder shaft center

2шт.

14986R1

BOLT, 5/16-18 x 1/2 short sq-nk crg

12шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

12шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

9

589573R92

STAND ASSY

2шт.

10

589577R91

HOLDER ASSY, stand RH

1шт.

10

589576R91

HOLDER ASSY, stand LH

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

6шт.

102637

NUT,1/2"-13, G5

6шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

11

935857R1

SHAFT, feeder conveyor, 429WN corn head

1шт.

11

653861R1

SHAFT, feeder conveyor, 430WN corn head

1шт.

12

256557R91

BEARING

ASSY, feed conveyor shaft ball, optional for brg assy 585497R91

2шт.

12

585497R91

BEARING

ASSY, feed conveyor shaft ball, optional for brg assy 256557R91

2шт.

13

557113R11

COLLAR

W/SET SCREW LKG, for use w/brg assy 256557R91

2шт.

13

585498R11

COLLAR

W/SET SCREW LKG, for use w/brg assy 585497R91

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup pt set

2шт.

14

937243R1

SRROCKET, feed conveyor drive 11T

3шт.

15

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib

3шт.

16

589382R1

SPROCKET, main drive 29T

1шт.

17

589379R91

HUB

HOLDER ASSY, feeder conveyor drive

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

V4941/2

PIN

5/16 x 2 std hd

1шт.

18

88745

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

KEY, 5/16 x 2-1/8 Woodruff 28

1шт.

19

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

20

589381R1

RETAINER, feed conveyor drive slip clutch

1шт.

19836R1

BOLT, 1/2-13 x 3-3/4 dld sq-nk crg

4шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 C-Z slt-hex

4шт.

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.

21

935867R1

SPROCKET, feeder driven 38T

1шт.

17625R1

BOLT, 3/8-16 x 3 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

589384R11

HUB ASSY, feeder driven, includes ref no. 24

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS 3/4 str lub

1шт.

24

18519K

BUSHING

feeder driven sprocket hub

1шт.

25

938990R1

SHAFT, feeder conveyor drum

1шт.

26

589363R91

DRUM ASSY, feeder conveyor

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

27

629958R1

FLANGE

conveyor drum brg

2шт.

28

564991R91

BEARING

ASSY, conveyor drum ball

2шт.

29

658006R11

COLLAR

W/SET SCREW LKG

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc hd cup pt set

2шт.

30

938985R91

CHAIN W/SLATS, feeder conveyor

1шт.

31

589370R1

SLAT, feeder conveyor chain

32шт.

104249

RIVET, 1/4 x 1/2 small F-HD solid FH, 1/4" x 1/2"

1шт.

32

587371R92

NO LONGER SERVICED

LINK, connecting

1шт.

33

589656R91

LINK

ASSY, conveyor chain attaching

1шт.

34

152520C1

SHIELD, feeder shaft end

2шт.

14986R1

BOLT, 5/16-18 x 1/2 sq nk crg

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

35

938977R91

BRACKET ASSY, feed conveyor drum support LH

1шт.

35

938978R91

BRACKET ASSY, feed conveyor drum support RH

1шт.

14995R1

BOLT

3/8-16NC x 3/4 sq-nk crg

8шт.

102635

NUT,3/8"-16, G5

8шт.

NLS

NO LONGER SERVICED

7/16-14

6шт.

461189R2

SCREW, 7/16-14 x 3-3/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

36

311

SPRING

slip clutch

4шт.

37

H39274

SPACER,1/2" Pipe x 1 1/2"

conveyor drum adjusting bolt

2шт.

38

PO144

SPRING

drum adjusting bolt

2шт.

191268

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

SCREW, 1/2-13 x 6-1/2 hex hd cap

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 ESNA stop

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

8шт.

39

938959R92

FRAME ASSY, main

1шт.

40

939051R1

SUPPORT, stalk roll frame brace

2шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

3шт.

NLS

NO LONGER SERVICED

7/16-14 hex

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

41

938900R94

SHELL ASSY, feeder

1шт.

17427R1

BOLT, 7/16-14 x 1 hex-hd mach

2шт.

17447R1

BOLT

7/16-14 x 1-1/4 hex-hd mach

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

42

152525C91

CHANNEL ASSY, feeder shaft shield

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

43

152529C91

SHIELD ASSY, feeder conveyor chain

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

44

169140C1

ANGLE, feeder side, 430WN, for use 938900R94 shell

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.
