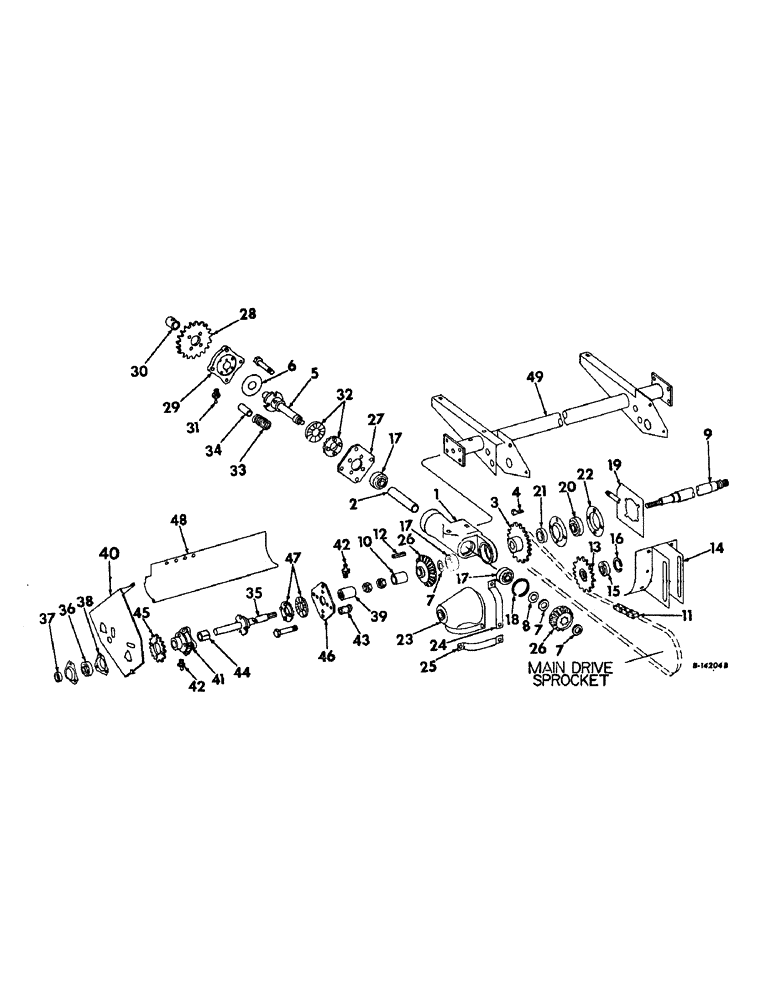

Запчасти Case IH 430N (D-08) - MAIN DRIVE (58) - ATTACHMENTS/HEADERS

1

589770R1

CASE, stalk roll drive gear

2шт.

BOLT, 5/8-11 x 4 sq-nk crg

4шт.

NUT, 5/8-11 hex

4шт.

WASHER, 5/8 med lock

4шт.

2

589771R1

SPACER, gear case

2шт.

3

589772R91

SPROCKET ASSY, main driven 21T

1шт.

4

Q1497

KEY,Gib, 3/8" Sq x 2"

main driven sprocket gib

1шт.

5

589533R91

SHAFT ASSY, main roll drive

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

PIN, 1/8 x 1-1/2 cot

2шт.

WASHER, 1-1/4 med lock

2шт.

585556R1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

21/32 x 1-1/2 x 3/16

2шт.

6

628611R1

WASHER, stalk roll drive shaft

2шт.

7

589782R1

THRUST WASHER

stalk roll drive shaft

8шт.

8

589783R1

SHIM, stalk roll drive bevel gear

4шт.

9

589776R1

JACKSHAFT, center section

1шт.

589780R1

NUT, 1-1/4-12 hex jam

4шт.

IH219779

NUT

1-1/2-12 hex jam

1шт.

172208C1

NUT, 1-1/2-12 gripco lock

1шт.

10

589536R1

SPACER, jackshaft

2шт.

11

CHAIN, main drive roller, order 133 links of 1 in pitch std roller chain from a 10 ft roll marked 1794D, one offset connecting link 1398D and one connecting links 1397D

1шт.

12

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

13

589538R91

SPROCKET ASSY.

SPROCKET ASSY, main drive idler 17T

1шт.

14

589540R91

SUPPORT ASSY, idler sprocket

1шт.

BOLT, 5/16-18 x 3/4 short-sq-nk crg

6шт.

NUT, 5/16-18 hex

6шт.

NUT, 7/8-9 hex

1шт.

SCREW, 7/8-9 x 4 hex-hd cap

1шт.

WASHER, 5/16 med lock

6шт.

WASHER, 7/8 med lock

1шт.

557270R1

WASHER

29/32 x 1-1/4 x 11 ga

9шт.

615191R1

WASHER

29/32 x 1-1/4 x 16 ga

3шт.

550999R1

WASHER

29/32 x 2 x 11 ga

3шт.

15

580095R91

BALL BEARING

BEARING, idler sprocket bearing

1шт.

16

555602R1

RING

main and feeder drive tightener snap

1шт.

17

587015R91

BALL BEARING

main stalk roll drive

6шт.

18

45650D

RETAINER

RING, stalk roll drive shaft snap

2шт.

19

589777R91

BRACKET ASSY, main drive shaft brg

1шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-10 slt hex

1шт.

PIN, 1/8 x 1-3/4 cot

1шт.

20

664175R91

BALL BEARING

BEARING, main drive shaft ball

1шт.

21

455112R11

COLLAR

W/SET SCREW LKG

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt set

1шт.

22

663562R1

FLANGE

main drive shaft brg

2шт.

BOLT, 1/2-13 x 1-1/4 short-sq-nk crg

4шт.

NUT, 1/2-13 hex

4шт.

WASHER, 1/2 med lock

4шт.

23

631434R1

COVER, gear case

2шт.

24

631435R1

STRAP, gear case cover lower

4шт.

BOLT, 5/16-18 x 3/4 hex-hd mach

2шт.

NUT, 5/16-18 hex

2шт.

WASHER, 5/16 med lock

2шт.

25

631436R1

STRAP, gear case cover upper

4шт.

BOLT, 5/16-18 x 3/4 hex-hd mach

6шт.

NUT, 5/16-18 hex

2шт.

WASHER, 5/16 med lock

6шт.

26

629335R91

GEAR SET, main drive bevel, 589846R1 and 589547R1 matched

2шт.

27

629870R1

RETAINER

FLANGE, stalk roll drive slip clutch

2шт.

28

575915R2

SPROCKET, stalk roll drive, 25T

2шт.

29

575787R21

HOUSING W/BUSHING ASSY, stalk roll drive slip clutch

2шт.

BOLT, 3/8-16 x 1-1/2 no. 3 plow

8шт.

587423R1

BOLT

1/2-13 x 4-1/4 dld hex-hd mach

8шт.

NUT, 3/8-16 hex

8шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13 slt hex

8шт.

PIN, 3/32 x 1 cot

8шт.

WASHER, 3/8 med lock

8шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

8шт.

30

575789R1

BUSHING

slip clutch housing

2шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS 3/4 str lub

2шт.

32

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

4шт.

33

584007R1

SPRING

stalk roll unit slip clutch

8шт.

34

631581R1

SPACER

slip clutch spring

8шт.

35

939042R91

SHAFT ASSY, main drive outer

2шт.

36

455960R91

BALL BEARING

BEARING, main drive shaft outer ball

2шт.

37

557115R11

COLLAR

COLLAR W/SET SCREW LKG

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 hex-soc-hd cup-pt set

2шт.

38

571425R1

FLANGED BEARING

main drive shaft outer brg

4шт.

BOLT, 3/8-16 x 1 short-sq-nk crg

6шт.

NUT, 3/8-16 hex

6шт.

WASHER, 3/8 med lock

6шт.

39

589690R1

COUPLING

main drive shaft

2шт.

PIN, 1/8 x 3/4 cot

2шт.

Q1250

PIN

1/4 x 1-7/8 std-hd

2шт.

40

939030R91

BRACKET ASSY, gatherer drive LH

1шт.

40

939031R91

BRACKET ASSY, gatherer drive RH

1шт.

BOLT, 3/8-16 x 1-1/4 short-sq-nk crg

2шт.

BOLT, 1/2-13 x 1-1/4 short-sq-nk crg

4шт.

BOLT, 3/8-16 x 1 hex-hd mach

4шт.

NUT, 3/8-16 hex

6шт.

NUT, 1/2-13 hex

4шт.

WASHER, 3/8 med lock

6шт.

WASHER, 1/2 med lock

4шт.

41

589471R91

RETAINER ASSY, gatherer slip clutch

2шт.

587423R1

BOLT

1/2-13 x 4-1/4 hex-hd mach

8шт.

587423R1

BOLT

1/2-13 x 4-1/4 hex-hd mach

8шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13 slt hex

8шт.

PIN, 3/32 x 1 cot

8шт.

Q5035

WASHER

17/32 x 1 x 16 ga

8шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS 3/4 str lub

4шт.

43

NLS

NO LONGER SERVICED

slip clutch

8шт.

44

574294R1

BUSHING

slip clutch ratchet

2шт.

45

587228R1

SPROCKET, gatherer drive, 18T

1шт.

BOLT, 3/8-16 x 1 hex-hd mach

8шт.

WASHER, 3/8 med lock

8шт.

46

575792R1

RETAINER, gatherer slip clutch

2шт.

47

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

4шт.

48

939046R1

SHIELD, gatherer slip clutch LH

1шт.

48

939047R1

SHIELD, gatherer slip clutch RH

1шт.

BOLT, 5/16-18 x 3/4 short-sq-nk crg

2шт.

BOLT, 3/8-16 x 1 short-sq-nk crg

2шт.

BOLT, 3/8-16 x 3/4 hex-hd mach

2шт.

NUT, 5/16-18 hex

4шт.

NUT, 3/8-16 hex

4шт.

WASHER, 5/16 med lock

2шт.

WASHER, 3/8 med lock

4шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

49

939049R91

PIPE ASSY, torque, 430N corn head

1шт.

49

939048R91

PIPE ASSY, torque, 429N corn head

1шт.

BOLT, 1/2-13 x 1-1/4 short-sq-nk crg, 430N corn head

1шт.

BOLT, 5/8-11 x 4 hex-hd mach

4шт.

BOLT, 1/2-13 x 1-1/2 short-sq-nk crg, 429 corn head

4шт.

NUT, 1/2-13 hex

8шт.

NUT, 5/8-11 hex

4шт.

SCREW, 1/2-13 x 1-1/4 hex-hd cap

16шт.

WASHER, 1/2 med lock

16шт.

WASHER, 5/8 med lock

4шт.
