(B-24) - GATHERER EXTENSION ATTACHMENT

Запчасти Case IH 430 (B-24) - GATHERER EXTENSION ATTACHMENT (58) - ATTACHMENTS/HEADERS

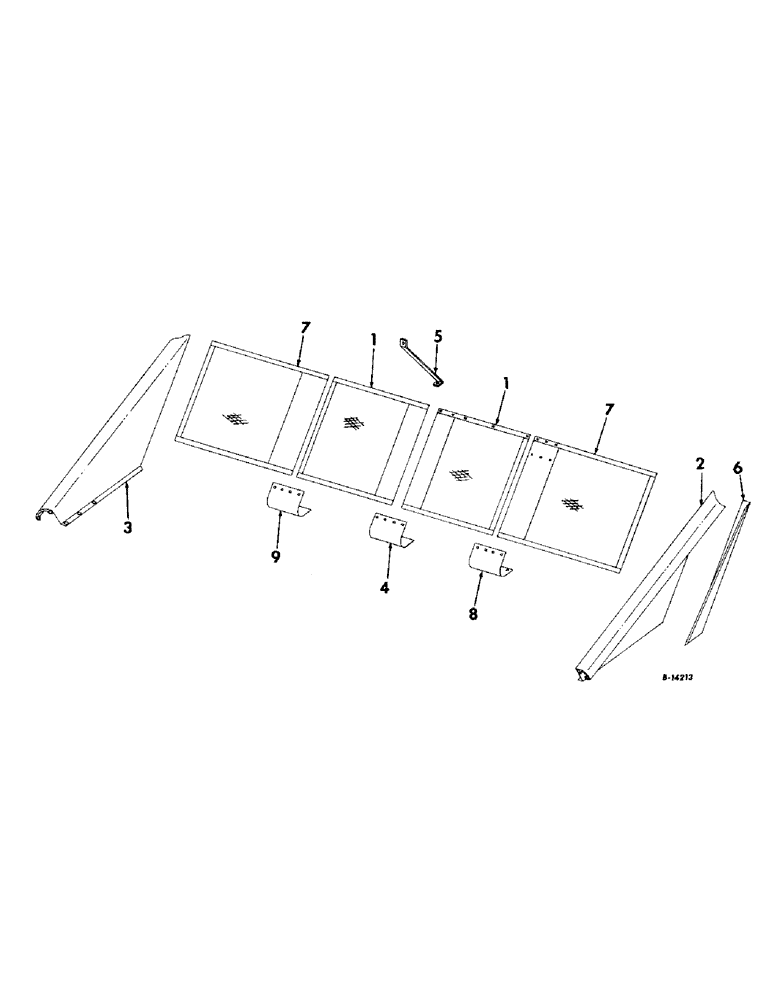

Схема запчастей Case IH 430 - (B-24) - GATHERER EXTENSION ATTACHMENT (58) - ATTACHMENTS/HEADERS
2
3
6
5
1
8
4
7
9
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

654980R91

SCREEN ASSY, gatherer extension

2шт.

BOLT, 5/16-18 x 3/4 CD or zn-pltd short-sq-nk crg

20шт.

NUT, 5/16-18 CD or zn-pltd hex

20шт.

WASHER, 5/16 CD or zn-pltd med lock

20шт.

2

632410R91

SHIELD ASSY, gatherer extension LH, 403 combine serial no. 7223 and below, 503 combine serial no. 2430 and below

1шт.

2

151370C91

SHIELD ASSY, gather extension LH, 403 combine serial no. 7224 and above, 503 combine serial no. 7224 and above

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

12шт.

3

632411R91

SHIELD ASSY, gatherer extension RH, 403 combine serial no. 7223 and below, 503 combine serial no. 2430 and below

1шт.

3

151371C91

SHIELD ASSY, gather extension RH, 403 combine serial no. 7224 and above, 503 combine serial no. 7224 and above

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

12шт.

4

632416R1

BRACE, gatherer extension center, 403 combine serial no. 7223 and below, 503 combine serial no. 2430 and below

1шт.

4

151377C2

BRACE, gatherer extension center, 403 combine serial no. 7224 and above, 503 combine serial no. 7224 and above

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

2шт.

5

632417R1

BRACE, gatherer extension, 403 combine serial no. 7223 and below, 503 combine serial no. 2430 and below

2шт.

5

151376C1

BRACE, gatherer extension, 403 combine serial no. 7224 and above, 503 combine serial no. 7224 and above

2шт.

BOLT, 5/16-18 x 3/4 CD or zn-pltd short-sq-nk crg

4шт.

BOLT, 5/16-18 x 1-1/2 CD or zn-pltd short sq-nk crg

4шт.

NUT, 5/16-18 CD or zn-pltd hex

12шт.

WASHER, 5/16 CD or zn-pltd med lock

12шт.

6

653870R1

REINFORCEMENT, gatherer extension shield LH, 403 combine serial no. 7223 and below, 503 combine serial no. 2430 and below

1шт.

6

151378C1

REINFORCEMENT, gatherer extension shield LH, 403 combine serial no. 7224 and above, 503 combine serial no. 7224 and above

1шт.

6

653871R1

REINFORCEMENT, gatherer extension shield RH, 403 combine serial no. 7223 and below, 503 combine serial no. 2430 and below

1шт.

6

151379C1

REINFORCEMENT, gatherer extension shield RH, 403 combine serial no. 7224 and above, 503 combine serial no. 7224 and above

1шт.

7

632405R91

SCREEN ASSY, gatherer extension outer

2шт.

BOLT, 5/16-18 x 3/4 CD or zn-pltd short-sq-nk crg

16шт.

NUT, 5/16-18 CD or zn-pltd hex

16шт.

WASHER, 5/16 CD or zn-pltd med lock

16шт.

8

654984R1

BRACE, gatherer extension LH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

2шт.

9

654985R1

BRACE, gatherer extension RH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

2шт.
