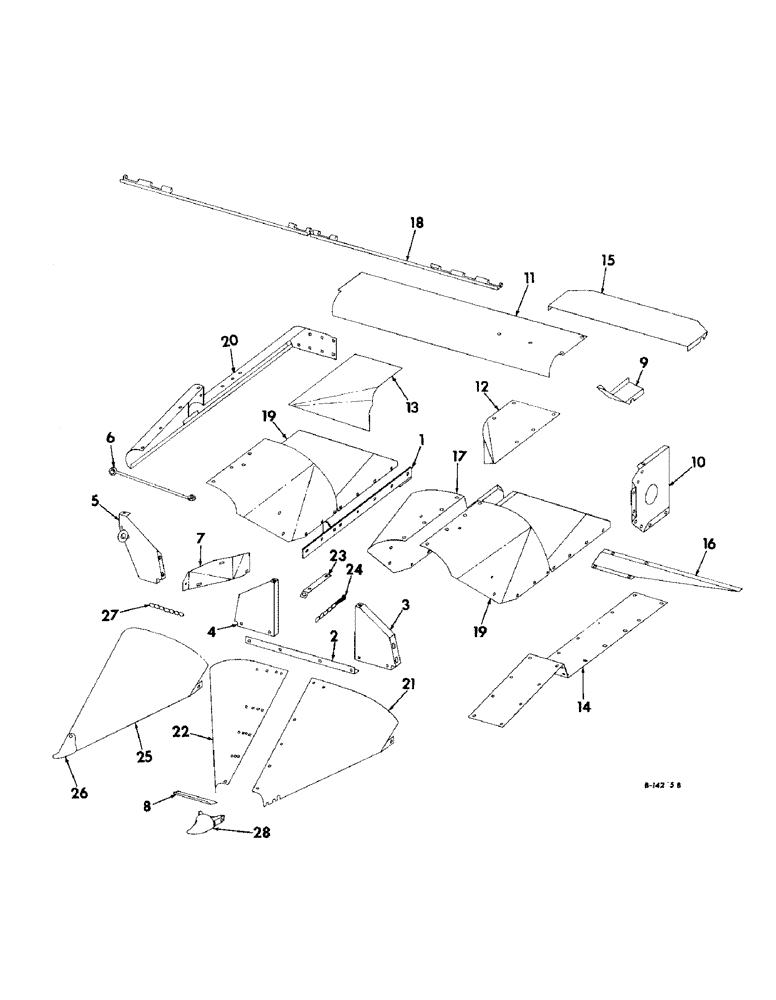

Запчасти Case IH 430 (B-18) - GATHERER SHIELDS AND DIVIDER (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
632216R91
SUPPORT ASSY, gatherer shield LH
4шт.
1
632217R91
SUPPORT ASSY, gatherer shield RH
4шт.
BOLT, 3/8-16 x 2-1/2 sq-nk crg
16шт.
BOLT, 1/2-13 x 1-1/4 short-sq-nk crg
8шт.
NUT, 3/8-16 hex
16шт.
NUT, 1/2-13 hex
4шт.
WASHER, 3/8 med lock
16шт.
WASHER, 1/2 med lock
8шт.
2
589487R1
ANGLE, gatherer bracket tie
1шт.
2
589728R1
ANGLE, outer gatherer bracket tie, 36 in row width
2шт.
2
935775R1
ANGLE, outer gatherer bracket tie, 38 in row width
2шт.
2
935776R1
ANGLE, outer gatherer bracket tie, 40 in row width
2шт.
BOLT, 3/8-16 x 3/4 short-sq-nk crg
8шт.
NUT, 3/8-16 hex
8шт.
632225R1
LOCK NUT
5/16-18 whiz hex lock
178шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 slt-truss-hd
178шт.
WASHER, 3/8 med lock
8шт.
3
589888R1
BRACKET, inner gatherer shield RH
3шт.
BOLT,5/16-18 x 3/4 short sq-nk crg
6шт.
NUT, 5/16-18 hex
6шт.
-,
WASHER, 5/16 med lock
6шт.
4
589887R1
BRACKET, inner gatherer shield LH
3шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
6шт.
NUT, 5/16-18 hex
6шт.
WASHER, 5/16 med lock
6шт.
5
589889R91
BRACKET ASSY, outer gatherer shield LH
1шт.
5
589890R91
BRACKET ASSY, outer gatherer shield RH
1шт.
BOLT, 3/8-16 x 3/4 short-sq-nk crg
4шт.
NUT, 3/8-16 hex
4шт.
WASHER, 3/8 med lock
4шт.
6
587002R1
BRACE, outer gatherer shield support LH
1шт.
6
587003R1
BRACE, outer gatherer shield support RH
1шт.
BOLT, 3/8-16 x 1-1/4 short-sq-nk crg
4шт.
NUT, 3/8-16 hex
4шт.
WASHER, 3/8 med lock
4шт.
7
632220R2
PLATE, divider hinge LH
4шт.
7
632221R2
PLATE, divider hinge RH
4шт.
BOLT, 3/8-16 x 3/4 short-sq-nk crg
4шт.
BOLT, 3/8-16 x 1-1/4 short-sq-nk crg
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn-pltd flange whiz lock
4шт.
NUT, 3/8-16 hex
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD- or zn-pltd slt-truss-hd whiz lock
4шт.
WASHER, 3/8 med lock
8шт.
8
626604R1
BRACE, divider
1шт.
BOLT, 3/8-16 x 3/4 short-sq-nk crg
6шт.
NUT, 3/8-16 hex
6шт.
WASHER, 3/8 med lock
6шт.
9
654849R1
BOTTOM, beater outer LH
2шт.
9
654850R1
BOTTOM, beater outer RH
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn-pltd flange whiz lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock
8шт.
10
634467R1
SIDE, beater LH
2шт.
10
634468R1
SIDE, beater RH
2шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
16шт.
NUT, 5/16-18 hex
16шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn-pltd flange whiz lock
16шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock
16шт.
WASHER, 5/16 med lock
16шт.
11
935632R91
COVER ASSY, beater, 36 in row width
2шт.
11
935633R91
COVER ASSY, beater, 38 in row width
2шт.
11
935634R91
COVER ASSY, beater, 40 in row width
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn pltd flange whiz lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD or zn pltd slt-truss-hd whiz lock
8шт.
12
632223R1
EXTENSION, beater cover LH
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn pltd flange whiz lock
14шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD or zn pltd slt-truss-hd whiz lock
14шт.
13
632224R1
EXTENSION, beater cover RH
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn pltd flange whiz lock
14шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD or zn pltd slt-truss-hd whiz lock
14шт.
14
654976R11
FILLER ASSY, inner gatherer shield, 40 in row width
2шт.
14
654977R11
FILLER ASSY, inner gatherer shield, 38 in row width
2шт.
14
659978R11
FILLER ASSY, inner gatherer shield, 36 in row width
2шт.
14
654893R1
FILLER, center gatherer shield
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn pltd flange whiz lock
28шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD or zn pltd slt-truss-hd whiz lock
28шт.
15
654961R1
BOTTOM, beater, 40 in row width
2шт.
15
654962R1
BOTTOM, beater, 38 in row width
2шт.
15
654963R1
BOTTOM, beater, 36 in row width
2шт.
BOLT, 5/16-18 x 1 short-sq-nk crg
2шт.
NUT, 5/16-18 hex
2шт.
WASHER, 5/16 med lock
2шт.
16
654970R1
EXTENSION, beater bottom, 40 in row width
2шт.
16
654971R1
EXTENSION, beater bottom, 38 in row width
2шт.
16
654972R1
EXTENSION, beater bottom, 36 in row width
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz hex lock
42шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 C-Z slt-truss-hd
42шт.
17
654311R91
SHIELD ASSY, gatherer LH
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn pltd flange whiz lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD or zn pltd slt-truss-hd whiz lock
8шт.
18
589928R1
HINGE, auger door LH
1шт.
18
589929R1
HINGE, auger door RH
1шт.
18
589359R1
HINGE, auger door center
1шт.
19
654312R91
SHIELD ASSY, gatherer RH
4шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
18шт.
NUT, 5/16-18 hex
18шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn pltd flange whiz lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD or zn pltd slt-truss-hd whiz lock
8шт.
WASHER, 5/16 med lock
18шт.
20
589912R91
EXTENSION ASSY, outer gatherer shield left
1шт.
20
589913R91
EXTENSION ASSY, outer gatherer shield RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn-pltd flange whiz lock
24шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock
24шт.
21
589504R91
DIVIDER ASSY.
DIVIDER ASSY, center LH
3шт.
BOLT, 1/2-13 x 2 sq-nk crg
3шт.
231-1408
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 ESNA stop
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn-pltd flange whiz lock
15шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD or zn pltd slt-truss-hd whiz lock
15шт.
22
589505R91
DIVIDER ASSY.
DIVIDER ASSY, center RH
3шт.
BOLT, 1/2-13 x 2 sq-nk crg
3шт.
231-1408
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 ESNA stop
3шт.
23
589508R1
BRACE, center divider adjusting chain
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn-pltd flange whiz lock
6шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd whiz lock
6шт.
24
589509R91
CHAIN, center divider adjusting coil
3шт.
BOLT, 3/8-16 x 1 short-sq-nk crg
3шт.
NUT, 3/8-16 hex
3шт.
WASHER, 3/8 med lock
3шт.
Q1597
WASHER
13/32 x 3/4 x 16 ga
3шт.
25
589510R91
NO LONGER SERVICED
DIVIDER W/POINT ASSY, outer LH
1шт.
25
589511R91
DIVIDER ASSY.
DIVIDER W/POINT ASSY, outer RH
1шт.
BOLT, 1/2-13 x 6-1/2 sq-nk crg
4шт.
231-1408
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 ESNA stop
4шт.
26
U911
POINT, outer divider LH
1шт.
26
U912
END ASSY.
POINT, outer divider RH
1шт.
BOLT, 3/8-16 x 2-1/4 sq-nk crg
4шт.
NUT, 1/4-20 hex
2шт.
NUT, 3/8-16 hex
4шт.
113991
BUSHING
1/4-20 x 3/4 slt-f-hd mach
2шт.
WASHER, 1/4 med lock
2шт.
WASHER, 3/8 med lock
4шт.
27
589522R91
CHAIN, outer divider adjusting coil
2шт.
BOLT, 3/8-16 x 1 short-sq-nk crg
2шт.
NUT, 3/8-16 hex
2шт.
WASHER, 3/8 med lock
2шт.
Q1505
WASHER
13/32 x 1 x 16 ga
2шт.
28
UB1526
POINT, center divider
3шт.
BOLT, 3/8-16 x 1-1/4 short sq-nk crg
12шт.
NUT, 3/8-16 hex
12шт.
WASHER, 3/8 med lock
12шт.
