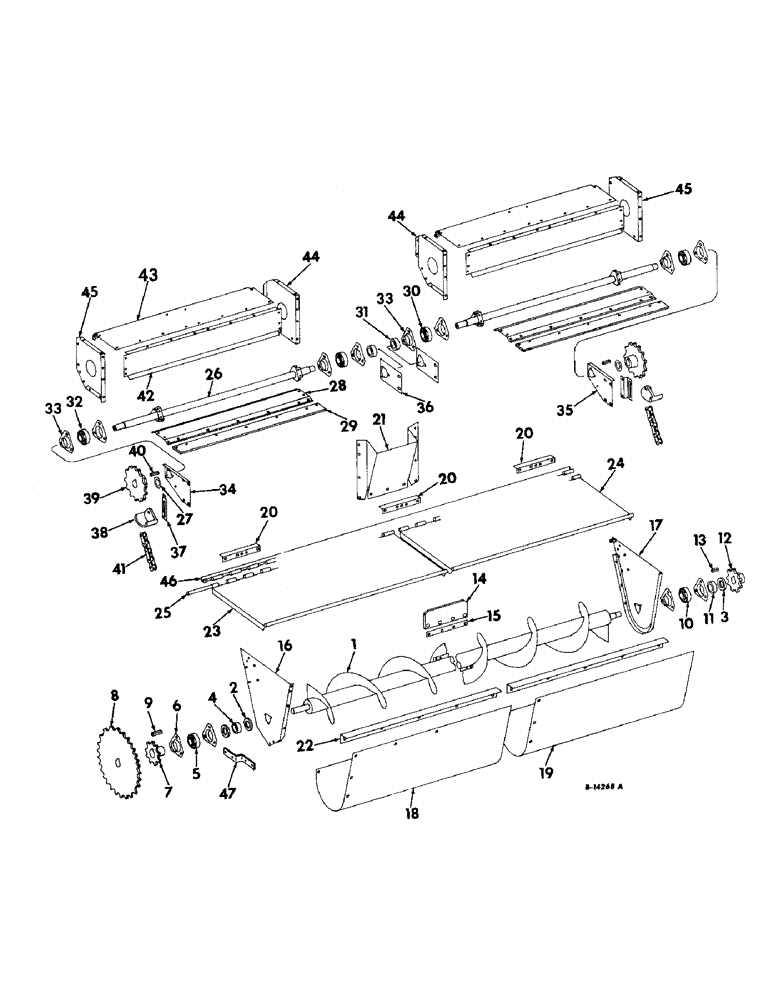

Запчасти Case IH 429N (D-05) - AUGER, BEATER AND DRIVE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
938994R91
AUGER ASSY
1шт.
SCREW, 1/2-20 x 1 hex-hd cap
2шт.
WASHER, 1/2 int-tooth lock
4шт.
WASHER, 1 med lock
1шт.
WASHER, 1-1/4 med lock
1шт.
76730H
WASHER
17/32 x 1-3/4 x 3/16
1шт.
21585D
WASHER
17/32 x 1-3/4 x 3/16
1шт.
2
632156R1
THRUST WASHER
auger LH shaft
1шт.
3
654283R1
THRUST WASHER
auger RH shaft
1шт.
4
632157R1
SPACER, auger drive shaft
1шт.
5
617668R91
BALL BEARING
auger shaft LH ball
1шт.
6
571425R1
FLANGED BEARING
auger shaft brg
4шт.
BOLT, 3/8-16 x 3/4 short-sq-nk crg
6шт.
NUT, 3/8-16 hex
6шт.
WASHER, 3/8 med lock
6шт.
7
654967R1
SPROCKET, beater driven LH, 8T
1шт.
8
935789R91
SPROCKET ASSY, auger driven, 50T
1шт.
9
577147R1
KEY
5/16 x 1-3/16 sq parallel
2шт.
10
617668R91
BALL BEARING
auger shaft ball RH
1шт.
11
557995R11
COLLAR
W/SET SCREW, auger shaft RH brg lkg
1шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 1/4-20 x 1/4 hex-soc-hd cup-pt set
1шт.
12
586359R1
SPROCKET, beater drive RH, 8T
1шт.
13
587016R1
KEY, 1/4 x 3/4 sq parallel
1шт.
14
634470R1
BAT
auger
2шт.
15
634471R1
STRAP, auger bat
2шт.
BOLT, 3/8-16 x 1-1/4 short-sq-nk crg
8шт.
NUT, 3/8-16 hex
8шт.
WASHER, 3/8 med lock
8шт.
16
939020R91
END ASSY, auger trough LH
1шт.
BOLT, 5/16-18 x 1/2 short-sq-nk crg
4шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
4шт.
NUT, 5/16-18 hex
8шт.
WASHER, 5/16 med lock
8шт.
17
939021R91
END ASSY, auger trough RH
1шт.
BOLT, 5/16-18 x 1/2 short-sq-nk crg
4шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
4шт.
NUT, 5/16-18 hex
8шт.
WASHER, 5/16 med lock
8шт.
18
939005R1
TROUGH, auger LH
1шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
6шт.
NUT, 5/16-18 hex
7шт.
84896
SCREW,Slotted Truss Hd, 5/16" - 18 x 3/4"
5/16-18 x 1 slt-truss-hd mach
1шт.
WASHER, 5/16 med lock
7шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
6шт.
19
939006R1
TROUGH, auger RH
1шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
6шт.
NUT, 5/16-18 hex
7шт.
120283
SCREW,Hex, 5/16" x 3/4", Gr 5
5/16-18 x 1 slt-truss-hd mach
1шт.
WASHER, 5/16 med lock
7шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
6шт.
20
939017R1
ANGLE, auger trough front center
3шт.
21
939015R1
SHEET, auger front center
1шт.
BOLT, 3/8-16 x 3/4 shrot-sq-nk crg
1шт.
NUT, 3/8-16 hex
1шт.
WASHER, 3/8 med lock
1шт.
22
939007R1
ANGLE, auger door
2шт.
BOLT, 5/16-18 x 1/2 short-sq-nk crg
4шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
2шт.
BOLT, 5/16-18 x 1 short-sq-nk crg
2шт.
NUT, 5/16-18 hex
8шт.
WASHER, 5/16 med lock
8шт.
23
939011R91
DOOR ASSY, LH
1шт.
24
939012R91
DOOR ASSY, RH
1шт.
25
939018R1
ROD, auger door hinge
1шт.
26
939081R91
SHAFT ASSY, beater
2шт.
SCREW, 5/16-24 x3/4 hex-hd cap
24шт.
SCREW, 1/2-20 x 7/8 hex-hd cap
2шт.
WASHER, 5/16 med lock
24шт.
WASHER, 1/2 int-tooth lock
4шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
24шт.
76730H
WASHER
17/32 x 1-1/2 x 11 ga
2шт.
WASHER, 1 med lock
2шт.
27
654283R1
THRUST WASHER
beater shaft
4шт.
28
939083R1
SECTION, beater drum
6шт.
29
939084R1
BAT, beater
6шт.
BOLT, 5/16-18 x 1-1/4 short-sq-nk crg
42шт.
NUT, 5/16-18 hex
42шт.
WASHER, 5/16 med lock
42шт.
30
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
beater shaft inner ball
2шт.
31
455102R11
COLLAR
W/SET SCREW, beater inner shaft brg lkg
2шт.
32
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
beater shaft outer ball
2шт.
33
571424R1
FLANGE
beater shaft brg
8шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
12шт.
NUT, 5/16-18 hex
12шт.
WASHER, 5/16 med lock
12шт.
34
935739R1
BRACKET, beater outer left bearing
1шт.
BOLT, 3/8-16 x 3/4 short-sq-nk crg
2шт.
NUT, 3/8-16 hex
2шт.
WASHER, 3/8 med lock
2шт.
35
935740R1
BRACKET, beater outer right bearing
1шт.
BOLT, 3/8-16 x 3/4 short-sqq-nk crg
2шт.
NUT, 3/8-16 hex
2шт.
WASHER, 3/8 med lock
2шт.
36
939026R1
BRACKET, beater bearing inner
2шт.
BOLT, 1/2-13 x 1 short-sq-nk crg
4шт.
NUT, 1/2-13 hex
4шт.
WASHER, 1/2 med lock
4шт.
31696H
WASHER, 17/32 x 1-1/2 x 16 ga
4шт.
37
632194R1
BRACKET, beater chain tightener
2шт.
BOLT, 3/8-16 x 3/4 short-sq-nk crg
4шт.
NUT, 3/8-16 hex
4шт.
WASHER, 3/8 med lock
4шт.
38
583619R1
BLOCK
beater chain tightener
1шт.
38
583620R1
BLOCK
beater chain tighter
1шт.
BOLT, 5/16-18 x 1 short-sq-nk crg
2шт.
NUT, 5/16-18 hex
2шт.
WASHER, 5/16 med lock
2шт.
39
632190R1
SPROCKET, beater driven, 13T
2шт.
40
587016R1
KEY, 1/4 x 3/4 sq parallel
2шт.
41
CHAIN, beater drive roller, order 45 links of 1-1/4 in extended pitch agricultural type roller chain from a 10-ft roll marked 569089R91 and one connecting link 587372R91
2шт.
42
939085R1
SHIELD, beater rear
2шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
8шт.
NUT, 5/16-18 hex
8шт.
WASHER, 5/16 med lock
8шт.
43
939126R91
COVER ASSY, beater
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn-pltd flange whiz lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock
8шт.
44
634467R1
SIDE, beater inner RH
1шт.
44
634468R1
SIDE, beater inner LH
1шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
8шт.
NUT, 5/16-18 hex
8шт.
WASHER, 5/16 med lock
8шт.
45
939132R1
SIDE, beater outer LH
1шт.
45
939133R1
SIDE, beater outer RH
1шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
8шт.
NUT, 5/16-18 hex
8шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn-pltd flange whiz lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1-1/2 CD or zn-pltd slt-truss-hd whiz lock
8шт.
WASHER, 5/16 med lock
8шт.
46
939146R91
HINGE, auger door
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn-pltd flange whiz lock
15шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock
15шт.
47
939025R1
BRACKET, auger trough end support
2шт.
BOLT, 3/8-16 x 1 short-sq-nk crg
4шт.
BOLT, 3/8-16 x 3/4 hex-hd mach
4шт.
NUT, 3/8-16 hex
8шт.
WASHER, 3/8 med lock
8шт.
Выбрано товаров: 138
