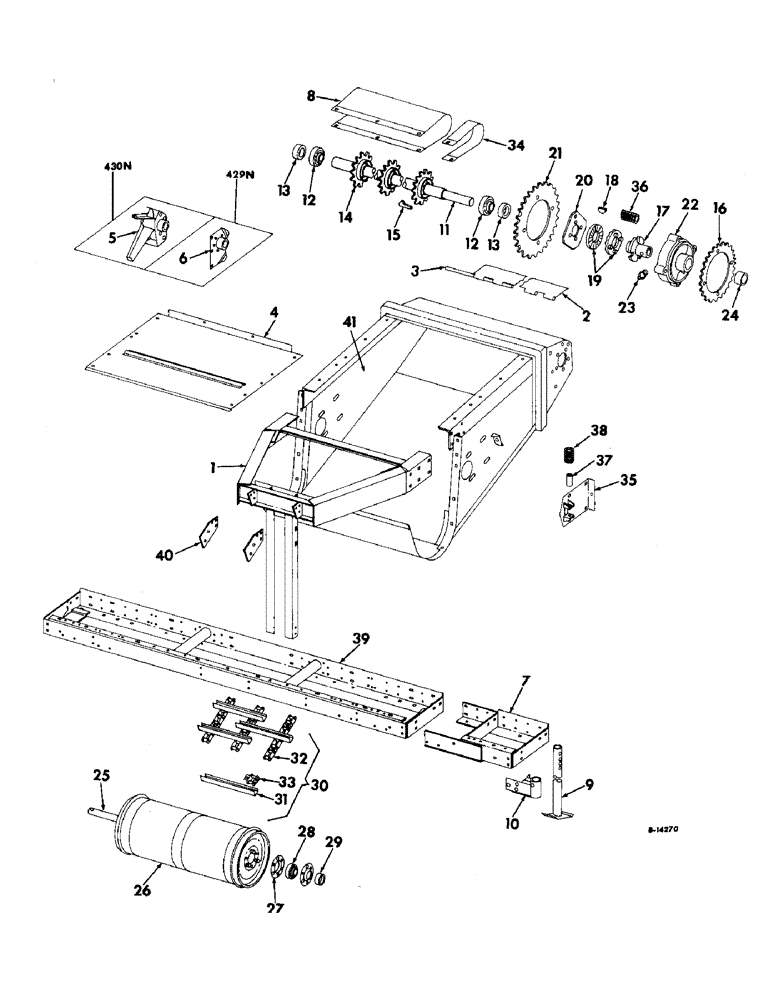

Запчасти Case IH 429N (D-02) - FEEDER FRAME, LIFT, STAND AND FEEDER CONVEYOR (58) - ATTACHMENTS/HEADERS

1

938931R91

FRAME ASSY, feeder extension

1шт.

BOLT, 7/16-14 x 1 short-nk crg

12шт.

NUT, 7/16-14

12шт.

WASHER, 7/16 med lock

12шт.

2

589305R11

EXTENSION ASSY, feeder frame bottom, 429N corn head

1шт.

2

589229R11

EXTENSION ASSY, feeder frame bottom, 430N corn head

1шт.

BOLT, 5/16-18 x 1/2 hex-hd mach

4шт.

BOLT, 5/16-18 x 3/4 short-sq-nk crg

2шт.

NUT, 5/16-18 hex

2шт.

WASHER, 5/16 med lock

6шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.

3

589386R1

ROD

feeder frame bottom extension hinge, 429N corn head

1шт.

3

589528R1

ROD, feeder frame bottom extension hinge, 430N corn head

1шт.

4

938927R91

SECTION ASSY, feeder cover

1шт.

BOLT, 5/16-18 x 3/4 short-sq-nk crg

2шт.

BOLT, 5/16-18 x 1/2 hex-hd mach

1шт.

NUT, 5/16 hex

2шт.

NUT, 7/16-14 hex

2шт.

WASHER, 5/16 med lock

6шт.

WASHER, 7/16 med lock

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

5

938974R91

BRACKET ASSY, feeder frame brg left, 430N corn head

1шт.

5

938975R91

BRACKET ASSY, feeder frame brg right, 430N corn head

1шт.

BOLT, 3/8-16 x 1 hex-hd mach

8шт.

BOLT, 3/8-16 x 1-1/4 hex-hd mach

4шт.

BOLT, 1/2-13 x 3 hex-hd mach

4шт.

NUT, 3/8-16 hex

12шт.

NUT, 1/2-13 hex

4шт.

WASHER, 3/8 med lock

12шт.

WASHER, 1/2 med lock

4шт.

6

628734R91

HOUSING ASSY, feeder frame brg left, 429N corn head

1шт.

6

628735R91

HOUSING ASSY, feeder frame brg right, 429N corn head

1шт.

BOLT, 3/8-16 x 1 short-sq-nk crg

4шт.

BOLT, 3/8-16 x 1 no. 3 plow

12шт.

NUT, 3/8-16 hex

16шт.

104280

RIVET, 3/8 x 7/8 small F-HD solid

4шт.

104282

RIVET, 3/8 x 1-1/8 small F-HD solid

4шт.

WASHER, 3/8 med lock

16шт.

7

938966R91

EXTENSION ASSY, main frame RH

1шт.

7

938965R91

EXTENSION ASSY, main frame LH

1шт.

BOLT, 3/8-16 x 1 short-sq-nk crg

2шт.

BOLT, 1/2-13 x 1 short-sq-nk crg

12шт.

NUT, 3/8-16 hex

2шт.

NUT, 1/2-13 hex

12шт.

WASHER, 3/8 med lock

2шт.

WASHER, 1/2 med lock

12шт.

8

937165R1

SHIELD, feeder shaft center

2шт.

9

589573R91

STAND ASSY

2шт.

10

589576R91

HOLDER ASSY, stand left

1шт.

10

589577R91

HOLDER ASSY, stand right

1шт.

BOLT, 1/2-13 x 1-1/4 short-sq-nk crg

12шт.

NUT, 1/2-13 hex

12шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot

2шт.

WASHER, 1/2 med lock

12шт.

11

935857R1

SHAFT, feeder conveyor, 429N corn head

1шт.

11

653861R1

SHAFT, feeder conveyor, 430N corn head

1шт.

12

256557R91

BEARING

ASSY, conveyor drum ball

2шт.

13

557113R11

COLLAR

W/SET SCREW, lkg

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt set

2шт.

14

937243R1

SPROCKET, feed conveyor drive, 11T

3шт.

15

Q3932

KEY,Gib, 5/16" Sq x 2"

feeder conveyor chain drive gib

3шт.

16

389382R1

SPROCKET, main drive 29T

1шт.

17

589379R91

HUB

HOLDER ASSY, feed conveyor drive slip clutch

1шт.

PIN, 1/8 x 3/4 cot

1шт.

V4941/2

PIN

5/16 x 2 std-hd

1шт.

18

117988

KEY

5/16 x 2-1/8 Woodruff 28

1шт.

19

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

20

589381R1

RETAINER, reed conveyor drive slip clutch

1шт.

BOLT, 1/2-13 x 3-3/4 dld sq-nk crg

4шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13 slt hex

4шт.

PIN, 3/32 x 1 cot

4шт.

WASHER, 17/32 x 1-1/4 x 16 ga

4шт.

21

935867R1

SPROCKET, feeder driven 38T

1шт.

BOLT, 3/8-16 x 3 hex-hd mach

4шт.

NUT, 3/8-16 hex

4шт.

WASHER, 3/8 med lock

4шт.

22

589384R11

HUB ASSY, feeder driven

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS-3/4 str lub

1шт.

24

18519K

BUSHING

feeder driven sprocket hub

1шт.

25

938990R1

SHAFT, feeder conveyor drum

1шт.

26

589363R91

DRUM ASSY, feeder conveyor

1шт.

NUT, 7/16-14 hex

6шт.

WASHER, 7/16 med lock

6шт.

27

629958R1

FLANGE

conveyor drum brg

4шт.

28

564991R91

BEARING

ASSY, conveyor drum ball

2шт.

29

658006R11

COLLAR

W/SET SCREW, lkg

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd cup-pt set

2шт.

30

938985R91

CHAIN W/SLATS, feeder conveyor

1шт.

31

589370R1

SLAT, feeder conveyor chain

30шт.

RIVET, 1/4 x 1/2 small F-HD solid

128шт.

32

587371R91

DRAG LINK

LINK, feeder conveyor chain connecting

1шт.

33

589656R91

LINK

ASSY, feeder conveyor chain att

1шт.

34

937166R1

SHIELD, feeder shaft end

2шт.

BOLT, 5/16-18 x 1/2 short-sq-nk crg

8шт.

NUT, 5/16-18 hex

8шт.

WASHER, 5/16 med lock

8шт.

35

938977R91

BRACKET ASSY, feed conveyor drum support LH

1шт.

35

938978R91

BRACKET ASSY, feed conveyor drum support RH

1шт.

BOLT, 3/8-16 x 3/4 short-nk-crg

8шт.

NUT, 3/8-16 hex

8шт.

NUT, 7/16-14 hex

2шт.

461189R2

SCREW, 7/16-14 x 3-3/4 hex-hd cap

2шт.

WASHER, 3/8 med lock

8шт.

36

311

SPRING

slip clutch

4шт.

37

H39274

SPACER,1/2" Pipe x 1 1/2"

conveyor drum adjusting

2шт.

38

PO144

SPRING

drum adjusting bolt

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 ESNA stop

2шт.

SCREW, 1/2-13 x 6-1/2 hex-hd cap

2шт.

Q3035

WASHER, 17/32 x 1 x 16 ga

8шт.

39

938959R91

FRAME ASSY, main

1шт.

40

939051R1

SUPPORT, stalk roll frame brace

2шт.

BOLT, 7/16-14 x 1 short sq-nk crg

3шт.

NUT, 3/8-16 hex

3шт.

WASHER, 3/8 med lock

3шт.

41

938900R91

HOUSING ASSY, feeder

1шт.

BOLT, 7/16-14 x 1 short-sq-nk

12шт.

NUT, 5/16-18 hex

2шт.

NUT, 7/16-14 hex

12шт.

120283

SCREW,Hex, 5/16" x 3/4", Gr 5

5/16-18 x 1 slt-truss-hd mach

2шт.

WASHER, 5/16 med lock

2шт.

WASHER, 7/16 med lock

12шт.
