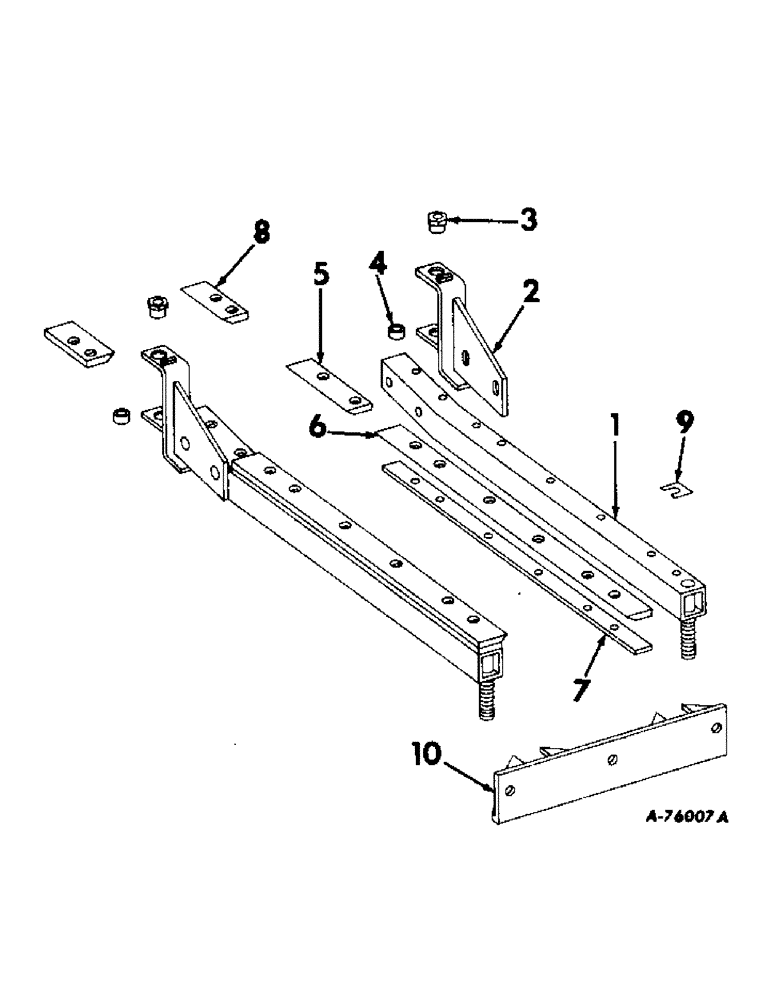

Запчасти Case IH 429N (D-24) - WEED KNIFE ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

631034R91

PIPE ASSY, weed knife retainer LH

4шт.

1

631035R91

PIPE ASSY, weed knife retainer RH

4шт.

462248R1

LOCK NUT

3/4-10 two way lock

16шт.

WASHER, 3/4 med lock

8шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

16шт.

2

631025R91

BRACKET ASSY, weed knife front LH

2шт.

2

631026R91

BRACKET ASSY, weed knife front RH

2шт.

BOLT, 7/16-14 x 2-1/2 sq-nk crg

16шт.

NUT, 7/16-14 hex

24шт.

102908

BOLT

SCREW, 7/16-14 x 1-1/4 sq-hd cup-pt set

8шт.

SCREW, 1/2-20 x 4-1/2 hex-hd cap

8шт.

WASHER, 7/16 med lock

8шт.

WASHER, 1/2 med lock

8шт.

PO105341/2

WASHER, 15/32 x 1-1/2 x 11 ga

16шт.

3

589962R1

NUT

weed knife front bracket

8шт.

4

576271R1

SPACER

weed knife front bracket inner

8шт.

5

589966R1

KNIFE, center LH weed

8шт.

5

589967R1

KNIFE, center RH weed

8шт.

BOLT, 3/8-16 x 2-1/2 no. 3 plow

16шт.

NUT, 3/8-16 hex

16шт.

WASHER, 3/8 med lock

16шт.

6

589968R1

KNIFE, rear weed

8шт.

BOLT, 3/8-16 x 2-3/4 no. 3 plow

48шт.

NUT, 3/8-16 hex

48шт.

WASHER, 3/8 med lock

48шт.

7

935650R1

STRAP, rear weed knife

8шт.

8

589698R1

KNIFE, front LH weed

4шт.

8

589699R1

KNIFE ASSY

KNIFE, front RH weed

4шт.

BOLT, 3/8-16 x 1-1/4 no. 3 plow

16шт.

NUT, 3/8-16 hex

16шт.

WASHER, 3/8 med lock

16шт.

9

589713R1

SHIM

WASHER, weed knife

160шт.

10

631031R91

ANGLE ASSY, weed knife pivot

4шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

12шт.
