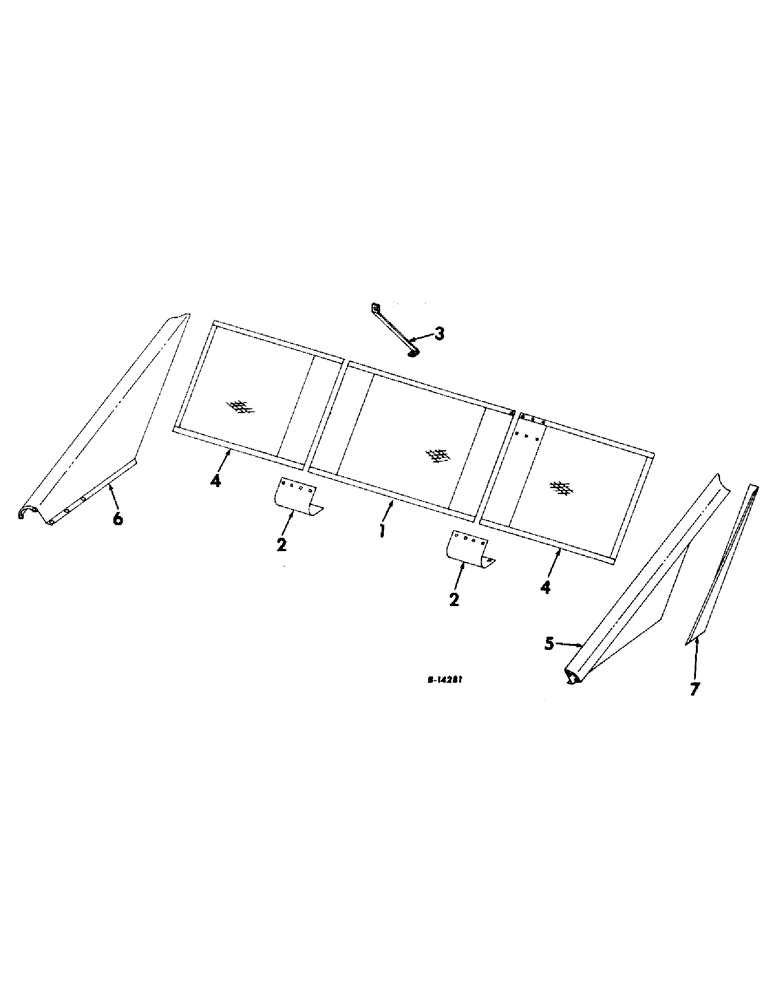

Запчасти Case IH 429N (D-23) - GATHERER EXTENSION ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

939188R91

SCREEN ASSY, gatherer extension

1шт.

BOLT, 5/16-18 x 3/4 CD or zn-pltd short sq-nk crg

10шт.

NUT, 5/16-18 CD or zn-pltd hex

10шт.

WASHER, 5/16 CD or zn-pltd med lock

10шт.

2

632416R1

SUPPORT, gatherer extension center

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd sltd truss-hd whiz lock

4шт.

3

632417R1

BRACE, gatherer extension

3шт.

BOLT, 5/16-18 x 3/4 CD or zn-pltd short sq-nk crg

3шт.

BOLT, 5/16-18 x 1-1/2 CD or zn-pltd short sq-nk crg

3шт.

NUT, 5/16-18 CD or zn-pltd hex

9шт.

WASHER, 5/16 CD or zn-pltd med lock

9шт.

4

654980R91

SCREEN ASSY, gatherer extension outer

2шт.

BOLT, 5/16-18 x 3/4 CD or zn-pltd short-sq-nk crg

16шт.

NUT, 5/16-18 CD or zn-pltd hex

16шт.

WASHER, 5/16 CD or zn-pltd med lock

16шт.

5

632410R91

SHIELD ASSY, gatherer extension LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd sltd truss-hd whiz lock

12шт.

6

632411R91

SHIELD ASSY, gatherer extension RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt truss-hd whiz lock

12шт.

7

653870R1

REINFORCEMENT, gatherer extension LH shield

1шт.

7

653871R1

REINFORCEMENT, gatherer extension RH shield

1шт.
