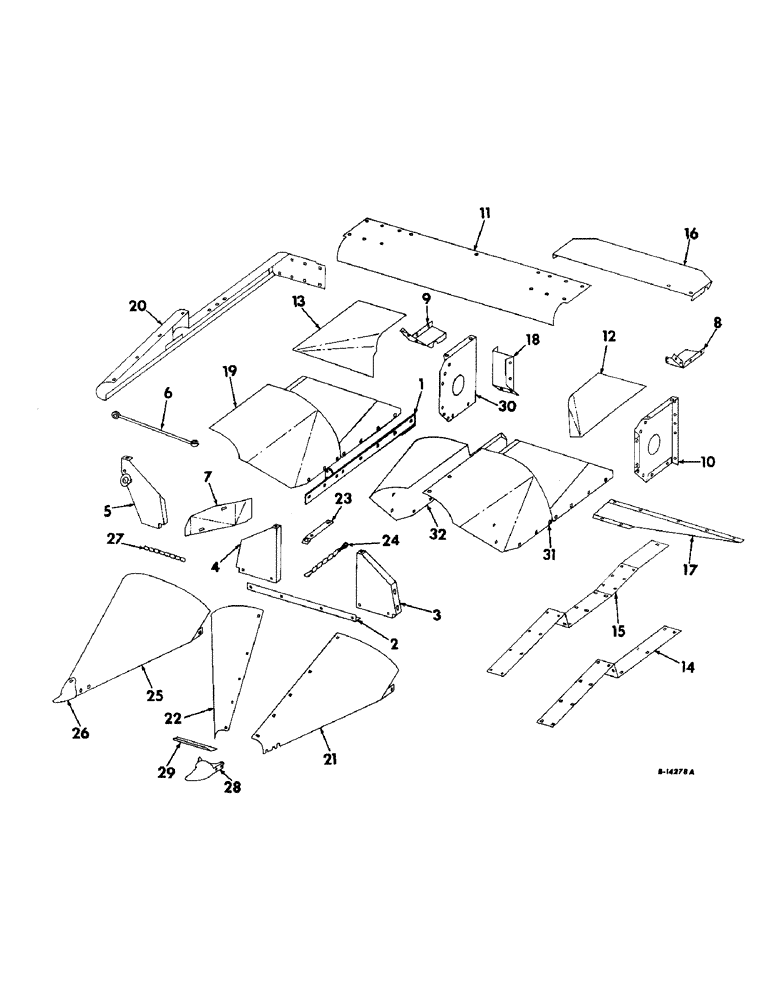

Запчасти Case IH 429N (D-18) - GATHERER SHIELDS AND DIVIDER (58) - ATTACHMENTS/HEADERS

1

632216R91

SUPPORT ASSY, gatherer shield LH

4шт.

1

632217R91

SUPPORT ASSY, gatherer shield RH

4шт.

BOLT, 3/8-16 x 2-1/2 sq-nk crg

16шт.

BOLT, 1/2-13 x 1-1/4 short-sq-nk crg

8шт.

NUT, 3/8-16 hex

16шт.

NUT, 1/2-13 hex

4шт.

WASHER, 3/8 med lock

16шт.

WASHER, 1/2 med lock

8шт.

2

939153R1

ANGLE, gatherer bracket tie

3шт.

BOLT, 3/8-16 x 3/4 short-sq-nk crg

12шт.

NUT, 3/8-16 hex

2шт.

WASHER, 3/8 med lock

12шт.

3

939145R1

SUPPORT, front inner gatherer shield RH

3шт.

BOLT, 5/16-18 x 3/4 short-sq-nk crg

6шт.

NUT, 5/16-18 hex

6шт.

WASHER, 5/16 med lock

6шт.

4

939144R1

SUPPORT, front inner gatherer shield LH

3шт.

BOLT, 5/16-18 x 3/4 short-sq-nk crg

6шт.

NUT, 5/16-18 hex

6шт.

WASHER, 5/16 med lock

6шт.

5

589889R91

BRACKET ASSY, outer gatherer shield LH

1шт.

5

589890R91

BRACKET ASSY, outer gatherer shield RH

1шт.

BOLT, 3/8-16 x 3/4 short-sq-nk crg

4шт.

NUT, 3/8-16 hex

4шт.

WASHER, 3/8 med lock

4шт.

6

587002R1

BRACE, outer gatherer shield support LH

1шт.

6

587003R1

BRACE, outer gatherer shield support RH

1шт.

BOLT, 3/8-16 x 1-1/4 short-sq-nk crg

2шт.

NUT, 3/8-16 hex

2шт.

WASHER, 3/8 med lock

2шт.

7

632220R2

STRIP, divider hinge LH

4шт.

7

632221R2

STRIP, divider hinge RH

4шт.

BOLT, 3/8-16 x 3/4 short-sq-nk crg

8шт.

BOLT, 3/8-16 x 1-1/4 short-sq-nk crg

8шт.

NUT, 3/8-16 hex

16шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

8шт.

WASHER, 3/8 med lock

16шт.

8

654849R1

BOTTOM, beater inner RH

2шт.

8

654850R1

BOTTOM, beater inner LH

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

4шт.

9

939138R1

BOTTOM, beater outer LH

1шт.

9

939139R1

BOTTOM, beater outer RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

4шт.

10

634467R1

SIDE, beater inner RH

1шт.

10

634468R1

SIDE, beater inner LH

1шт.

BOLT, 5/16-18 x 3/4 short-sq-nk crg

4шт.

NUT, 5/16-18 hex

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

4шт.

WASHER, 5/16 med lock

4шт.

11

939126R91

COVER ASSY, beater

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

8шт.

12

939128R1

EXTENSION, beater cover LH

1шт.

12

939129R1

EXTENSION, beater cover RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

14шт.

13

632223R1

EXTENSION, beater cover LH

1шт.

13

632224R1

EXTENSION, beater cover RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

14шт.

14

939142R1

FILLER, inner gatherer sheet

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

32шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

32шт.

15

939143R1

FILLER, inner gatherer sheet center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

22шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

22шт.

16

939130R1

BOTTOM, beater center

2шт.

BOLT, 5/16-18 x 1 short-sq-nk crg

2шт.

NUT, 5/16-18 hex

2шт.

WASHER, 5/16 med lock

2шт.

17

939131R1

EXTENSION, beater bottom

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

26шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

26шт.

18

939134R1

FILLER, beater side LH

1шт.

18

939135R1

FILLER, beater side RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

12шт.

19

654312R91

SHIELD ASSY, gatherer RH

1шт.

19

654311R91

SHIELD ASSY, gatherer LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd

4шт.

20

589912R91

EXTENSION ASSY, outer gatherer shield LH

1шт.

20

589913R91

EXTENSION ASSY, outer gatherer shield RH

1шт.

BOLT, 1/2-13 x 2 sq-nk crg

9шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

24шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

24шт.

21

939154R91

DIVIDER ASSY, center LH

3шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 ESNA stop

9шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

15шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

15шт.

22

939155R91

DIVIDER ASSY, center RH

3шт.

BOLT, 1/2-13 x 2 sq-nk crg

9шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 ESNA stop

9шт.

23

589508R1

BRACKET, center divider adjusting chain

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16-18 x 3/4 CD or zn-pltd slt-truss-hd whiz lock

6шт.

24

589509R91

CHAIN, center divider adjusting

3шт.

BLOT, 3/8-16 x 3/4 short-sq-nk crg

3шт.

NUT, 3/8-16 hex

3шт.

WASHER, 3/8 med lock

3шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

3шт.

25

589510R91

NO LONGER SERVICED

DIVIDER W/POINT ASSY, outer LH

1шт.

25

589511R91

DIVIDER ASSY.

DIVIDER W/POINT ASSY, outer RH, includes ref no 26

1шт.

BOLT, 1/2-13 x 6-1/2 sq-nk crg

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 ESNA stop

2шт.

26

U911

POINT, outer divider LH

1шт.

26

U912

END ASSY.

POINT, outer divider RH

1шт.

BOLT, 3/8-16 x 1-1/4 sq-nk crg

4шт.

NUT, 1/4-20 hex

2шт.

NUT, 3/8-16 hex

4шт.

NLS

NO LONGER SERVICED

1/4-20 x 3/4 slt-F-HD mach

2шт.

WASHER, 1/4 med lock

2шт.

WASHER, 3/8 med lock

4шт.

27

589522R91

CHAIN, outer divider adjusting

2шт.

BOLT, 3/8-16 x 1 short-sq-nk crg

2шт.

NUT, 3/8-16 hex

2шт.

WASHER, 3/8 med lock

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

28

UB1526

POINT, center divider

3шт.

BOLT, 3/8-16 x 1-1/4 short-sq-nk crg

12шт.

NUT, 3/8-16 hex

12шт.

WASHER, 3/8 med lock

12шт.

29

626604R1

BRACE, divider

3шт.

BOLT, 3/8-16 x 3/4 short-sq-nk crg

6шт.

NUT, 3/8-16 hex

6шт.

WASHER, 3/8 med lock

6шт.

30

939132R1

SIDE, beater outer LH

1шт.

30

939133R1

SIDE, beater outer RH

1шт.

NUT, 5/16 hex

8шт.

939017R1

NUT, 5/16 CD or zn-pltd flange whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

8шт.

WASHER, 5/16 med lock

8шт.

31

939116R91

SHIELD ASSY, gatherer inner RH

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

6шт.

32

939115R91

SHIELD ASSY, gatherer inner LH

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 CD or zn-pltd flange whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock

6шт.
