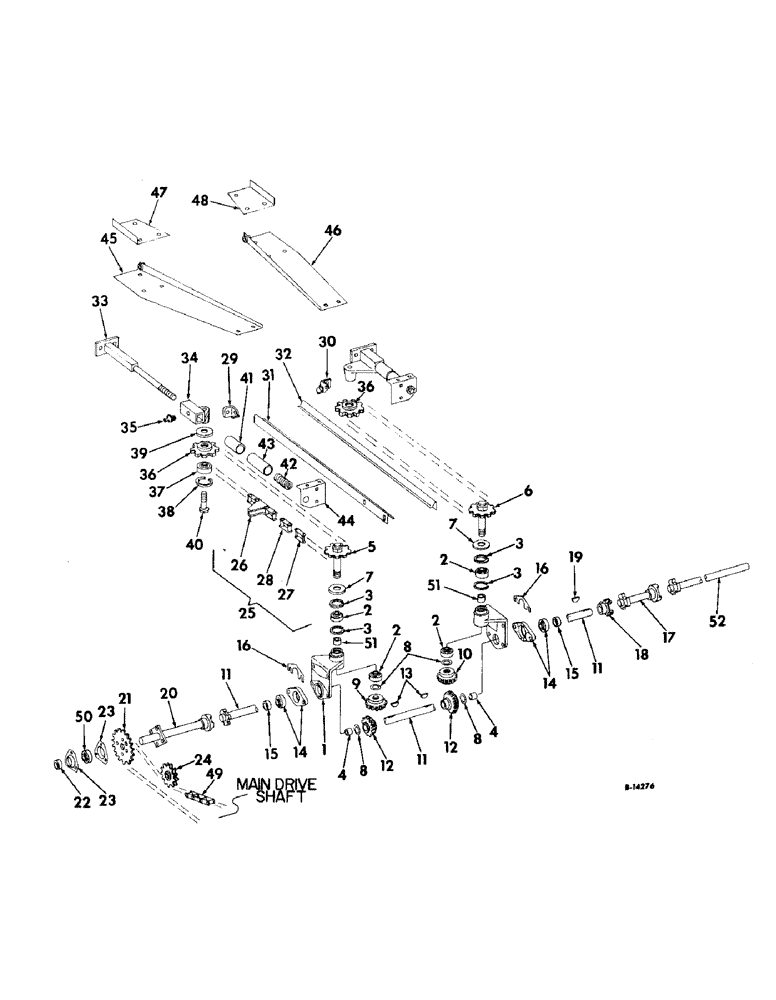

Запчасти Case IH 429N (D-15) - GATHERER DRIVE (58) - ATTACHMENTS/HEADERS

1

654275R1

HOUSING, gatherer drive brg

8шт.

SCREW, 7/16-14 x 3/4 hex-hd cap

16шт.

WASHER, 7/16 med lock

16шт.

2

586609R91

BALL BEARING

BEARING, gatherer drive ball

16шт.

3

555602R1

RING

gatherer drive brg snap

16шт.

4

936643R1

SPACER, gatherer drive brg

8шт.

5

654276R91

SPROCKET ASSY, gatherer chain drive LH 8T

4шт.

6

654277R91

SPROCKET ASSY, gahterer chain drive RH 8T

4шт.

615226R1

WASHER

1-1/32 x 1-1/2 x 22 ga

8шт.

7

654284R1

WASHER

gatherer driven shaft cup

8шт.

8

654283R1

THRUST WASHER

gatherer drive bevel gear and sprocket

28шт.

9

654280R1

PINION

GEAR, gatherer driven bevel LH thd 18T

4шт.

10

654281R1

PINION

GEAR, gatherer driven bevel RH thd 18T

4шт.

11

939106R91

SHAFT ASSY, gatherer drive outer

2шт.

12

935611R1

PINION

GEAR, gatherer drive bevel 18T

8шт.

13

118000

WOODRUFF KEY,#27, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 Woodruff 27

8шт.

14

654289R11

HOUSING ASSY.

HOUSING W/BRG, gatherer drive outer

8шт.

SCREW, 3/8-16 x 1-1/2 hex-hd cap

16шт.

WASHER, 3/8 med lock

16шт.

15

455102R11

COLLAR

W/SET SCREW, gatherer drive brg lkg

8шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd cup-pt set

8шт.

16

654288R1

SHIM, gatherer drive bevel gear

16шт.

17

939109R91

SHAFT ASSY, gatherer drive inner coupling

2шт.

18

939108R1

COUPLING

gatherer drive outer shaft female

2шт.

BOLT, 1/2-13 x 2-1/4 hex-hd mach

2шт.

NUT, 1/2-13 hex

2шт.

WASHER, 1/2 med lock

2шт.

19

118000

WOODRUFF KEY,#27, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 Woodruff 27

1шт.

20

589593R91

SHAFT ASSY, gatherer drive outer coupling

2шт.

21

589600R1

SPROCKET, gatherer driven 24T

2шт.

BOLT, 3/8-16 x 1-1/4 hex-hd mach

8шт.

NUT, 3/8-16 hex

8шт.

WASHER, 3/8 med lock

8шт.

22

455102R11

COLLAR

W/SET SCREW, outer coupling shaft lkg

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd cup-pt set

2шт.

23

571424R1

FLANGE

gatherer outer coupling shaft brg

4шт.

BOLT, 5/16-18 x 3/4 short-sq-nk crg

6шт.

NUT, 5/16-18 hex

6шт.

WASHER, 5/16 med lock

6шт.

24

582389R91

DRIVE SPROCKET

SPROCKET, gatherer drive idler

2шт.

BOLT, 5/8-11 x 3 sq-nk crg

2шт.

NUT, 5/8-11 hex

2шт.

WASHER, 5/8 med lock

2шт.

WASHER, 21/32 x 1-1/4 x 11 ga

2шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga

2шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

12шт.

25

654164R91

CHAIN (AG)

CHAIN W/FLIGHTS, gatherer

8шт.

26

935619R91

GATHERING CHAIN

CHAIN, gatherer section roller

1шт.

27

587371R92

NO LONGER SERVICED

LINK, gatherer roller chain connecting 1-1/2 in extended pitch

1шт.

28

450423R91

LINK, gatherer roller 1-1/2 in extended pitch

1шт.

29

937173R1

GUIDE, gatherer chain LH

4шт.

BOLT, 3/8-16 x 1 hex-hd mach

4шт.

NUT, 3/8-16 hex

4шт.

WASHER, 3/8 med lock

4шт.

30

937174R1

GUIDE, gatherer chain RH

4шт.

BOLT, 3/8-16 x 1 hex-hd mach

4шт.

NUT, 3/8-16 hex

4шт.

WASHER, 3/8 med lock

4шт.

31

589922R3

GUIDE, gatherer chain holddown LH

4шт.

BOLT, 5/16-18 x 1 short-sq-nk crg

28шт.

NUT, 5/16-18 hex

28шт.

WASHER, 5/16 med lock

28шт.

397

WASHER, 11/32 x 3/4 x 16 ga

2шт.

32

589923R3

GUIDE, gatherer chain holddown RH

4шт.

BOLT, 5/16-18 x 1 short-sq-nk crg

28шт.

NUT, 5/16-18 hex

28шт.

WASHER, 5/16 med lock

28шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

33

632172R91

SHAFT ASSY, gatherer carrier

8шт.

BOLT, 3/8-16 x 1 short-sq-nk crg

16шт.

18549R1

NUT,7/8"-9, GB

7/8-9 ESNA stop

8шт.

NUT, 3/8-16 hex

16шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

16шт.

WASHER, 3/8 med lock

16шт.

WASHER, 7/8 med lock

8шт.

Q1505

WASHER

13/32 x 1 x 16 ga

16шт.

6415196R1

WASHER, 29/32 x 1-3/4 x 11 ga

16шт.

34

632332R2

CARRIER, gatherer sprocket

8шт.

35

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

8шт.

36

654333R1

SPROCKET ASSY.

SPROCKET, gatherer idler 8T

8шт.

37

586156R91

BEARING

gatherer idler sprocket ball

8шт.

38

357323R1

RING, SNAP

RING, gatherer idler sprocket brg snap

8шт.

39

935331R1

WASHER

gatherer idler sprocket cup

8шт.

40

586116R1

BOLT,Hex, 3/4" - 10 x 2 1/2"

gatherer idler sprocket

8шт.

WASHER, 3/4 int-tooth lock

8шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

8шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

8шт.

41

632189R1

SPACER, gatherer carrier shaft

8шт.

42

544

CANVAS

SPRING, gatherer carrier shaft

8шт.

43

589856R1

SPACER, gatherer carrier shaft spring

8шт.

44

632185R1

BRACKET, gatherer carrier shaft LH

4шт.

44

632186R1

BRACKET, gatherer carrier shaft RH

4шт.

BOLT, 3/8-16 x 2-1/2 sq-nk crg

8шт.

NUT, 3/8-16 hex

8шт.

WASHER, 3/8 med lock

8шт.

45

632183R11

BRACKET ASSY, gatherer support LH

4шт.

BOLT, 3/8-16 x 3/4 short-sq-nk crg

16шт.

BOLT, 3/8-16 x 1 short-sq-nk crg

4шт.

NUT, 3/8-16 hex

20шт.

WASHER, 3/8 med lock

20шт.

46

632184R11

BRACKET ASSY, gatherer support RH

4шт.

BOLT, 3/8-16 x 3/4 short-sq-nk crg

16шт.

BOLT, 3/8-16 x 1 short-sq-nk crg

4шт.

NUT, 3/8-16 hex

20шт.

WASHER, 3/8 med lock

20шт.

47

632180R1

BRACE, divider outer LH

1шт.

BOLT, 3/8-16 x 1 short-sq-nk crg

3шт.

NUT, 3/8-16 hex

3шт.

WASHER, 3/8 med lock

3шт.

48

632181R1

BRACE, divider outer RH

1шт.

BOLT, 3/8-16 x 1 short-sq-nk crg

3шт.

NUT, 3/8-16 hex

3шт.

WASHER, 3/8 med lock

3шт.

49

CHAIN, gatherer drive roller left, order 81 links of 3/4 in pitch std roller chain from a 10-ft roll marked 1793D, one connecting link 1317D and one offset connecting link 1318D

1шт.

49

CHAIN, gatherer drive roller right, order 65 links of 3/4 in pitch std roller chain from a 10-ft roll marked 1793D, one connecting lik 1317D

1шт.

50

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY, gatherer outer coupling shaft ball

2шт.

51

654385R1

SPACER,26.21mm ID x 31.75mm OD x 19.05mm L

gatherer drive brg outer

8шт.

52

654948R91

SHAFT ASSY, gatherer drive inner

2шт.
