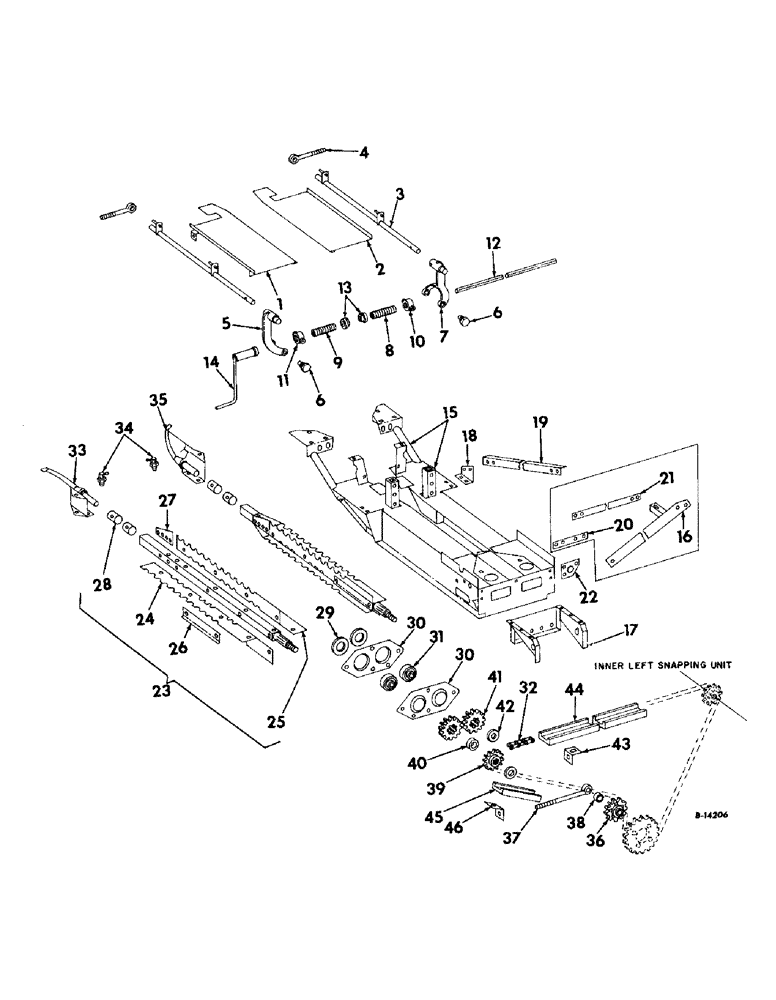

Запчасти Case IH 429 (B-10) - STALK ROLL FRAME, ROLLS AND DRIVE (58) - ATTACHMENTS/HEADERS

1

632198R91

SHIELD ASSY, stalk roll LH

4шт.

2

632199R91

PLATE

SHIELD ASSY, stalk roll RH

4шт.

3

654952R91

CONTROL ASSY, stalk roll shield

8шт.

4

589460R1

BOLT, stalk roll shield adjusting eye

8шт.

NUT, 3/8-16 hex

16шт.

WASHER, 3/8 med lock

8шт.

5

589451R1

LEVER, stalk roll shield adjustment lower LH

4шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

4шт.

6

589457R1

SCREW, stalk roll shield adjustment nut retainer

16шт.

WASHER, 5/8 med lock

16шт.

7

589452R1

LEVER, stalk roll shield adjustment lower RH

4шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

4шт.

8

589453R1

SCREW, stalk roll shield adjustment LH thd

4шт.

9

589454R1

SCREW, stalk roll shield adjustment RH thd

4шт.

10

935560R1

NUT, stalk roll shield adjustment LH thd

4шт.

11

935561R1

NUT, stalk roll shield adjustment RH thd

4шт.

12

589458R1

SHAFT, stalk roll shield adjustment screw

2шт.

13

M5895

COLLAR, stalk roll shield adjustment screw shaft

4шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW, 3/8-16 x 1 sq-hd cup-pt set

4шт.

NUT, 3/8-16 hex

4шт.

14

589725R91

CRANK ASSY, stalk roll shield adjusting

1шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot

1шт.

15

632110R91

FRAME ASSY, stalk roll

4шт.

BOLT, 7/16-14 x 1 short sq-nk crg

28шт.

NUT, 7/16-14 hex

28шт.

WASHER, 7/16 med lock

28шт.

16

589434R91

BRACE, stalk roll frame outer LH, 40 in row width

1шт.

16

589435R91

BRACE, stalk roll frame outer RH, 40 in row width

1шт.

16

627454R91

BRACE, stalk roll frame outer LH, 36 and 38 in row width

1шт.

16

627455R91

BRACE, stalk roll frame outer RH, 36 and 38 in row width

1шт.

17

589428R91

BRACKET ASSY, stalk roll frame non service

4шт.

BOLT, 3/8-16 x 1 short sq-nk crg

12шт.

BOLT, 1/2-13 x 1 short sq-nk crg

10шт.

BOLT, 1/2-13 x 1-1/4 short sq-nk crg

2шт.

BOLT, 5/8-11 x 1-1/2 hex-hd mach

2шт.

NUT, 5/16-18 hex

2шт.

NUT, 3/8-16 hex

12шт.

NUT, 1/2-13 hex

12шт.

NUT, 5/8-11 hex

2шт.

84896

SCREW,Slotted Truss Hd, 5/16" - 18 x 3/4"

5/16-18 x 3/4 slt-truss-hd mach

2шт.

WASHER, 5/16 med lock

2шт.

WASHER, 3/8 med lock

12шт.

WASHER, 1/2 med lock

12шт.

WASHER, 5/8 med lock

2шт.

18

654944R1

BRACKET, stalk roll frame brace left

1шт.

18

654945R1

BRACKET, stalk roll frame brace right

1шт.

BOLT, 7/16-14 x 1 short sq-nk crg

4шт.

NUT, 7/16-14 hex

4шт.

WASHER, 7/16 med lock

4шт.

19

628424R1

ANGLE, stalk roll frame

2шт.

BOLT, 7/16-14 x 1 short sq-nk crg

8шт.

NUT, 7/16-14 hex

8шт.

WASHER, 7/16 med lock

8шт.

20

654943R1

ANCHOR, stalk roll frame

4шт.

BOLT, 1/2-13 x 1-1/4 shrot sq-nk crg

8шт.

BOLT, 1/2-13 x 1-1/4 hex-hd mach

8шт.

NUT, 1/2-13 hex

16шт.

WASHER, 1/2 med lock

16шт.

21

654942R1

ANCHOR, stalk roll frame inner

1шт.

BOLT, 1/2-13 x 1 short sq-nk crg

4шт.

NUT, 1/2-13 hex

4шт.

WASHER, 1/2 med lock

4шт.

22

654947R1

BRACKET, stalk shield control

8шт.

BOLT, 3/8-16 x 1-1/4 short sq-nk crg

24шт.

NUT, 3/8-16 hex

24шт.

WASHER, 3/8 med lock

24шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

4шт.

23

654290R91

ROLL ASSY, left driver stalk

2шт.

23

654292R91

ROLL ASSY, left driven stalk

2шт.

23

654291R91

ROLL ASSY, right driver stalk

2шт.

23

654293R91

ROLL ASSY, right driven stalk

2шт.

18558R1

NUT,3/4"-16, GB

3/4-16 ESNA lock

8шт.

WASHER, 1-3/16 med lock

8шт.

24

654298R1

VALVE BLOCK

SECTION, stalk roll no 1

16шт.

SCREW, 1/2-20 x 7/8 hex-hd cap

32шт.

WASHER, 1/2 int-tooth lock

32шт.

25

654299R1

VALVE BLOCK

SECTION, stalk roll no 2

16шт.

SCREW, 1/2-20 x 7/8 hex-hd cap

32шт.

WASHER, 1/2 int-tooth lock

32шт.

26

935627R2

LUG

left stalk roll

8шт.

26

935628R2

LUG

right stalk roll

8шт.

SCREW, 1/2-20 x 7/8 hex-hd cap

32шт.

WASHER, 1/2 int-tooth lock

32шт.

27

654296R1

SEAL ASSY.

SECTION, stalk roll front

32шт.

RIVET, 5/16 x 2-1/4 F-HD solid

32шт.

28

589813R1

BUSHING

stalk roll front

16шт.

29

654297R1

WASHER

stalk roll shaft

8шт.

30

585899R1

PLATE ASSY.

FLANGE, stalk roll brg

8шт.

BOLT, 7/16-14 x 1 short sq-nk crg

16шт.

NUT, 7/16-14 hex

16шт.

WASHER, 7/16 med lock

16шт.

31

455103R91

BEARING

stalk roll rear ball

8шт.

32

CHAIN, stalk roll drive roller, order 141 links of 3/4 in pitch std roller chain from a 10-ft roll marked 1793D and one connecting link 1786D, 40 in row width

2шт.

32

CHAIN, stalk roll drive, order 133 links of 3/4 in pitch std roller chain from a 10 ft roll marked 1793D and one connecting link 1317D, 38 in row width

2шт.

32

CHAIN, stalk roll drive, order 125 links of 3/4 in pitch std roller chain from a 10 ft roll marked 1793D and one connecting link 1317D, 36 in row width

2шт.

33

589854R91

BRACKET

SUPPORT ASSY, stalk roll left

4шт.

NUT, 1/2-20 hex

4шт.

SCREW, 1/2-20 x 3-3/4 hex-hd cap

4шт.

WASHER, 1/2 int-tooth lock

8шт.

34

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg angle lub

8шт.

35

589853R91

BRACKET

SUPPORT ASSY, stalk roll right

4шт.

NUT, 1/2-20 HEX

4шт.

SCREW, 1/2-20 x 3-3/4 hex-hd cap

4шт.

WASHER, 1/2 int-tooth lock

8шт.

36

629972R91

DRIVE SPROCKET,15T

SPROCKET ASSY, stalk roll drive idler bearing 15T

2шт.

BOLT, 5/8-11 x 3-1/2 sq-nk crg

2шт.

NUT, 5/8-11 hex

2шт.

WASHER, 5/8 med lock

2шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

4шт.

WASHER, 21/32 x 1-1/4 x 11 ga

6шт.

PO12898

WASHER

29/32 x 1-1/2 x 11 ga

2шт.

37

588626R1

BOLT, stalk roll drive chain adjusting eye

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

4шт.

WASHER, 1/2 med lock

2шт.

38

577715R1

SPACER,16.69mm ID x 22.23mm OD x 10.32mm L

stalk roll drive chain adjusting eye, bolt

2шт.

39

586318R1

PINION

SPROCKET, stalk roll driven 13T

4шт.

40

589696R1

BUSHING

SPACER, stalk roll driven sprocket

4шт.

41

580849R1

PINION

GEAR, stalk roll drive 20T

8шт.

42

585964R1

BUSHING

WASHER, stalk roll gear

8шт.

43

589406R1

ANGLE, stalk roll drive chain guide

2шт.

BOLT, 3/8-16 x 1 short sq-nk crg

2шт.

NUT, 3/8-16 hex

2шт.

WASHER, 3/8 med lock

2шт.

44

589407R1

GUIDE, stalk roll drive chain upper

2шт.

BOLT, 5/16-18 x 1-1/4 short sq-nk crg

4шт.

NUT, 5/16-18 hex

4шт.

WASHER, 5/16 med lock

4шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.

45

589408R1

GUIDE, stalk roll drive chain lower

2шт.

BOLT, 5/16-18 x 1 short sq-nk crg

2шт.

NUT, 5/16-18 hex

2шт.

WASHER, 5/16 med lock

2шт.

46

589409R1

BRACKET, stalk roll chain guide

2шт.

BOLT, 3/8-16 x 1 short sq-nk crg

2шт.

NUT, 3/8-16 hex

2шт.

WASHER, 3/8 med lock

2шт.
