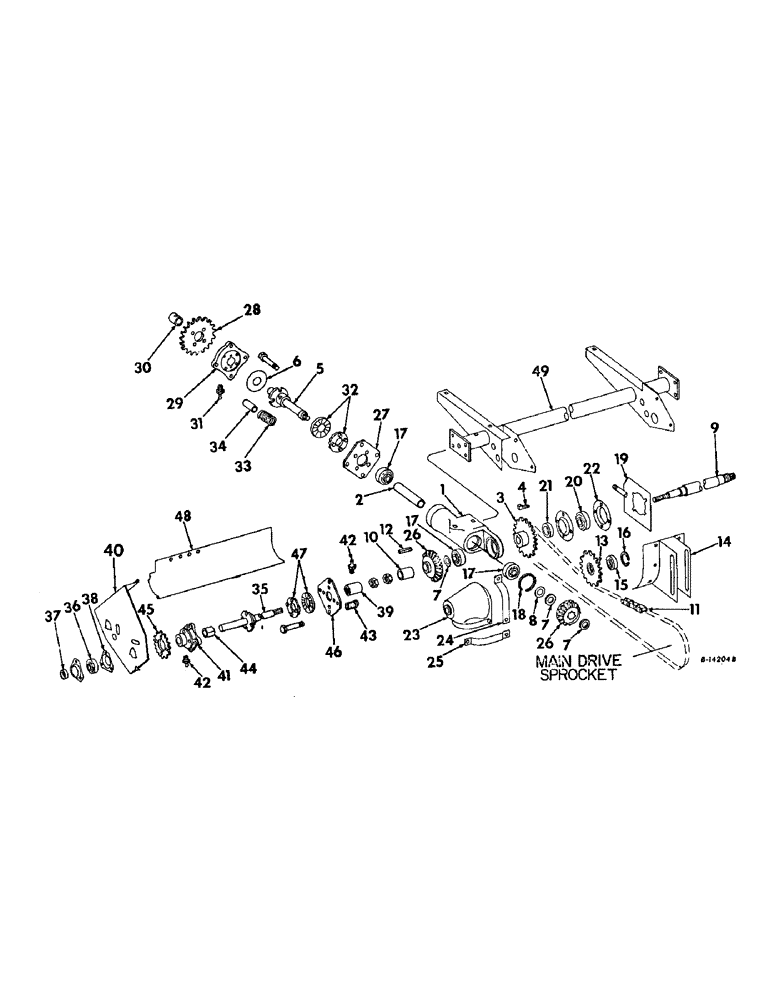

Запчасти Case IH 429 (B-08) - MAIN DRIVE (58) - ATTACHMENTS/HEADERS

1

589770R1

CASE, stalk roll drive gear

2шт.

BOLT, 5/8-11 x 4 sq-nk crg

4шт.

NUT, 5/8-11 hex

4шт.

WASHER, 5/8 med lock

4шт.

2

589771R1

SPACER, gear case

2шт.

3

589772R91

SPROCKET ASSY, main driven 21T

1шт.

4

Q1497

KEY,Gib, 3/8" Sq x 2"

main driven sprocket gib

1шт.

5

589533R91

SHAFT ASSY, stalk roll drive

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

WASHER, 1-1/4 med lock

2шт.

585556R1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

21/32 x 1-1/2 x 3/16

2шт.

6

628611R1

WASHER, stalk roll drive shaft

2шт.

7

589782R1

THRUST WASHER

stalk roll drive shaft

8шт.

8

589783R1

SHIM, stalk roll drive bevel gear

4шт.

9

589776R1

SHAFT, main drive

1шт.

589780R1

NUT, 1-1/4-12 hex jam

4шт.

219779

CLUTCH

1-1/2-12 hex jam

1шт.

172208C1

NUT, 1-1/2-12 gripco lock

1шт.

10

589536R1

SPACER, main drive shaft

2шт.

11

CHAIN, main drive roller, order 122 links of 1 in pitch std roller chain from a 10 ft roll marked 1794D, one offset connecting link 1398D and two connecting links 1397D

1шт.

12

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

13

589538R91

SPROCKET ASSY.

SPROCKET ASSY, main drive tightener 17T

1шт.

14

589540R91

SUPPORT ASSY, main drive tightener sprocket

1шт.

BOLT, 5/16-18 x 3/4 short-sq-nk crg

6шт.

NUT, 5/16-18 hex

6шт.

NUT, 7/8-9 hex

1шт.

SCREW, 7/8-9 x 4 hex-hd cap

1шт.

WASHER, 5/16 med lock

1шт.

WASHER, 7/8 med lock

1шт.

557270R1

WASHER

29/32 x 1-1/4 x 11 ga

9шт.

615191R1

WASHER

29/32 x 1-1/4 x 16 ga

3шт.

550999R1

WASHER

29/32 x 2 x 11 ga

3шт.

15

580095R91

BALL BEARING

BEARING, main drive tightener ball

1шт.

16

555602R1

RING

main and feeder drive tightener snap

1шт.

17

587015R91

BALL BEARING

main drive shaft stalk roll drive shaft ball

6шт.

18

45650D

RETAINER

RING, stalk roll drive shaft bearing snap

2шт.

19

589777R91

BRACKET ASSY, main drive shaft brg

1шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-10 slt hex

1шт.

PIN, 1/8 x 1-3/4 cot

1шт.

20

664175R91

BALL BEARING

BEARING, main drive shaft ball

1шт.

21

455112R11

COLLAR

W/SET SCREW LKG

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt set

1шт.

22

663562R1

FLANGE

main drive shaft brg

2шт.

BOLT, 1/2-13 x 1-1/4 short-sq-nk crg

4шт.

NUT, 1/2-13 hex

4шт.

WASHER, 1/2 med lock

4шт.

23

631434R1

COVER, gear case

2шт.

24

631435R1

STRAP, gear case cover lower

4шт.

BOLT, 5/16-18 x 3/4 hex-hd mach

2шт.

NUT, 5/16-18 hex

2шт.

WASHER, 5/16 med lock

2шт.

25

631436R1

STRAP, gear case cover upper

4шт.

BOLT, 5/16-18 x 3/4 hex-hd mach

6шт.

NUT, 5/16-18 hex

2шт.

WASHER, 5/16 med lock

6шт.

26

629335R91

GEAR SET, stock roll drive bevel 589846R1 and 589547R1 matched

1шт.

27

629870R1

RETAINER

FLANGE, stalk roll drive slip clutch

2шт.

28

575915R2

SPROCKET, stalk roll drive, 25T

2шт.

29

575787R21

HOLDER W/BUSHING ASSY, stalk roll drive slip clutch

2шт.

BOLT, 3/8-16 x 1-1/2 no. 3 plow

8шт.

587423R1

BOLT

1/2-13 x 4-1/4 dld hex-hd mach

8шт.

NUT, 3/8-16 hex

8шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13 slt hex

8шт.

PIN, 3/32 x 1 cot

8шт.

WASHER, 3/8 med lock

8шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

8шт.

30

575789R1

BUSHING

stalk roll drive slip clutch holder

2шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS 3/4 str lub

2шт.

32

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch stalk roll unit

4шт.

33

584007R1

SPRING

stalk roll unit slip clutch

8шт.

34

631581R1

SPACER

stalk roll unit slip clutch spring

8шт.

35

589534R91

SHAFT ASSY, main drive outer

2шт.

36

455960R91

BALL BEARING

BEARING, main drive shaft outer ball

2шт.

37

557115R11

COLLAR

COLLAR W/SET SCREW LKG

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 hex-soc-hd

1шт.

38

571425R1

FLANGED BEARING

main drive shaft outer brg

4шт.

BOLT, 3/8-16 x 1 short-sq-nk crg

6шт.

NUT, 3/8-16 hex

6шт.

WASHER, 3/8 med lock

6шт.

39

589690R1

COUPLING

main drive shaft

2шт.

PIN, 1/8 x 3/4 cot

2шт.

Q1250

PIN

1/4 x 1-7/8 std hd

2шт.

40

589835R91

BRACKET ASSY, gatherer drive LH

1шт.

40

589836R91

BRACKET ASSY, gatherer drive RH

1шт.

BOLT, 3/8-16 x 1-1/4 short-sq-nk crg

2шт.

BOLT, 1/2-13 x 1-1/4 short-sq-nk crg

1шт.

BOLT, 3/8-16 x 1 hex-hd mach

4шт.

NUT, 3/8-16 hex

6шт.

NUT, 1/2-13 hex

4шт.

WASHER, 3/8 med lock

6шт.

WASHER, 1/2 med lock

4шт.

41

589471R91

HOLDER W/BUSHING ASSY, gatherer drive slip clutch

2шт.

587423R1

BOLT

1/2-13 x 4-1/4 hex-hd mach

8шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13 slt hex

8шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

8шт.

Q5035

WASHER

17/32 x 1 x 16 ga

8шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS-3/4 str lub

4шт.

43

NLS

NO LONGER SERVICED

gatherer drive slip clutch

8шт.

44

574294R1

BUSHING

gatherer drive slip clutch holder

2шт.

45

587228R1

SPROCKET, gather drive 18T

2шт.

BOLT, 3/8-16 x 1 hex-hd mach

8шт.

WASHER, 3/8 med lock

8шт.

46

629870R1

RETAINER

FLANGE, gatherer drive slip clutch

2шт.

47

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch gatherer drive

4шт.

48

629988R1

SHIELD, gatherer drive slip clutch LH

1шт.

48

629989R1

SHIELD, gatherer drive slip clutch RH

1шт.

BOLT, 5/16-18 x 3/4 short-sq-nk crg

2шт.

BOLT, 3/8-16 x 1 short-sq-nk crg

2шт.

BOLT, 3/8-16 x 3/4 hex-hd mach

2шт.

NUT, 5/16-18 hex

2шт.

NUT, 3/8-16 hex

4шт.

WASHER, 5/16 med lock

2шт.

WASHER, 3/8 med lock

4шт.

WASHER, 11/32 x 3/4 x 16 ga

2шт.

49

589529R91

PIPE ASSY, torque, 430 corn head 60-9" Length

1шт.

49

589543R91

PIPE ASSY, torque, 429 corn head 60-9" Length

1шт.

BOLT, 1/2-13 x 1-1/4 short-sq-nk crg, 430 corn head

1шт.

BOLT, 5/8-11 x 4 hex-hd mach

4шт.

BOLT, 1/2-13 x 1-1/2 short-sq-nk crg, 429 corn head

4шт.

NUT, 1/2-13 hex

8шт.

NUT, 5/8-11 hex

4шт.

SCREW, 1/2-13 x 1-1/4 hex-hd cap

16шт.

WASHER, 1/2 med lock

16шт.

WASHER, 5/8 med lock

4шт.
