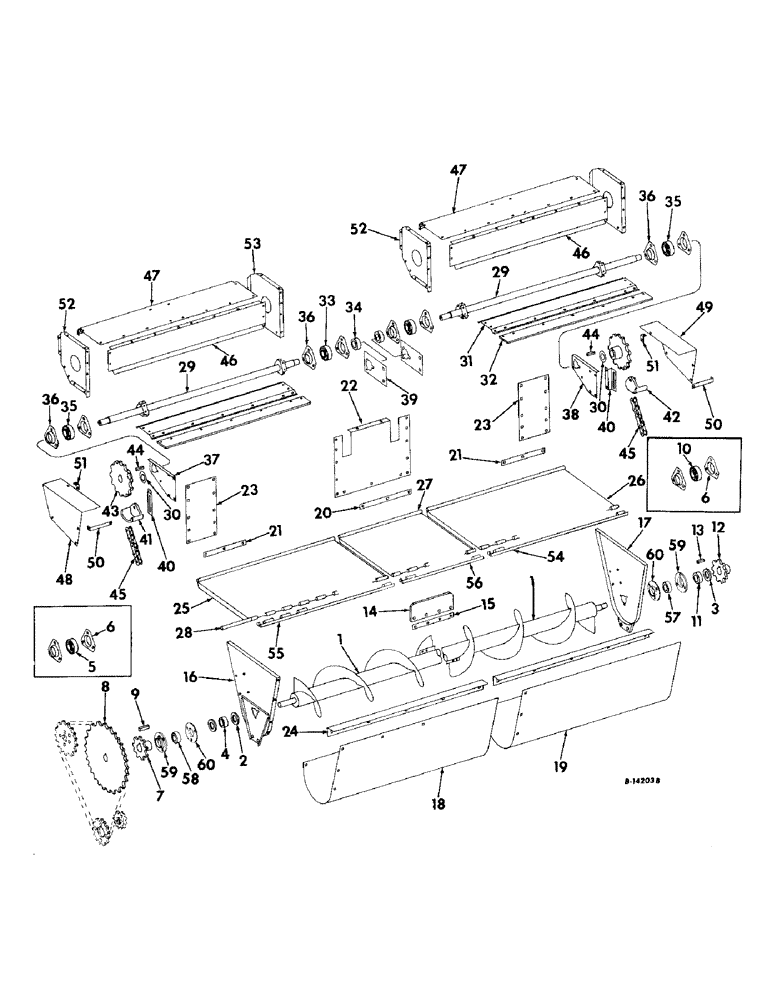

Запчасти Case IH 429 (B-05) - AUGER, BEATER AND DRIVE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
634773R91
AUGER ASSY
1шт.
SCREW, 1/2-20 x 1 hex-hd cap
2шт.
WASHER, 1/2 int-tooth lock
4шт.
WASHER, 1 med lock
1шт.
WASHER, 1-1/4 med lock
1шт.
76730H
WASHER
17/32 x 1-1/2 x 11 ga
1шт.
21585D
WASHER
17/32 x 1-3/4 x 3/16
1шт.
2
632156R1
THRUST WASHER
auger LH shaft
2шт.
3
654283R1
THRUST WASHER
auger RH shaft
1шт.
4
632157R1
SPACER, auger drive
1шт.
5
617668R91
BALL BEARING
auger LH shaft ball
1шт.
6
571425R1
FLANGED BEARING
auger shaft brg
4шт.
BOLT, 3/8-16 x 3/4 short-sq-nk crg
6шт.
NUT, 3/8-16 hex
6шт.
WASHER, 3/8 med lock
6шт.
95-11034
WASHER,1/4"
11/32 x 11/16 x 16 ga
6шт.
7
654967R1
SPROCKET, beater driven LH, 8T
1шт.
8
935789R91
SPROCKET ASSY, auger driven, 50T
1шт.
9
577147R1
KEY
5/16 x 1-3/16 sq parallel
2шт.
10
617668R91
BALL BEARING
auger RH shaft ball
1шт.
11
557995R11
COLLAR
W/SET SCREW, auger RH shaft brg lkg
1шт.
12
586359R1
SPROCKET, beater drive RH, 8T
1шт.
13
587016R1
KEY, 1/4 x 3/4 sq parallel
1шт.
14
634470R1
BAT
auger
2шт.
15
634471R1
STRAP, auger bat
2шт.
BOLT, 3/8-16 x 1-1/4 short-sq-nk crg
8шт.
NUT, 3/8-16 hex
8шт.
WASHER, 3/8 med lock
8шт.
16
589840R91
END ASSY, auger trough LH
1шт.
BOLT, 5/16-18 x 1/2 short-sq-nk crg
4шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
4шт.
BOLT, 7/16-14 x 1 hex-hd mach
2шт.
NUT, 5/16-18 hex
8шт.
NUT, 7/16-14 hex
2шт.
WASHER, 5/16 med lock
8шт.
WASHER, 7/16 med lock
2шт.
17
589841R91
END ASSY, auger trough RH
1шт.
BOLT, 5/16-18 x 1/2 short-sq-nk crg
4шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
4шт.
BOLT, 7/16-14 x 1 hex-hd mach
2шт.
NUT, 5/16-18 hex
8шт.
NUT, 7/16-14 hex
2шт.
WASHER, 5/16 med lock
8шт.
WASHER, 7/16 med lock
2шт.
18
589859R1
TROUGH, auger LH
1шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
5шт.
NUT, 5/16-18 hex
10шт.
84896
SCREW,Slotted Truss Hd, 5/16" - 18 x 3/4"
5/16-18 x 3/4 slt-truss-hd mach
5шт.
WASHER, 5/16 med lock
10шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
6шт.
19
589860R1
TROUGH, auger RH
1шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
4шт.
NUT, 5/16-18 hex
9шт.
84896
SCREW,Slotted Truss Hd, 5/16" - 18 x 3/4"
5/16-18 x 1 slt-truss-hd mach
5шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
6шт.
WASHER, 5/16 med lock
9шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
6шт.
20
654953R1
ANGLE, auger trough center front
1шт.
21
654954R1
ANGLE, auger trough outer front, 36 in row width
2шт.
21
654955R1
ANGLE, auger trough outer front, 38 in row width
2шт.
21
654956R1
ANGLE, auger trough outer front, 40 in row width
2шт.
22
654958R1
SHEET, auger trough center front
1шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
1шт.
NUT, 5/16-18 hex
1шт.
WASHER, 5/16 med lock
1шт.
23
654960R1
STRIP, auger trough outer front, 36 in row width
2шт.
23
654959R1
STRIP, auger trough outer front, 38 in row width
2шт.
23
654957R1
STRIP, auger trough outer front, 40 in row width
2шт.
24
589401R1
ANGLE, auger stripper
2шт.
BOLT, 5/16-18 x 1/2 short-sq-nk crg
6шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
2шт.
BOLT, 5/16-18 x 1 short-sq-nk crg
2шт.
NUT, 5/16-18 hex
10шт.
WASHER, 5/16 med lock
10шт.
25
654973R11
COVER ASSY, auger LH
1шт.
26
654974R11
COVER ASSY, auger RH
1шт.
27
654975R11
COVER ASSY, auger center
1шт.
28
589360R1
ROD, auger cover
1шт.
29
654996R92
SHAFT ASSY, beater
2шт.
SCREW, 1/2-20 x 1 hex-hd cap
2шт.
WASHER, 1/2 int-tooth lock
4шт.
76730H
WASHER
17/32 x 1-1/2 x 11 ga
2шт.
WASHER, 1 med lock
2шт.
30
654283R1
THRUST WASHER
beater shaft
10шт.
31
654992R1
SECTION, beater, 36 in row width
6шт.
31
654991R1
SECTION, beater, 38 in row width
6шт.
31
654990R1
SECTION, beater, 40 in row width
6шт.
SCREW, 5/16-18 x 3/4 hex-hd cap
24шт.
WASHER, 5/16 med lock
24шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
24шт.
32
654993R1
BAT, beater, 36 in row width
6шт.
32
654994R1
BAT, beater, 38 in row width
6шт.
32
654995R1
BAT, beater, 40 in row width
6шт.
BOLT, 5/16-18 x 1-1/4 short sq-nk crg
42шт.
NUT, 5/16-18 hex
42шт.
WASHER, 5/16 int-tooth lock
42шт.
33
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
beater shaft inner ball
2шт.
34
455102R11
COLLAR
W/SET SCREW, beater inner shaft brg lkg
2шт.
35
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
beater shaft outer ball
2шт.
36
571424R1
FLANGE
beater shaft brg
8шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
12шт.
NUT, 5/16-18 hex
12шт.
WASHER, 5/16 med lock
12шт.
95-11034
WASHER,1/4"
11/32 x 11/16 x 16 ga
12шт.
37
935739R1
BRACKET, beater brg outer LH
1шт.
BOLT, 3/8-16 x 3/4 short-sq-nk crg
2шт.
NUT, 3/8-16 hex
2шт.
WASHER, 3/8 med lock
2шт.
38
935740R1
BRACKET, beater brg outer RH
1шт.
BOLT, 3/8-16 x 3/4 short-sq-nk crg
2шт.
NUT, 3/8-16 hex
2шт.
WASHER, 3/8 med lock
2шт.
39
654998R1
BRACKET, beater brg inner
2шт.
BOLT, 1/2-13 x 1 short-sq-nk crg
4шт.
NUT, 1/2-13 hex
4шт.
WASHER, 1/2 med lock
4шт.
31696H
WASHER, 17/32 x 1-1/2 x 16 ga
4шт.
40
632194R1
BRACKET, beater drive tightener
2шт.
BOLT, 3/8-16 x 3/4 short-sq-nk crg
4шт.
NUT, 3/8-16 hex
4шт.
WASHER, 3/8 med lock
4шт.
41
583619R1
BLOCK
beater drive chain tightener LH
1шт.
42
583620R1
BLOCK
beater drive chain tightener RH
1шт.
BOLT, 5/16-18 x 1 short-sq-nk crg
2шт.
NUT, 5/16-18 hex
2шт.
WASHER, 5/16 med lock
2шт.
43
632190R1
SPROCKET, beater driven, 13T
2шт.
44
155308C1
KEY
1/4 x 1-1/4 sq parallel
2шт.
45
CHAIN, beater drive roller, order 41 links of 1-1/4 in extended pitch agricultural type roller chain from a 10-ft roll marked 569089R91 and one connecting link 587372R91
2шт.
46
654964R1
SHIELD, beater, 36 in row width
2шт.
46
654965R1
SHIELD, beater, 38 in row width
2шт.
46
654966R1
SHIELD, beater, 40 in row width
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 CD or zn-pltd flange whiz lock
12шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 CD or zn-pltd slt-truss-hd whiz lock
12шт.
47
935632R91
COVER ASSY, beater, 36 in row width
2шт.
47
935633R91
COVER ASSY, beater, 38 in row width
2шт.
47
935634R91
COVER ASSY, beater, 40 in row width
2шт.
93807R1
NUT, 5/16-18 C-Z flange whiz lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 C-Z slt-truss-hd
8шт.
48
935885R1
SHIELD, LH beater drive chain
1шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
4шт.
NUT, 5/16-18 hex
4шт.
WASHER, 5/16 med lock
4шт.
49
935886R1
SHIELD, RH beater drive chain
1шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
8шт.
NUT, 5/16-18 hex
8шт.
WASHER, 5/16 med lock
8шт.
50
935887R1
BRACE, beater drive chain shield
2шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
2шт.
NUT, 5/16-18 hex
2шт.
WASHER, 5/16 med lock
2шт.
51
935888R1
ANGLE, beater drive chain shield
2шт.
BOLT, 3/8-16 x 3/4 short-sq-nk crg
2шт.
NUT, 3/8-16 hex
2шт.
WASHER, 3/8 med lock
2шт.
52
634467R1
SIDE, beater LH
2шт.
BOLT, 5/16-18 x 3/4 short-sq-nk crg
8шт.
NUT, 5/16-18 hex
8шт.
632225R1
LOCK NUT
5/16-18 whiz hex lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 slt-truss-hd
8шт.
WASHER, 5/16 med lock
8шт.
53
634468R1
SIDE, beater RH
2шт.
BOLT, 5/16-18 x 3/4 short sq-nk crg
8шт.
NUT, 5/16-18 hex
8шт.
632225R1
LOCK NUT
5/16-18 whiz hex lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1-1/2 slt-truss-hd
8шт.
WASHER, 5/16 med lock
8шт.
54
589928R1
HINGE, auger door LH
1шт.
55
589929R1
HINGE, auger door RH
1шт.
56
589359R1
HINGE, auger door center
1шт.
57
156011C91
BALL BEARING
BEARING ASSY, auger shaft LH relube ball
1шт.
58
156011C91
BALL BEARING
BEARING ASSY, auger shaft RH relube ball
1шт.
59
939460R91
FLANGE
W/65 DEG FITTING, brg
2шт.
60
939461R1
FLANGE
auger shaft brg
2шт.
BOLT, 3/8-16 x 3/4 short-sq-nk crg
6шт.
NUT, 3/8-16 hex
6шт.
WASHER, 3/8 med lock
6шт.
