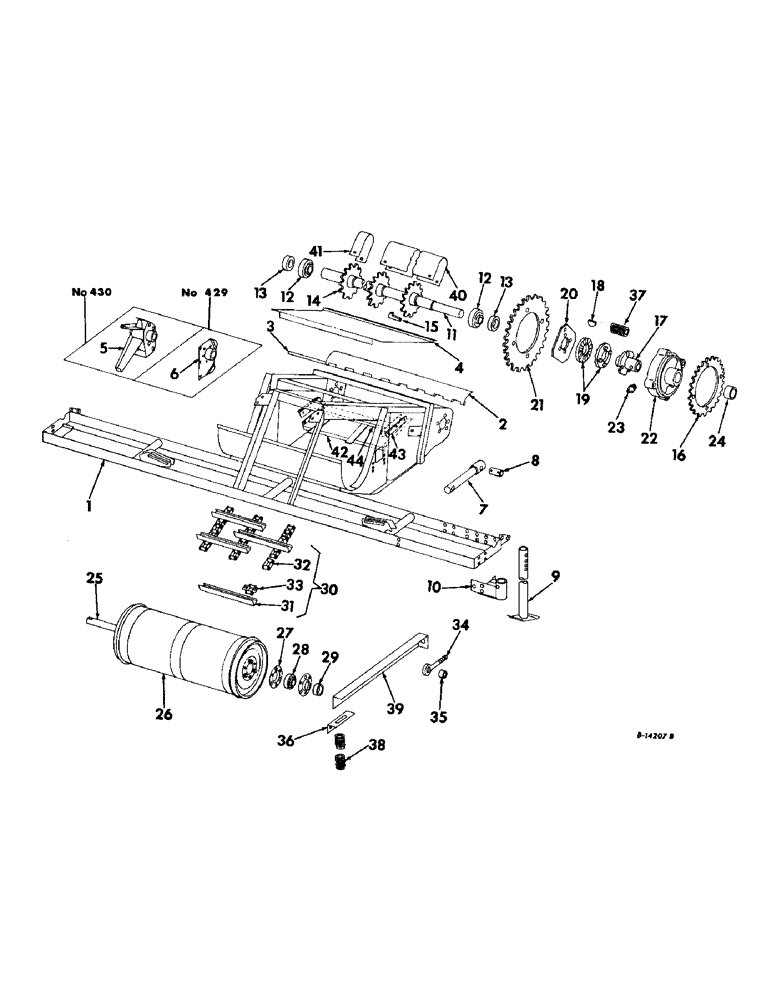

Запчасти Case IH 429 (B-03) - FEEDER FRAME, LIFT, STAND & FEEDER CONVEYOR (58) - ATTACHMENTS/HEADERS

1

589314R91

FRAME ASSY, feeder

1шт.

BOLT, 5/16-18 x 3/4 short sq-nk crg

2шт.

BOLT, 5/16-18 x 1/2 hex-hd mach

4шт.

BOLT, 5/16-18 x 3/4 hex-hd mach

2шт.

NUT, 5/16-18 hex

4шт.

WASHER, 5/16 med lock

4шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

6шт.

2

589305R11

EXTENSION ASSY, feeder frame bottom, 429 corn head

1шт.

2

589229R11

EXTENSION ASSY, feeder frame bottom, 430 corn head

1шт.

BOLT, 5/16-18 x 1/2 hex-hd mach

4шт.

BOLT, 5/16-18 x 3/4 short sq-nk crg

2шт.

NUT, 5/16-18 hex

2шт.

WASHER, 5/16 med lock

6шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.

3

589386R1

ROD

feeder frame bottom extension hinge, 429 corn head

1шт.

3

589528R1

ROD, feeder frame bottom extension hinge, 430 corn head

1шт.

4

589340R91

SHEET ASSY, feeder frame cover

1шт.

5

589344R91

BRACKET ASSY, feeder frame brg left, 430 corn head

1шт.

5

589345R91

BRACKET ASSY, frame brg right, 430 corn head

1шт.

BOLT, 3/8-16 x 1 hex-hd mach

8шт.

BOLT, 3/8-16 x 1-1/4 hex-hd mach

4шт.

BOLT, 1/2-13 x 3 hex-hd mach

4шт.

NUT, 3/8-16 hex

12шт.

NUT, 1/2-13 hex

4шт.

WASHER, 3/8 med lock

12шт.

WASHER, 1/2 med lock

4шт.

6

628734R91

HOUSING ASSY, feeder frame brg left, 429 corn head

1шт.

6

628735R91

HOUSING ASSY, feeder frame brg right, 429 corn head

1шт.

BOLT, 3/8-16 x 1 short sq-nk crg

4шт.

BOLT, 3/8-16 x 1 no. 3 plow

16шт.

NUT, 3/8-16 hex

16шт.

104280

RIVET, 3/8 x 7/8 small F-HD solid

4шт.

104282

RIVET, 3/8 x 1-1/8 small F-HD solid

4шт.

WASHER, 3/8 med lock

16шт.

7

568579R91

EXTENSION ASSY, feeder frame lift cylinder

2шт.

8

564986R1

PIN, feeder frame lift cylinder extension

2шт.

PIN, 3/16 x 1-3/4 cot

4шт.

9

589573R91

STAND ASSY

2шт.

10

589576R91

HOLDER ASSY, stand left

1шт.

10

589577R91

HOLDER ASSY, stand right

1шт.

BOLT, 1/2-13 x 1-1/4 short sq-nk crg

12шт.

NUT, 1/2-13 hex

12шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot

2шт.

WASHER, 1/2 med lock

12шт.

11

935857R1

SHAFT, feeder conveyor, 429 corn head

1шт.

11

653861R1

SHAFT, feeder conveyor, 430 corn head

1шт.

12

256557R91

BEARING

feeder conveyor shaft ball

2шт.

13

557113R11

COLLAR

W/SET SCREW, lkg

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt set

2шт.

14

937243R1

SPROCKET, feeder conveyor chain drive, 11T

3шт.

15

Q63932

KEY, feeder conveyor chain drive gib

3шт.

16

589382R1

SPROCKET, main drive 29T

1шт.

17

589379R91

HUB

HOLDER ASSY, feeder conveyor drive slip clutch

1шт.

PIN, 1/8 x 3/4 cot

1шт.

V4941/2

PIN

5/16 x 2 std-hd

1шт.

18

117988

KEY

5/16 x 2-1/8 Woodruff 28

1шт.

19

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch feeder conveyor drive

2шт.

20

589381R1

RETAINER, feeder conveyor drive slilp clutch

1шт.

19836R1

BOLT, 1/2-13 x 3-3/4 dld sq-nk crg

4шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13 slt hex

4шт.

PIN, 3/32 x 1 cot

4шт.

WASHER, 17/32 x 1-1/4 x 16 ga

4шт.

21

935867R1

SPROCKET, feeder driven 38T

1шт.

BOLT, 3/8-16 x 3 hex-hd mach

4шт.

NUT, 3/8-16 hex

4шт.

WASHER, 3/8 med lock

4шт.

22

589384R11

HUB ASSY, feeder driven

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS-3/4 str lub

1шт.

24

18519K

BUSHING

feeder driven and main drive

1шт.

25

589372R1

SHAFT, feeder conveyor drum

1шт.

17968R1

BOLT, 3/8-16 x 8 dld hex-hd mach

2шт.

109886

NUT

3/8-16 slt hex

2шт.

PIN, 3/32 x 1 cot

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

6шт.

26

589363R92

DRUM ASSY, feeder conveyor

1шт.

WASHER, 3/8 med lock

6шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 ESNA stop

6шт.

27

629958R1

FLANGE

feeder conveyor drum brg

4шт.

28

564991R91

BEARING

feeder conveyor drum ball

2шт.

29

658006R11

COLLAR

W/SET SCREW, lkg

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd cup-pt set

2шт.

30

589367R91

CHAIN W/SLATS, feeder conveyor

1шт.

31

589370R1

SLAT, feeder conveyor chain

30шт.

RIVET, 1/4 x 1/2 small F-HD solid

120шт.

32

587371R92

NO LONGER SERVICED

LINK, feeder conveyor chain connecting

1шт.

33

589656R91

LINK

ASSY, feeder conveyor chain att

1шт.

34

589733R1

BOLT, feeder conveyor chain tightener eye

2шт.

BOLT, 1/2-13 x 1-3/4 sq-nk crg

2шт.

NUT, 1/2-13 hex

2шт.

NUT, 1/2-13 hex jam

4шт.

WASHER, 1/2 med lock

4шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

2шт.

3019

NUT

WASHER, 17/32 sq x 1-1/4 x 14 ga

2шт.

35

48193K

SPACER, feeder conveyor chain tightener eye bolt

2шт.

36

589377R1

ANGLE, feeder conveyor drum bracket

2шт.

BOLT, 3/8-16 x 1 short sq-nk crg

4шт.

NUT, 3/8-16 hex

4шт.

WASHER, 3/8 med lock

4шт.

Q1505

WASHER

13/32 x 1 x 16 ga

4шт.

37

311

SPRING

conveyor drive slip clutch

4шт.

38

PO144

SPRING

conveyor idler shaft

4шт.

39

589385R91

ANGLE ASSY, feeder conveyor drum

2шт.

40

937165R1

SHIELD, feeder shaft center, for machines w/o 152529C1

2шт.

40

152528C1

SHIELD, feeder shaft center, for machines w/152529C1

2шт.

BOLT, 5/16-18 x 1/2 short sq-nk crg

12шт.

NUT, 5/16-18 hex

12шт.

41

937166R1

SHIELD, feeder shaft end, for machines w/o 152529C1

2шт.

41

152520C1

SHIELD, feeder shaft end, for machines w/152529C1

2шт.

BOLT, 5/16-18 x 1/2 short sq-nk crg

8шт.

NUT, 5/16-18 hex

8шт.

WASHER, 5/16 med lock

8шт.

42

152529C91

SHIELD ASSY, feeder conveyor chain

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

43

152522C1

STRAP, feeder shaft shield channel, 430 corn head

2шт.

44

152525C91

CHANNEL ASSY, feeder shaft shield

1шт.
