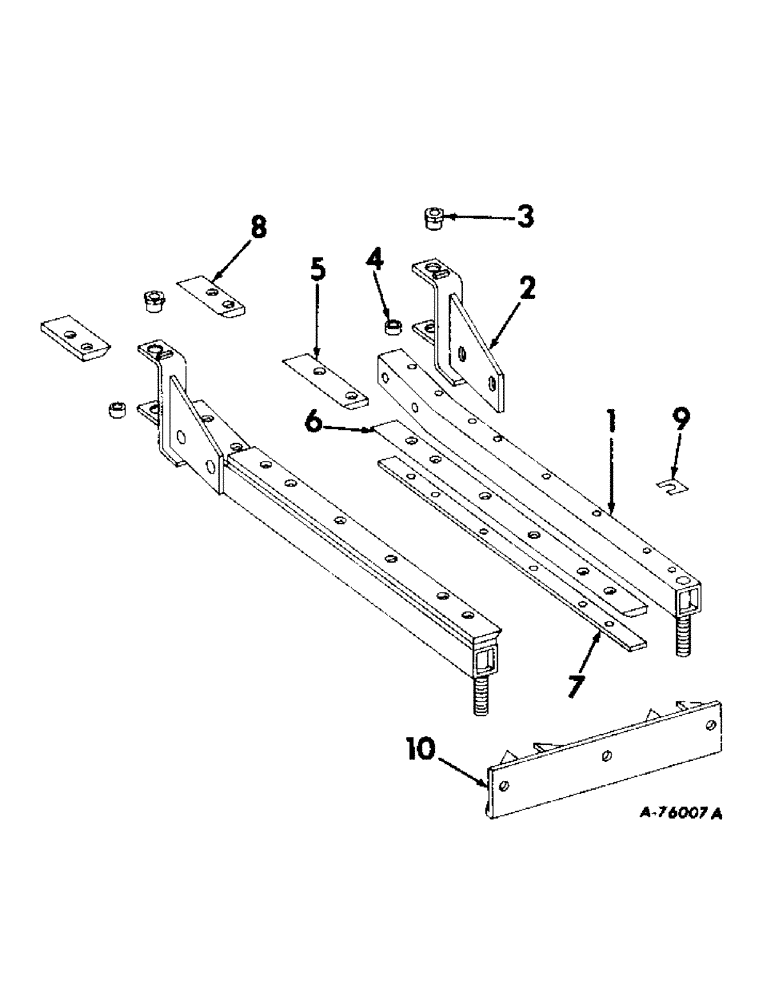

Запчасти Case IH 429 (B-26) - WEED KNIFE ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

631034R91

PIPE ASSY, weed knife retainer LH

4шт.

1

631035R91

PIPE ASSY, weed knife retainer RH

4шт.

632600R1

NUT, 3/4-10 nylock hex

16шт.

462248R1

LOCK NUT

3/4-10 two way lock

16шт.

WASHER, 3/4 med lock

8шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

16шт.

2

631025R91

BRACKET ASSY, weed knife front LH

4шт.

2

631026R91

BRACKET ASSY, weed knife front RH

4шт.

BOLT, 7/16-14 x 2-1/2 sq-nk crg

16шт.

NUT, 7/16-14 hex

24шт.

102908

BOLT

SCREW, 7/16-14 x 1-1/4 sq-hd cup-pt set

4шт.

SCREW, 1/2-20 x 4-1/4 hex-hd cap

8шт.

WASHER, 7/16 med lock

16шт.

WASHER, 1/2 med lock

8шт.

PO105341/2

WASHER, 15/32 x 1-1/2 x 11 ga

16шт.

3

589962R1

NUT

weed knife front bracket spacer

8шт.

4

576254R1

SPACER, weed knife front bracket inner

8шт.

5

589966R1

KNIFE, center LH weed

4шт.

5

589967R1

KNIFE, center RH weed

4шт.

BOLT, 3/8-16 x 2-1/2 no 3 plow

16шт.

NUT, 3/8-16 hex

16шт.

WASHER, 3/8 med lock

16шт.

6

589968R1

KNIFE, rear weed

8шт.

BOLT, 3/8-16 x 2-3/4 no 3 plow

48шт.

NUT, 3/8-16 hex

48шт.

WASHER, 3/8 med lock

48шт.

7

935650R1

STRAP, rear weed knife

8шт.

8

589698R1

KNIFE, front LH weed

4шт.

8

589699R1

KNIFE ASSY

KNIFE, front RH weed

4шт.

BOLT, 3/8-16 x 1-1/4 no 3 plow

16шт.

NUT, 3/8-16 hex

16шт.

WASHER, 3/8 med lock

16шт.

9

589713R1

SHIM

WASHER, weed knife

160шт.

10

631031R91

ANGLE ASSY, weed knife pivot

4шт.

BOLT, 1/2-13 x 1-1/4 short-sq-nk crg

12шт.

NUT, 1/2-13 hex

12шт.

WASHER, 1/2 med lock

12шт.
