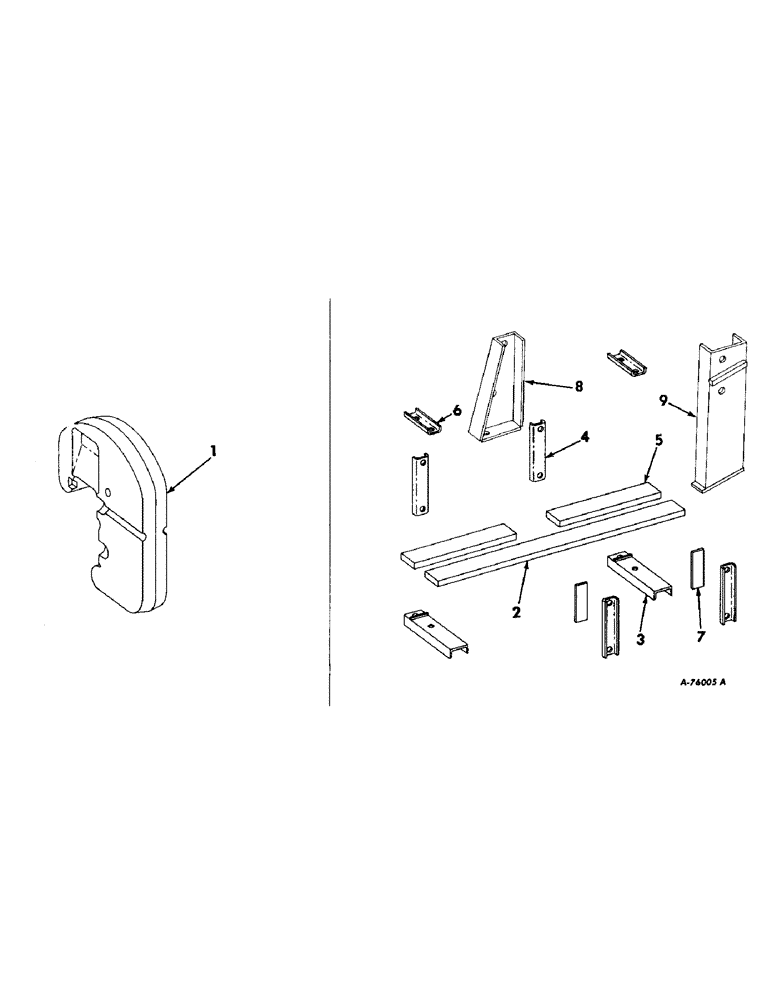

Запчасти Case IH 429 (B-23) - COUNTER BALANCE ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

589939R1

WEIGHT, guide wheel axle, 151 & 181 combines

10шт.

BOLT, 1/2-13 x 9-1/2 hex-hd mach

2шт.

BOLT, 1/2-13 x 11-1/4 hex-hd mach

2шт.

NUT, 1/2-13 hex

4шт.

WASHER, 1/2 med lock

4шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

8шт.

2

155611C1

BAR, counter balance weight long, 403 and 503 combines

8шт.

3

654328R11

CHANNEL ASSY, counter balance weight lower, 403 & 503 combines

2шт.

4

654329R1

CHANNEL, counter balance weight tie, 403 & 503 combine

4шт.

20062R1

BOLT, 5/8-11 x 14-1/2 hex-hd mach

4шт.

NUT, 5/8-11 hex

4шт.

WASHER, 5/8 med lock

4шт.

5

654330R1

BAR, counter balance weight short, 403 & 503 combine

8шт.

6

654331R1

CHANNEL, counter balance weight upper, 403 & 503 combine

2шт.

BOLT, 5/8-11 x 7-1/2 hex-hd mach

4шт.

NUT, 5/8-11 hex

4шт.

WASHER, 5/8 med lock

4шт.

7

654445R1

FILLER, counter balance weight, 403 & 503 combine

6шт.

8

153575C91

SUPPORT ASSY, counter balance weight, 403 & 503 combines

1шт.

9

153578C91

CHANNEL ASSY, counter balance weight RH, 403 & 503 combines

1шт.
