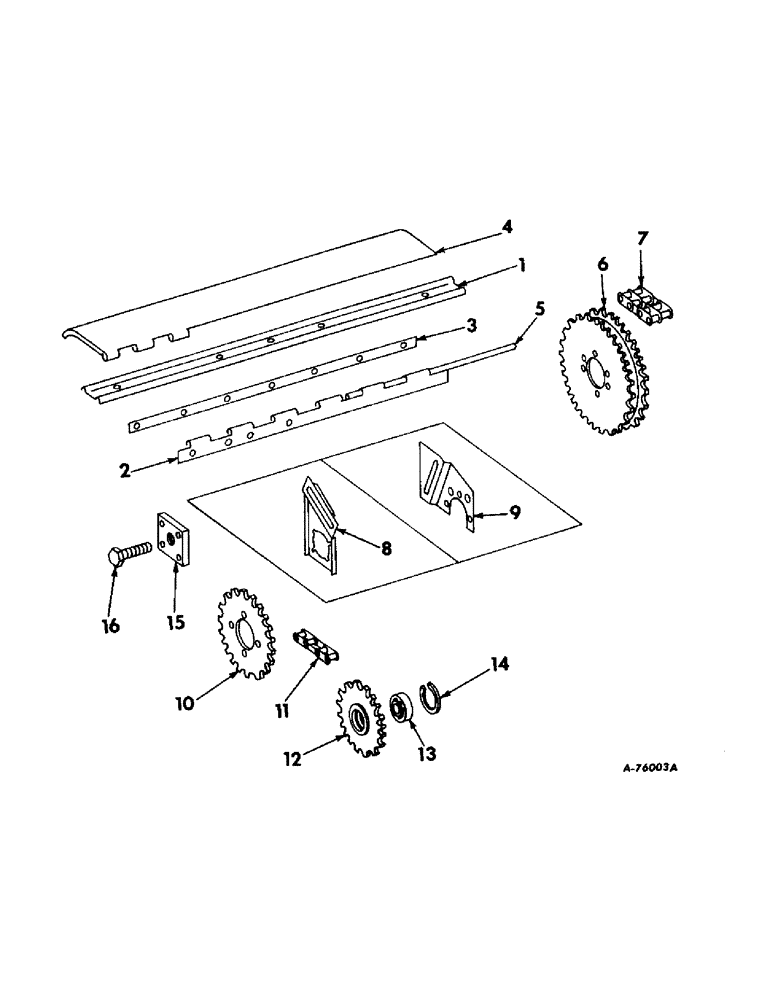

Запчасти Case IH 429 (B-21) - COMPLETING PARTS (58) - ATTACHMENTS/HEADERS

1

586214R1

STRIP, cylinder filler, 429 corn head for 151 combine

8шт.

1

633611R1

BAR

STRIP, cylinder filler, 429 corn head for 403 combine

8шт.

1

589602R1

STRIP, cylinder filler, 430 corn head for 181 combine

8шт.

1

633622R1

STRIP, cylinder filler, 430 corn head for 503 combine

8шт.

NUT, 3/8-24 hex

32шт.

SCREW, 3/8-24 x 1 hex-hd cap

32шт.

WASHER, 3/8 med lock

32шт.

2

589037R1

HINGE, concave front extension, 429 corn head for 151 combine

1шт.

2

589525R1

HINGE, concave front extension, 430 corn head for 181 combine

1шт.

3

589034R1

STRAP, concave front extension, 429 corn head for 151 combine

1шт.

NUT, 3/8-24 hex

6шт.

SCREW, 3/8-24 x 1-1/4 hex-hd cap

6шт.

WASHER, 3/8 med lock

6шт.

3

632403R1

BAR

STRAP, concave front extension hinge, 429 corn head for 403 combine

1шт.

SCREW, 1/2-20 x 1 hex-hd cap

6шт.

WASHER, 1/2 med lock

6шт.

3

589527R1

STRAP, concave front extension hinge, 430 corn head for 181 combine

1шт.

NUT, 3/8-24 hex

9шт.

SCREW, 3/8-24 x 1-1/4 hex-hd cap

9шт.

WASHER, 3/8 med lock

9шт.

4

629649R91

EXTENSION ASSY, concave front, 429 corn heads

1шт.

4

589523R91

EXTENSION ASSY, concave front, 430 corn heads

1шт.

5

589386T1

ROD, concave front extension hinge, 429 corn head for 151 combine

1шт.

5

589528R1

ROD, concave front extension hinge, 430 corn head for 181 combine

1шт.

6

569202R2

DRIVE SPROCKET

SPROCKET, cylinder drive, 43T

1шт.

589741R1

SCREW, 3/8-16 x 1-1/4 hex-hd cap

6шт.

7

CHAIN, cylinder drive extension, order 11 links of 3/4 in std pitch double roller chain from a 10-ft roll marked 1355D, one two pitch combination offset link 570988R91 & three connecting links 569206R91

1шт.

8

589374R91

BRACKET ASSY, feeder drive tightener sprocket, 429 corn head for 151 combine and 430 corn head for 181 combine

1шт.

NUT, 7/8-9 hex

1шт.

SCREW, 7/8-9 x 3-1/2 hex-hd cap

1шт.

WASHER, 7/8 med lock

1шт.

PO12898

WASHER

29/32 x 1-1/2 x 11 ga

7шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

1шт.

9

634631R1

BRACKET, feeder drive tightener sprocket, 429 corn head for 403 combine and 430 corn head for 503 combine

1шт.

BOLT, 7/8-9 x 3 sq-nk crg

1шт.

NUT, 7/8-9 hex

1шт.

SCREW, 1/2-13 x 1 hex-hd cap

3шт.

WASHER, 1/2 med lock

3шт.

WASHER, 7/8 med lock

1шт.

PO12896

WASHER, 29/32 x 1-1/2 x 11 ga

4шт.

Q140

WASHER

1-7/32 x 2 x 16 ga

3шт.

936627R1

WASHER, 17/32 x 2 x 16 ga

1шт.

10

589362R1

SPROCKET, feeder drive, 21T

1шт.

NUT, 3/8-24 hex

4шт.

SCREW, 3/8-24 x 1-1/2 hex-hd cap

4шт.

WASHER, 3/8 ext-tooth lock

4шт.

11

CHAIN, feeder drive roller, order 101 link of 1 in std pitch roller chain from a 10-ft roll marked 1794D, one offset link 1398D and one connecting link 1397D

1шт.

12

589538R91

SPROCKET ASSY.

SPROCKET ASSY, feeder drive idler, 17T

1шт.

13

580095R91

BALL BEARING

BEARING, feeder drive idler sprocket

1шт.

14

555602R1

RING

feeder drive idler sprocket snap

1шт.

15

631189R1

BLOCK, cylinder beater driven pulley, 429 corn head for 151 combine and 430 corn head for 181 combine

1шт.

BOLT, 5/8-11 x 4 hex-hd mach

4шт.

NUT, 5/8-11 hex

4шт.

16

631190R1

BOLT, puller block

1шт.
