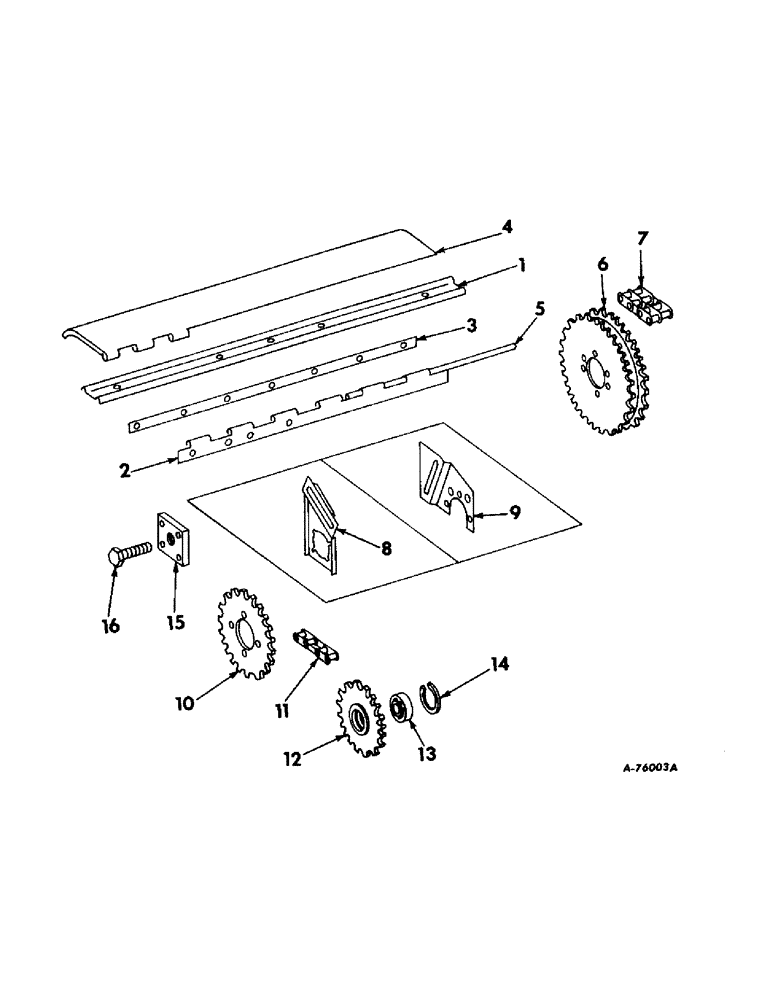

Запчасти Case IH 429 (B-21[A]) - COMPLETING PARTS FOR WINDROW SPECIAL COMBINE (58) - ATTACHMENTS/HEADERS

632582R1

COVER, feed beater brg hole, 429 and 430 corn heads for 403 and 503 windrow special combines

1шт.

BOLT, 5/16-18 x 3/4 short-sq-nk crg

6шт.

NUT, 5/16-18 hex

6шт.

WASHER, 5/16 med lock

6шт.

631404R91

CYLINDER ASSY, feeder frame hydraulic lift, 429 and 430 corn heads for 403 and 503 windrow special combines

1шт.

Consists of (1) barrel 631513R91, (1) O-ring 253968R1, (1) O-ring 570828R1, (1) plug 9410359, (1) ring 631621R1, (1) rod 631514R1, (1) seal 631620R1, (1) washer 631622R1

1шт.

CHAIN, feeder drive extension roller, 429 and 430 corn heads for 403 and 503 windrow special combines, use 13 links of 1-1/4 in std pitch roller chain from a 10-ft roll marked 1794D, one 1398D offset connecting link and one 1397D connecting link

1шт.
