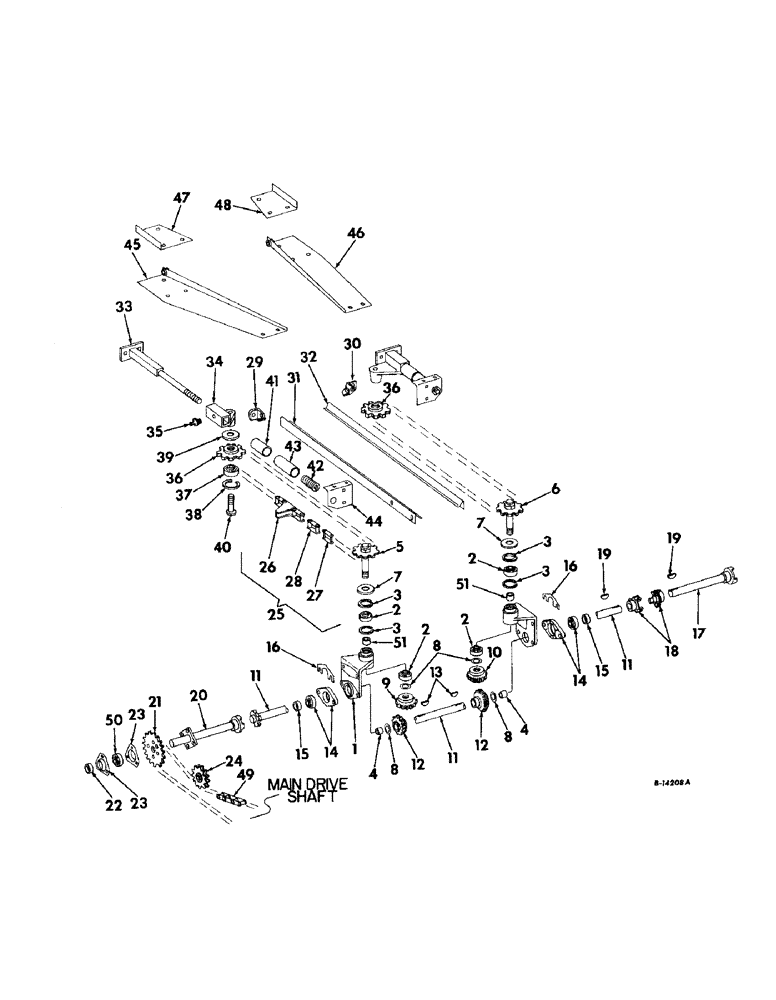

Запчасти Case IH 429 (B-15) - GATHERER DRIVE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
654275R1
HOUSING, gatherer drive brg
8шт.
SCREW, 7/16-14 x 3/4 hex-hd cap
16шт.
WASHER, 7/16 med lock
16шт.
2
586609R91
BALL BEARING
BEARING, gatherer drive ball
16шт.
3
555602R1
RING
gatherer drive brg snap
16шт.
4
654385R1
SPACER,26.21mm ID x 31.75mm OD x 19.05mm L
gatherer drive brg
8шт.
5
654276R92
SPROCKET ASSY, gather chain drive left 8T
4шт.
615226R1
WASHER
1-1/32 x 1-1/2 x 22 ga
4шт.
6
654277R92
SPROCKET ASSY, gather chain drive right 8T
4шт.
615226R1
WASHER
1-1/32 x 1-1/2 x 22 ga
4шт.
7
654284R1
WASHER
gatherer driven shaft cup
8шт.
8
654283R1
THRUST WASHER
gatherer drive bevel gear and sprocket
28шт.
9
654280R1
PINION
GEAR, gatherer driven bevel LH thd 18T
4шт.
10
654281R1
PINION
GEAR, gatherer driven bevel RH thd 18T
4шт.
11
654948R91
SHAFT ASSY, gatherer drive inner
2шт.
11
654950R91
SHAFT ASSY, gatherer drive outer
2шт.
12
935611R1
PINION
GEAR, gatherer drive bevel, 18T
8шт.
13
118000
WOODRUFF KEY,#27, 1/4" x 2 1/8", HT
KEY, 1/4 x 2-1/8 Woodruff 27
8шт.
14
654289R11
HOUSING ASSY.
HOUSING W/BRG, gatherer drive outer
8шт.
SCREW, 3/8-16 x 1-1/2 hex-hd cap
16шт.
WASHER, 3/8 med lock
16шт.
15
455102R11
COLLAR
W/SET SCREW, gatherer drive brg lkg
8шт.
16
654288R1
SHIM, gatherer drive bevel gear
16шт.
17
589810R91
SHAFT ASSY, gatherer drive inner
1шт.
COUPLING, 36 in row width
2шт.
17
589587R91
SHAFT ASSY, gatherer drive inner
1шт.
COUPLING, 38 in row width
2шт.
17
589585R91
SHAFT ASSY, gatherer drive inner
1шт.
COUPLING, 40 in row width
2шт.
18
589477R1
COUPLING, gatherer drive shaft female
4шт.
BOLT, 1/2-13 x 2-1/4 hex-hd mach
4шт.
NUT, 1/2-13 hex
4шт.
WASHER, 1/2 med lock
4шт.
19
103463
KEY, 3/16 x 2-1/8 Woodruff 26
4шт.
20
589808R91
SHAFT ASSY, gatherer drive outer coupling, 36 in row width
2шт.
20
589595R91
SHAFT ASSY, gatherer drive outer coupling, 38 in row width
2шт.
20
589593R91
SHAFT ASSY, gatherer drive outer coupling, 40 in row width
2шт.
21
589600R1
SPROCKET, gatherer driven 24T
2шт.
BOLT, 3/8-16 x 1-1/4 hex-hd mach
8шт.
NUT, 3/8-16 hex
8шт.
WASHER, 3/8 med lock
8шт.
22
455102R11
COLLAR
W/SET SCREW, coupling shaft brg lkg
2шт.
23
571424R1
FLANGE
gatherer outer coupling shaft bearing
4шт.
BOLT, 5/16-18 x 3/4 short sq-nk crg
6шт.
NUT, 5/16-18 hex
6шт.
WASHER, 5/16 med lock
6шт.
24
582389R91
DRIVE SPROCKET
SPROCKET, gatherer drive idler
2шт.
BOLT, 5/8-11 x 3 sq-nk crg
2шт.
NUT, 5/8-11 hex
2шт.
WASHER, 5/8 med lock
2шт.
WASHER, 21/32 x 1-1/4 x 11 ga
2шт.
10620P
WASHER
21/32 x 1-1/2 x 16 ga
2шт.
575810R1
WASHER
21/32 x 1-1/2 x 11 ga
12шт.
25
654164R91
CHAIN (AG)
CHAIN W/FLIGHTS, gatherer
8шт.
26
935619R91
GATHERING CHAIN
SECTION W/ATTACHING LINK, gatherer chain
1шт.
27
587371R92
NO LONGER SERVICED
LINK W/SPRING CLIP, gatherer chain connecting 1-1/2 in extended pitch
1шт.
28
450423R91
LINK, gatherer chain roller 1-1/2 in extended pitch
1шт.
29
937173R1
GUIDE, gatherer chain left
4шт.
BOLT, 3/8-16 x 1 hex-hd mach
4шт.
NUT, 3/8-16 hex
4шт.
WASHER, 3/8 med lock
4шт.
30
937174R1
GUIDE, gatherer chain right
4шт.
BOLT, 3/8-16 x 1 hex-hd mach
4шт.
NUT, 3/8-16 hex
4шт.
WASHER, 3/8 med lock
4шт.
31
589922R3
GUIDE, gatherer chain left holddown
4шт.
BOLT, 5/16-18 x 1 short sq-nk crg
28шт.
NUT, 5/16-18 hex
28шт.
WASHER, 5/16 med lock
28шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
2шт.
32
589923R3
GUIDE, gatherer chain right holddown
4шт.
BOLT, 5/16-18 x 1 short sq-nk crg
28шт.
NUT, 5/16-18 hex
28шт.
WASHER, 5/16 med lock
28шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
2шт.
33
632172R91
SHAFT ASSY, gatherer carrier
8шт.
BOLT, 3/8-16 x 1 short sq-nk crg
16шт.
18549R1
NUT,7/8"-9, GB
7/8-9 ESNA stop
8шт.
NUT, 3/8-16 hex
16шт.
425-1414
JAM NUT,Jam, 7/8"-9, G5
16шт.
WASHER, 3/8 med lock
16шт.
WASHER, 7/8 med lock
8шт.
Q1505
WASHER
13/32 x 1 x 16 ga
16шт.
615196R1
WASHER
29/32 x 1-3/4 x 11 ga
16шт.
34
654332R2
CARRIER, gatherer sprocket
8шт.
35
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
8шт.
36
654333R1
SPROCKET ASSY.
SPROCKET, gatherer idler, 8T
8шт.
37
586156R91
BEARING
gatherer idler sprocket ball
8шт.
38
357323R1
RING, SNAP
RING, gatherer idler sprocket brg snap
8шт.
39
935331R1
WASHER
gatherer idler sprocket cup
8шт.
40
586116R1
BOLT,Hex, 3/4" - 10 x 2 1/2"
gatherer idler sprocket
8шт.
WASHER, 3/4 int-tooth lock
8шт.
575813R1
WASHER
25/32 x 1-1/4 x 11 ga
8шт.
Q3501
WASHER
25/32 x 1-1/4 x 16 ga
8шт.
41
632189R1
SPACER, gatherer carrier shaft
8шт.
42
544
CANVAS
SPRING, gatherer carrier shaft
8шт.
43
589856R1
SPACER, gatherer carrier shaft spring
8шт.
44
632185R1
BRACKET, gatherer carrier shaft left
4шт.
44
632186R1
BRACKET, gatherer carrier shaft right
4шт.
BOLT, 3/8-16 x 2-1/2 sq-nk crg
8шт.
NUT, 3/8-16 hex
8шт.
WASHER, 3/8 med lock
8шт.
45
632183R11
BRACKET ASSY, gatherer support left
4шт.
BOLT, 3/8-16 x 3/4 short sq-nk crg
16шт.
BOLT, 3/8-16 x 1 short sq-nk crg
4шт.
NUT, 3/8-16 hex
20шт.
WASHER, 3/8 med lock
20шт.
46
632184R11
BRACKET ASSY, gatherer support right
4шт.
BOLT, 3/8-16 x 3/4 short sq-nk crg
16шт.
BOLT, 3/8-16 x 1 short sq-nk crg
4шт.
NUT, 3/8-16 hex
20шт.
WASHER, 3/8 med lock
20шт.
47
632180R1
BRACE, divider outer left
1шт.
BOLT, 3/8-16 x 1 short sq-nk crg
3шт.
NUT, 3/8-16 hex
3шт.
WASHER, 3/8 med lock
3шт.
48
632181R1
BRACE, divider outer right
1шт.
BOLT, 3/8-16 x 1 short sq-nk crg
3шт.
NUT, 3/8-16 hex
3шт.
WASHER, 3/8 med lock
3шт.
49
CHAIN, gatherer drive roller left, order 43 links of 3/4 in pitch std roller chain from a 10-ft roll marked 1793D, one roller link 1316D, one conecting link 1317D and two offset connecting link 1318D
1шт.
49
CHAIN, gatherer drive roller right, order 57 links of 3/4 in pitch std roller chain from a 10-ft roll marked 1793D, one connecting link 1317D and one offset connecting link 1318D
1шт.
50
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
gatherer outer coupling shaft ball
2шт.
51
936643R1
SPACER, gatherer drive bearing
8шт.
