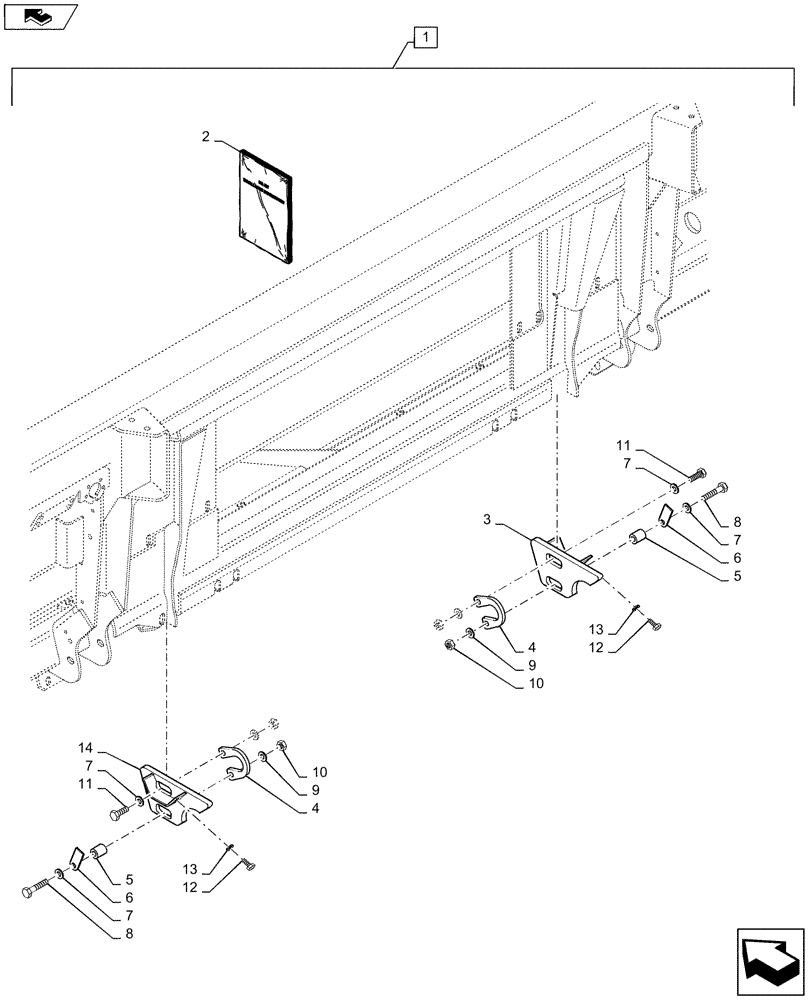

Запчасти Case IH 4208-30 (88.058.12) - DIA, KIT, CENTRAL LATCHING (88) - ACCESSORIES

1

87689161

DIA KIT, HARVESTER

Incl 2 - 14

1шт.

2

87478808

INSTRUCTION

1шт.

3

87755534

SUPPORT

1шт.

4

87689158

SUPPORT

2шт.

5

84015131

BUSHING

2шт.

6

87629907

PLATE

2шт.

7

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

4шт.

8

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

9

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

10

9706685

NUT,M12 x 1.75, Cl 8

4шт.

11

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

12

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

2шт.

13

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

14

87755533

SUPPORT

1шт.
