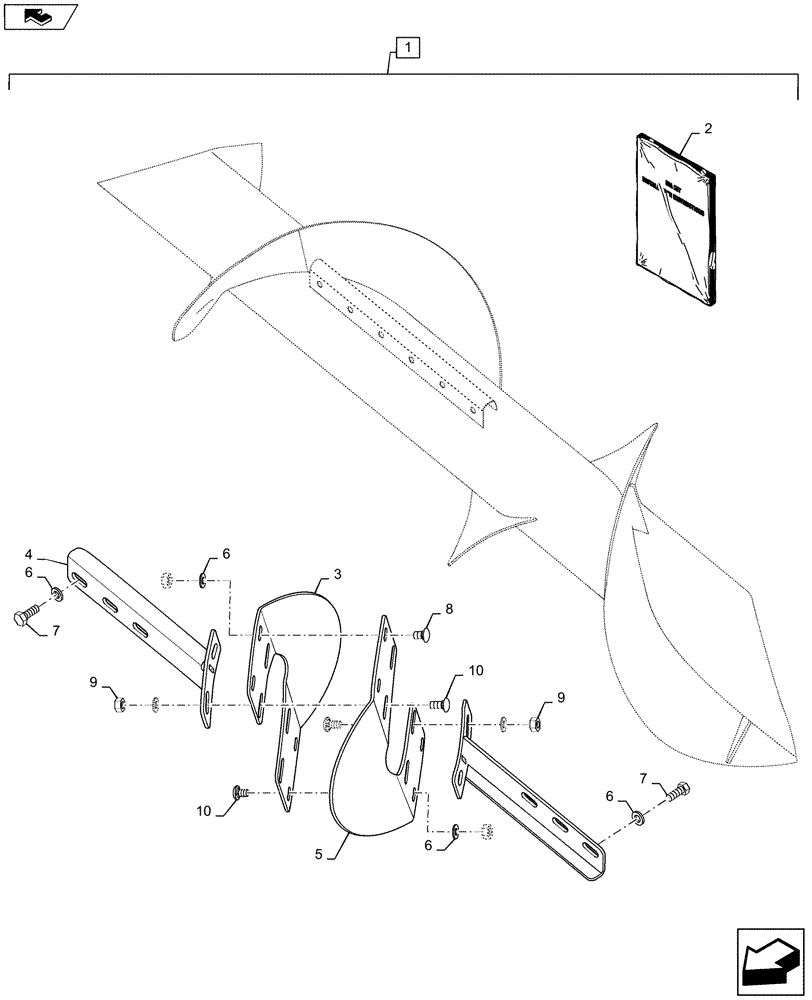

Запчасти Case IH 4208-30 (88.058.03) - DIA, KIT, CENTRAL AUGER DISC (88) - ACCESSORIES

1

84361624

DIA KIT, HARVESTER

Incl 2 - 10

1шт.

2

84364389

INSTRUCTION

1шт.

3

84361590

SUPPORT

1шт.

4

84361592

SUPPORT

1шт.

5

84485727

DISC

2шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

8

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

9

100016

NUT,M10 x 1.5, Cl 8

8шт.

10

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.
