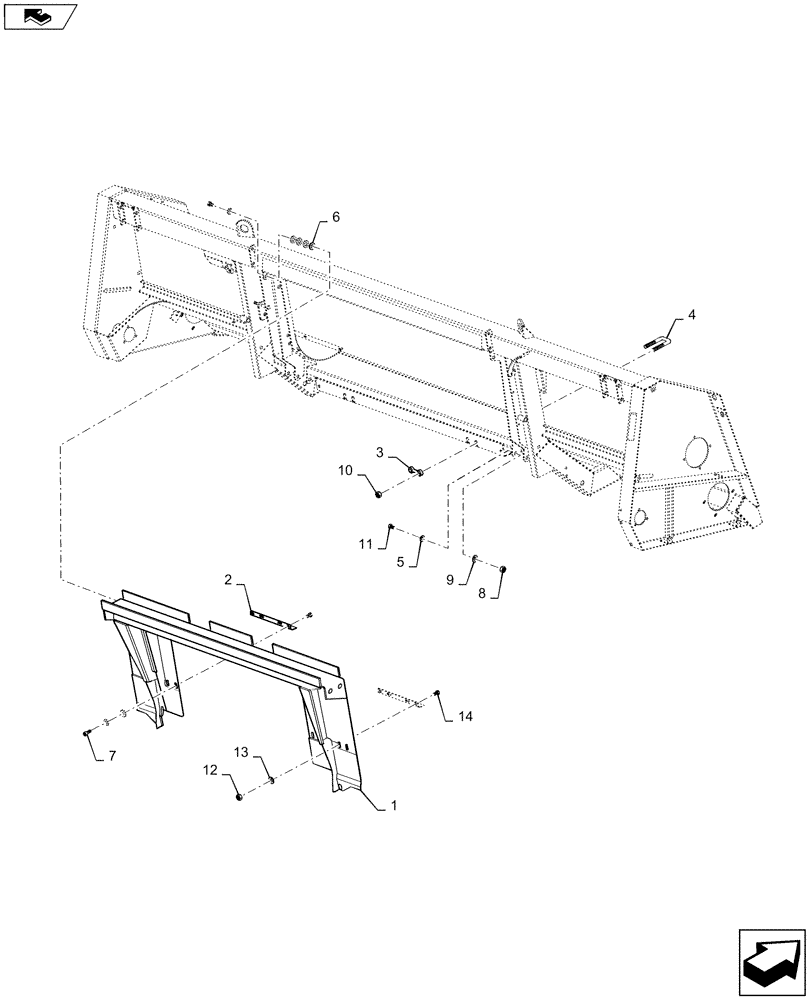

Запчасти Case IH 4208-30 (58.130.AE) - FRAME, ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

87589714

ADAPTER

Transition

1шт.

2

84454948

ANGLE

2шт.

3

86619254

PLATE,100mm L

Feeder Bar

2шт.

4

84455625

U-BOLT

2шт.

5

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

6

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

7

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

8

9706685

NUT,M12 x 1.75, Cl 8

2шт.

9

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

10

86000441

NUT,M16 x 2.0, Cl 8

4шт.

11

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

12

9706690

NUT,M8 x 1.25, Cl 8

8шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

14

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

8шт.
