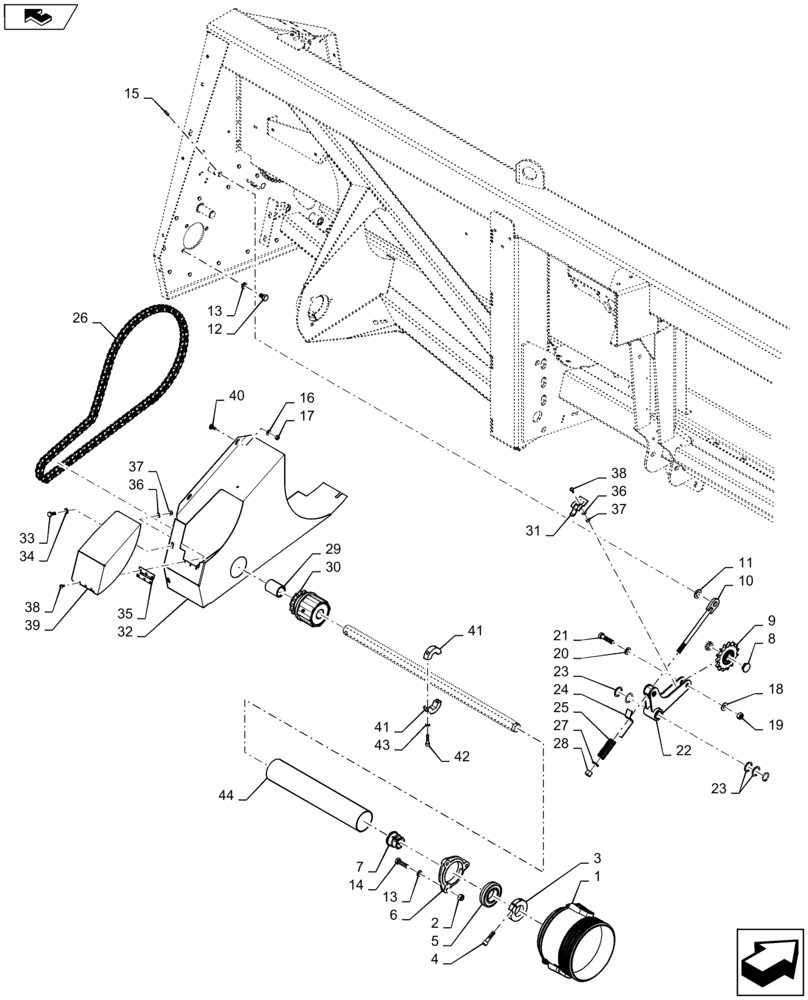

Запчасти Case IH 4208-30 (58.100.AH[03]) - DRIVE, HEADER ASSY, REAR, LH (58) - ATTACHMENTS/HEADERS

1

47511322

SHIELD

1шт.

2

825-11412

NUT,M12 x 1.25, Cl 8

3шт.

3

87750435

LOCKING RING

1шт.

4

14420531

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 10.9

2шт.

5

340411240

SPHERICAL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

6

300019980

SUPPORT

1шт.

7

87750436

BUSHING

1шт.

8

84561546

SPACER,13mm ID x 30mm OD x 10.5mm L

2шт.

9

84980926

SPROCKET

1шт.

10

84977640

THREADED ROD

1шт.

11

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

12

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

13

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

6шт.

14

86637969

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

15

130045

PIN,5mm OD x 26mm L, Slotted

1шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

17

9706690

NUT,M8 x 1.25, Cl 8

5шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

19

9706685

NUT,M12 x 1.75, Cl 8

1шт.

20

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

21

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

22

84977643

IDLER LEVER

1шт.

23

419854

WASHER,26mm ID x 35mm OD x 1mm Thk

8шт.

24

84989032

INDICATOR

1шт.

25

9817602

SPRING

1шт.

26

84559624

CHAIN,#60, 94 Links x 19.05mm = 1790.7mm

1шт.

27

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

28

412126

NUT,M12 x 1.75

1шт.

29

322525550

SLEEVE

1шт.

30

84568959

CLUTCH

1шт.

31

47325

CLIP

1шт.

32

84977651

SHIELD

1шт.

33

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

34

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

35

350083

HINGE

1шт.

36

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

7шт.

37

100012

NUT,M4 x 0.7, Cl 8

7шт.

38

86585706

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

7шт.

39

87520647

COVER

1шт.

40

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

41

84977051

HALF-SHELL

2шт.

42

86531614

HEX SOC SCREW,M8 x 35mm, Cl 12.9

2шт.

43

80681

LOCK WASHER,5/16"

2шт.

44

87395110

SHIELD

1шт.
