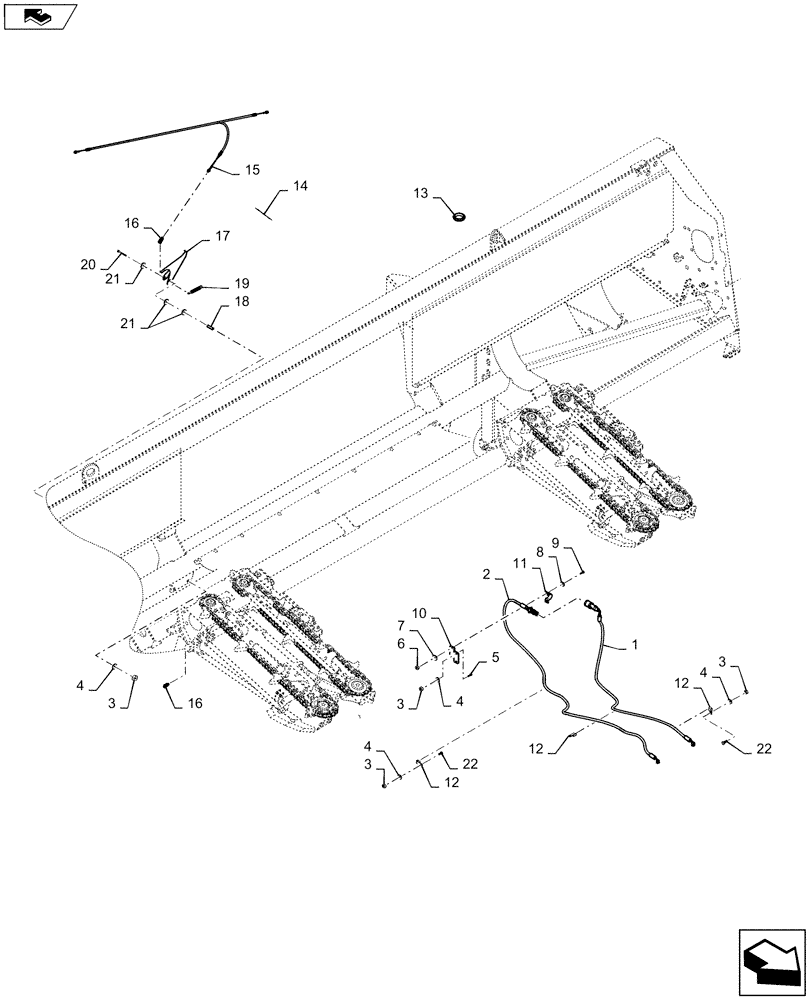

Запчасти Case IH 4206-30 (35.359.AE[01]) - HYDRAULIC, CONTROL, STRIPPER PLATE (35) - HYDRAULIC SYSTEMS

1

86613972

HYDRAULIC HOSE,6.35mm ID x 1830mm L

Control, Hydraulic Assy, Stripper Plate

1шт.

2

86613971

HOSE,6.35mm ID x 2440mm L

Control, Hydraulic Assy, Stripper Plate

1шт.

3

9706690

NUT,M8 x 1.25, Cl 8

6шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

9706755

NUT,M6, Cl 8

2шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

10

87573555

SUPPORT

1шт.

11

86615568

CLAMP

1шт.

12

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

13

84005019

GROMMET

1шт.

14

322442650

DECAL

Indicator

1шт.

15

322442450

CABLE

Control

1шт.

16

322014450

YOKE,M6

Incl 17 - 22

2шт.

17

84977805

INDICATOR

1шт.

18

322442550

SPACER

1шт.

19

350356531

SPRING

Extension

1шт.

20

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

1шт.

21

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.
