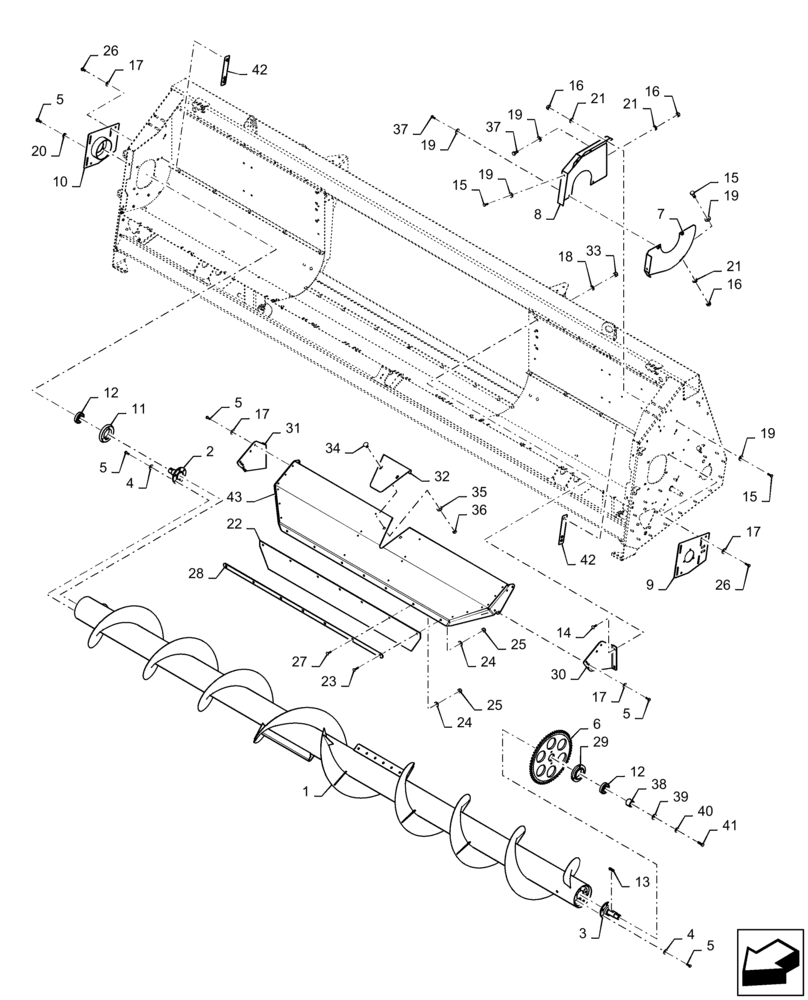

Запчасти Case IH 4206-30 (58.218.AG) - AUGER ASSY (58) - ATTACHMENTS/HEADERS

1

47370071

AUGER

Assy, 6 Row

1шт.

1

87523603

AUGER

Assy, 8 Row

1шт.

2

322529650

SHAFT

Pivot Assy

1шт.

3

322529550

SHAFT

Pivot Assy

1шт.

4

412655

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.6mm Thk

12шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

22шт.

6

84559198

SPROCKET

1шт.

7

47368760

SHIELD

LH Lower

1шт.

8

47368674

SHIELD

LH Upper

1шт.

9

47368594

BRACKET, SUPPORTING

Auger

1шт.

10

47368644

BRACKET, SUPPORTING

Auger

1шт.

11

321140350

FLANGE

Bearing Housing

1шт.

12

84002007

BALL BEARING,35mm ID x 72mm OD x 17mm W

2шт.

13

354775

KEY,10mm x 8mm x 40mm

1шт.

14

84512446

TUBE

4шт.

15

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

16

86625072

NUT,Hex, M6, Cl 10

5шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

18

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

9шт.

20

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

6шт.

21

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

22

84473397

FLEXIBLE SHEATH

1шт.

23

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

4шт.

24

140041

WASHER,M8 x 28mm OD x 3mm Thk

7шт.

25

86629542

NUT,M8 x 1.25, Cl 8.8

7шт.

26

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

27

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

3шт.

28

84473401

SLAT

1шт.

29

87670203

BEARING HOUSING,72 mm ID x 115.5 mm OD

1шт.

30

84488709

SUPPORT

LH

1шт.

31

84473409

SUPPORT

RH

1шт.

32

87721184

PLATE

1шт.

33

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

34

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

35

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

36

9706690

NUT,M8 x 1.25, Cl 8

4шт.

37

86508616

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

3шт.

38

322530150

SPACER

1шт.

39

355511250

WASHER

1шт.

40

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

41

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

42

47486582

BRACKET

Auger Support

4шт.

43

84473410

SHIELD

Center

1шт.
