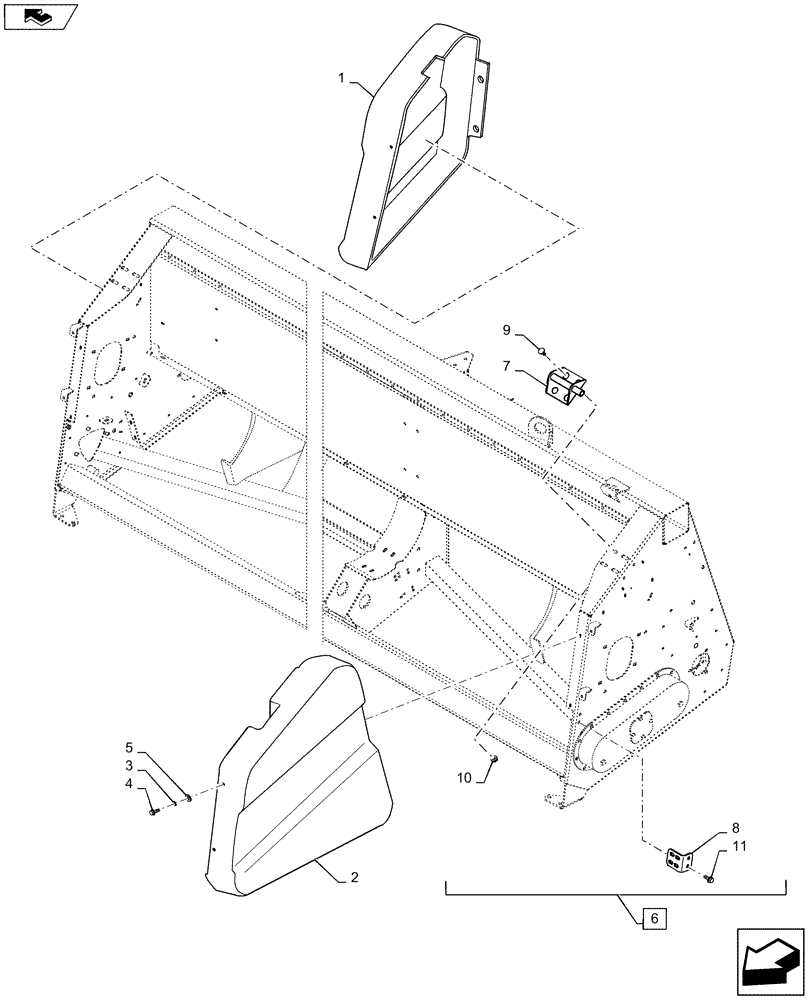

Запчасти Case IH 4206-30 (58.208.AA[03]) - HOOD ASSY, OUTER (58) - ATTACHMENTS/HEADERS

1

47377228

COVER

RH, Outer, 6-Row

1шт.

1

84526085

COVER

RH, Outer, 8-Row

1шт.

2

84526080

COVER

LH, Outer, 6-Row

1шт.

2

84526081

COVER

LH, Outer, 8-Row

1шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

5

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

8шт.

6

NSS

NOT SOLD SEPARAT

Mount Assy, Outer Hood, Incl 7 - 11, 6-Row

1шт.

6

NSS

NOT SOLD SEPARAT

Mount Assy, Outer Hood, Incl 7 - 11, 8-Row

1шт.

7

84541240

SUPPORT

Outer Hood

2шт.

8

84558112

MOUNTING PLATE

Spring

2шт.

9

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

8шт.

10

9804278

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

11

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

6-Row

4шт.

11

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8-Row

12шт.
