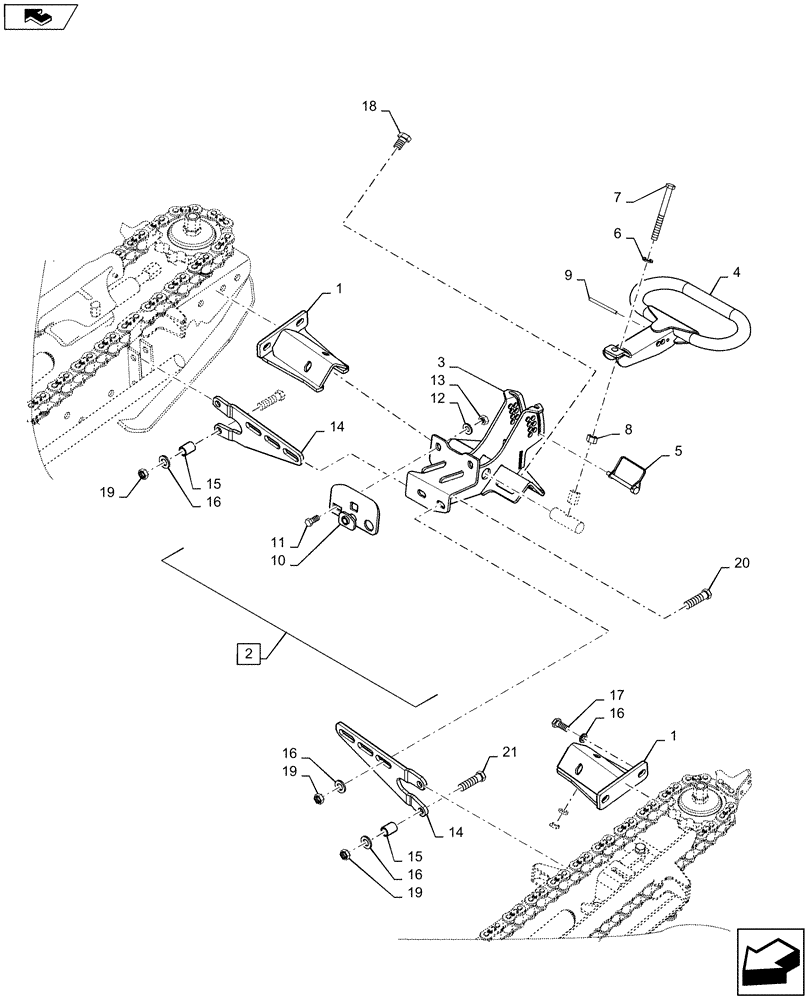

Запчасти Case IH 4206-30 (58.208.AA[02]) - HOOD, SUPPORT, ASSY (58) - ATTACHMENTS/HEADERS

1

84571182

SUPPORT

2шт.

2

NSS

NOT SOLD SEPARAT

Support Assy, Center, Incl 3 - 13

1шт.

3

47490967

SUPPORT

1шт.

4

84570694

ARM

1шт.

5

87711364

PIN,9.53mm OD

Snapper

1шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

7

120118

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8, Full Thd

1шт.

8

412141

NUT,M10 x 1.5, Cl 8

1шт.

9

381929

LOCK PIN,M5 x 60, Slotted

1шт.

10

47490971

PLATE

Striker

1шт.

11

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

13

100016

NUT,M10 x 1.5, Cl 8

2шт.

14

84580920

SUPPORT

2шт.

15

322554950

BUSHING

4шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

17

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

18

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

19

100016

NUT,M10 x 1.5, Cl 8

10шт.

20

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

21

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

4шт.
