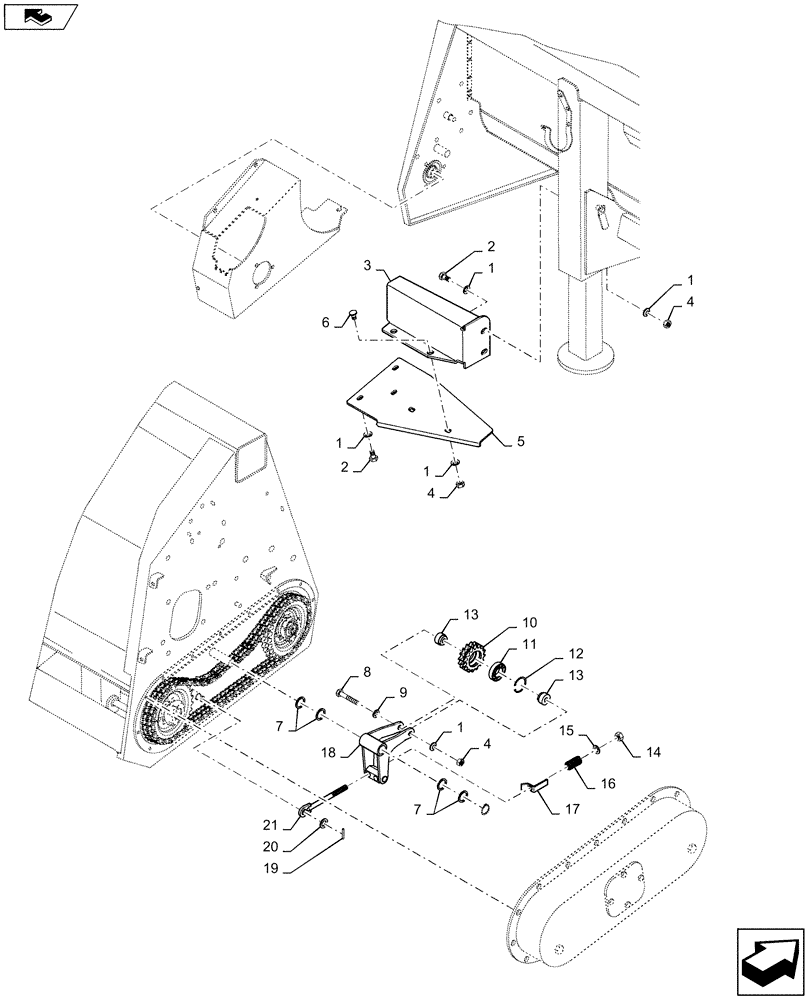

Запчасти Case IH 4206-30 (58.100.AH[02]) - DRIVE, HEADER ASSY, REAR, RH (58) - ATTACHMENTS/HEADERS

1

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

2

120120

BOLT,Hex, M12 x 30mm, Cl 8.8, Full Thd

7шт.

3

47407650

BRACKET

1шт.

4

9706685

NUT,M12 x 1.75, Cl 8

5шт.

5

47407662

BRACKET

1шт.

6

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

7

419854

WASHER,26mm ID x 35mm OD x 1mm Thk

4шт.

8

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

1шт.

9

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

10

84976526

DRIVEN SPROCKET

1шт.

11

210043

BALL BEARING,30mm ID x 62mm OD x 16mm W

1шт.

12

370012

RING,M62, Internal

1шт.

13

84977641

BUSHING

2шт.

14

412126

NUT,M12 x 1.75

1шт.

15

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

16

9817602

SPRING

1шт.

17

84989032

INDICATOR

2шт.

18

84977529

IDLER LEVER

1шт.

19

130045

PIN,5mm OD x 26mm L, Slotted

1шт.

20

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

21

84977640

THREADED ROD

1шт.
