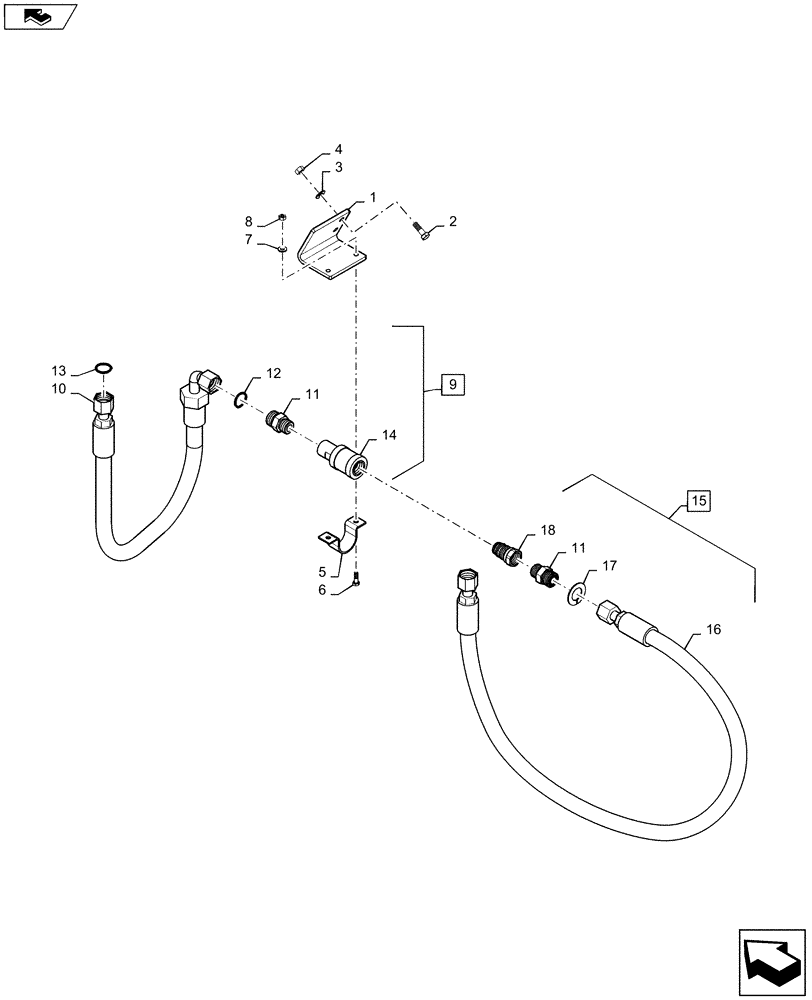

Запчасти Case IH 4206-30 (35.602.AQ) - COUPLING ASSY, QUICK (35) - HYDRAULIC SYSTEMS

1

84387838

BRACKET

1шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

4

9706690

NUT,M8 x 1.25, Cl 8

2шт.

5

86615568

CLAMP

1шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

8

9706755

NUT,M6, Cl 8

2шт.

9

84202218

HYDRAULIC HOSE

Incl 10 - 14

1шт.

10

84149977

HOSE ASSY.

1шт.

11

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Incl 12 - 13

2шт.

12

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

13

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

14

86615561

COUPLING

1шт.

15

84202217

HYDRAULIC HOSE

Incl 11, 16 - 18

1шт.

16

84149976

HOSE ASSY.

1шт.

17

1345266C1

WASHER

1шт.

18

86615558

QUICK MALE COUPLING

1шт.
