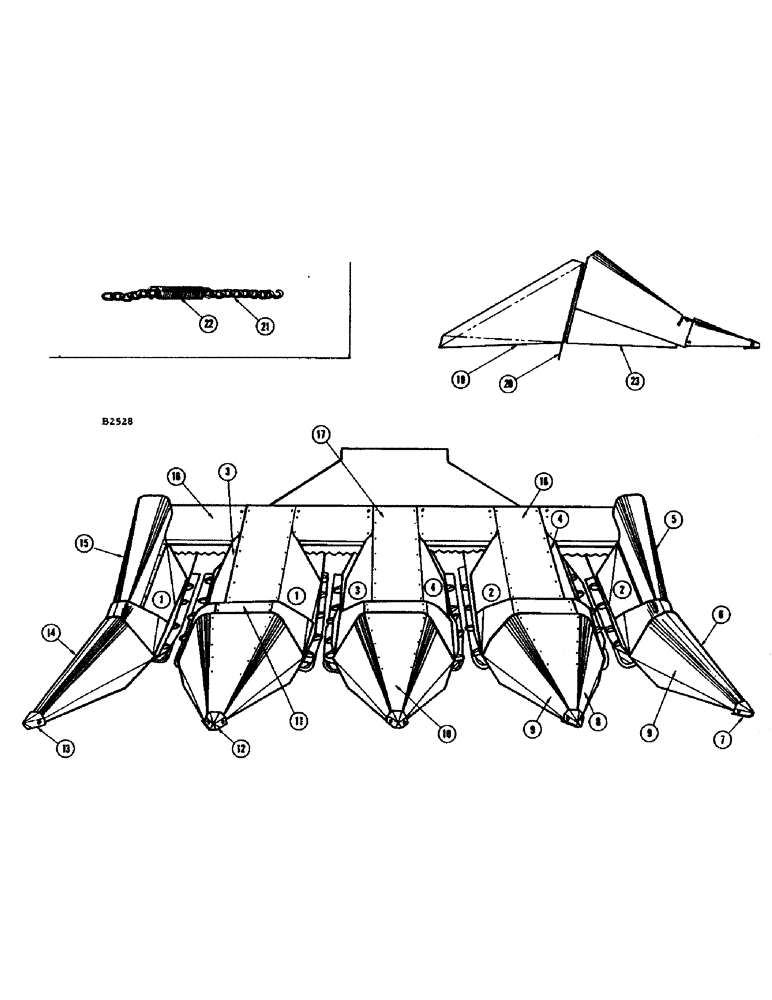

Запчасти Case IH 404 (60) - STALKWAY AND FLOATING POINTS - 404 (58) - ATTACHMENTS/HEADERS

1

F92505

STALK SHEET - outer, R.H.

2шт.

14-656

SCREW,3/8" - 24 x 3 1/2"

BOLT - 3/8" x 3-1/2" N. F. hex., nut (25-116) L.W. (92-6)

5шт.

175-451

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N. F. tr. hd. mach., nut (25-114)

2шт.

2

F92523

STALK SHEET - outer, L.H.

2шт.

COMMODITIES SAME AS FOR REF. 1

1шт.

3

F92990

STALK SHEET - inner, R.H.

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/4" N. F. hex., L.W. (92-6)

2шт.

92-5

LOCK WASHER,5/16"

6шт.

175-451

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1-1/2" N. F. tr. hd. mach., nut (25-114)

2шт.

4

F92991

STALK SHEET - inner, L.H.

2шт.

COMMODITIES SAME AS FOR REF. 3

1шт.

5

F92598

FINISHED SHEET - left

1шт.

77-58

SCREW - 5/16" x 1/2" N. C. tr. hd. mach., nut (25-105)

3шт.

77-412

SCREW

- 1/4" x 3/4" N. C. tr. hd. mach., nut (25-104)

2шт.

77-48

SCREW,Truss, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N. C. tr. hd. mach., nut (25-104)

5шт.

77-512

SCREW

- 5/16" x 3/4" N. C. tr. hd. mach., nut (25-105)

1шт.

6

F92127

POINT - L.H. outer, finish half

1шт.

175-451

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N. F. truss hd. mach.

5шт.

7

F92124

SHOE - skid, L.H. point

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N. F. hex., nut (25-115)

1шт.

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N. F. hex., nut (25-118)

1шт.

8

F92119

POINT - L.H. half

4шт.

9

F92125

POINT - R.H. half

4шт.

F53909

WASHER - vinyl, for skid shoe bolts

8шт.

10

F54044

FILLER - center point, 36"

3шт.

F54045

FILLER - center, point, 38"

3шт.

F54046

FILLER - center point, 40"

3шт.

175-407

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N. F. tr. hd. mach.

30шт.

11

F54037

SHEET - shoulder filler, 36" lower

3шт.

F54039

SHEET - shoulder filler, 38" lower

3шт.

F54042

SHEET - shoulder filler, 40" lower

3шт.

175-412

SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- 5/16" x 1/2" N. C. tr. hd. mach., nut (129-102)

18шт.

12

F92129

SHOE - skid, inner point

3шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N. F. hex., nut (25-115)

3шт.

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- 1/2" x 2" N. F. hex., nut (25-118)

3шт.

13

F92118

SHOE - skid, R.H. point

1шт.

COMMODITIES SAME AS FOR REF. 7.

1шт.

14

F92121

POINT - R.H. outer finish half

1шт.

175-451

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N. F. tr. hd. mach.

5шт.

15

F92597

FINISHED SHEET - right

1шт.

COMMODITIES SAME AS FOR REF. 5.

1шт.

16

F53696

COVER - row beater

4шт.

77-48

SCREW,Truss, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N. F. tr. hd. mach.

24шт.

17

F54009

SHEET - center filler, 36" upper

1шт.

F54010

SHEET - center filler, 38" upper

1шт.

F54041

SHEET - center filler, 40" upper

1шт.

187-459

SCREW - 14A x 3/4" tr. hd. gimlet pt., L.W. (193-57)

14шт.

18

F54036

SHEET - outer filler, 36" upper

2шт.

F54038

SHEET - outer filler, 38" upper

2шт.

F54040

SHEET - outer filler, 40" upper

2шт.

187-459

SCREW - #14A x 3/4" tr. hd. gimlet pt., L.W. (193-57)

28шт.

19

F92152

SHIELD - wheel, R.H.

1шт.

F92154

SHIELD - wheel, L.H.

1шт.

20

F53981

ROD - hinge, wheel shield

2шт.

21

F92122

CHAIN - support, point

5шт.

22

F53984

SPRING - extension, point

5шт.

23

F92527

GUARD - stalk, R.H.

1шт.

F92528

GUARD - stalk, L.H.

1шт.
