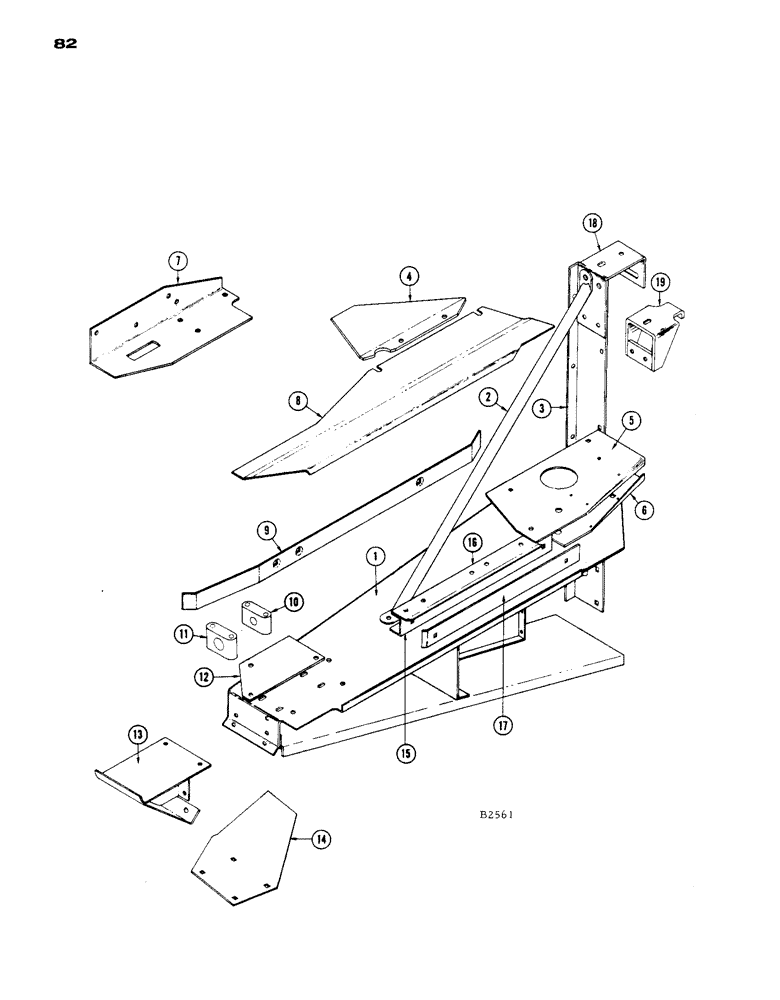

Запчасти Case IH 402 (82) - L.H. INNER ROW, ROWS 2, 3 AND 4 (58) - ATTACHMENTS/HEADERS

1

F92961

MAIN FRAME - inner (Row 2)

1шт.

1

F92961

MAIN FRAME - inner (Rows 3 and 4)

2шт.

111-356

CARRIAGE BOLT

BOLT - 5/8" x 3/4" N. C. rhd. sq. nk. gr. 5 (Row 2)

2шт.

111-356

CARRIAGE BOLT

BOLT - 5/8" x 3/4" N. C. rhd. sq. nk. gr. 5 (Rows 3 and 4)

4шт.

2

F92014

BRACE - upper tube, R.H. (Row 2)

1шт.

2

F92014

BRACE - upper tube, R.H. (Rows 3 and 4)

2шт.

F54461

SPACER - For F92014 (Row 2)

1шт.

14-724

SCREW,Hex, 7/16" - 20 x 1 1/2", Gr 5

BOLT - 7/16" x 1-1/2" N. F. hex. (Row 2)

2шт.

14-724

SCREW,Hex, 7/16" - 20 x 1 1/2", Gr 5

BOLT - 7/16" x 1-1/2" N. F. hex. (Rows 3 and 4)

4шт.

3

F54460

UP-RIGHT - main frame (Row 2)

1шт.

F53549

KIT

UP-RIGHT - main frame (Rows 3 and 4)

2шт.

4

F54472

GUSSET - stripper (Row 2)

1шт.

4

F54472

GUSSET - stripper (Rows 3 and 4)

2шт.

5

F92516

STRIPPER - upper, conveying chain (Row 2)

1шт.

5

F92516

STRIPPER - upper, conveying chain (Rows 3 and 4)

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(Row 2) Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(Rows 3 and 4) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- 5/8" x 3" N. F. hex. (Row 2)

1шт.

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- 5/8" x 3" N. F. hex. (Rows 3 and 4)

2шт.

6

F93059

STRIPPER - lower L.H. conveying chain (Row 2)

1шт.

6

F93059

STRIPPER - lower L.H. conveying chain (Rows 3 and 4)

2шт.

7

F54998

PLATE - upper, gathering chain (Row 2)

1шт.

7

F54998

PLATE - upper, gathering chain (Rows 3 and 4)

2шт.

14-676

BOLT,Hex, 3/8" - 24 x 4-3/4", Gr 5

- 3/8" x 4-3/4" N. F. hex. (Row 2)

4шт.

14-676

BOLT,Hex, 3/8" - 24 x 4-3/4", Gr 5

- 3/8" x 4-3/4" N. F. hex. (Rows 3 and 4)

8шт.

8

F92953

STRIPPER - inner (Row 2)

1шт.

8

F92953

STRIPPER - inner (Rows 3 and 4)

2шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk. (Row 2)

2шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk. (Rows 3 and 4)

4шт.

19-512

NUT

BOLT - 5/16" x 3/4" N. C. #3 hd. plow (Row 2)

2шт.

19-512

NUT

BOLT - 5/16" x 3/4" N. C. #3 hd. plow (Rows 3 and 4)

4шт.

9

F54994

STRIP - wear (Row 2)

1шт.

9

F54994

STRIP - wear (Rows 3 and 4)

2шт.

O3277BF

SPACER (Row)

1шт.

O3277BF

SPACER (Rows 3 and 4)

2шт.

10

F54659

GUIDE - rod (Row 2)

1шт.

10

F54659

GUIDE - rod (Row 4)

2шт.

F54466

GUIDE - rod (Row 3)

2шт.

11

F54692

GUIDE - spring (Row 2)

1шт.

11

F54692

GUIDE - spring (Rows 3 and 4)

2шт.

12

F54990

BRACKET - pivot (Row 2)

1шт.

12

F54990

BRACKET - pivot (Rows 3 and 4)

2шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(Row 2) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(Rows 3 and 4) Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N. F. hex. (Row 2)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N. F. hex. (Rows 3 and 4)

2шт.

13

F92493

PLATE - skid (Row 2)

1шт.

13

F92493

PLATE - skit (Rows 3 and 4)

2шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Row 2) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Rows 3 and 4) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Row 2) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Rows 3 and 4) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

14

F55119

PLATE - skid, R.H. (Row 2)

1шт.

14

F55119

PLATE - skid, R.H. (Rows 3 and 4)

2шт.

15

F54983

SUPPORT - conveying chain hold down (Row 2)

1шт.

15

F54983

SUPPORT - conveying chain hold down (Rows 3 and 4)

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(Row 2) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(Rows 3 and 4) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

16

F55000

HOLD DOWN - conveying chain (Row 2)

1шт.

16

F55000

HOLD DOWN - conveying chain (Rows 3 and 4)

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(Row 2) Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(Rows 3 and 4) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

17

F54984

STRIP - wear, conveyor chain (Row 2)

1шт.

17

F54984

STRIP - wear, conveyor chain (Rows 3 and 4)

2шт.

18-510

BOLT - 5/16" x 5/8" #3 hd. plow (Row 2)

2шт.

18-510

BOLT - 5/16" x 5/8" #3 hd. plow (Rows 3 and 4)

4шт.

18

F53593

CLAMP - upper tube (Rows 3 and 4)

2шт.

118-214

BOLT - 7/16" x 1" #3 hd. plow (Rows 3 and 4)

2шт.

19

F92104

LOCK - clamp, upper tube (Rows 3 and 4)

2шт.

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- 3/8" x 1-1/4" N. F. hex. (Rows 3 and 4)

4шт.

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(Rows 3 and 4) Hex, 1/2"-13 x 3 1/4", G5

2шт.
