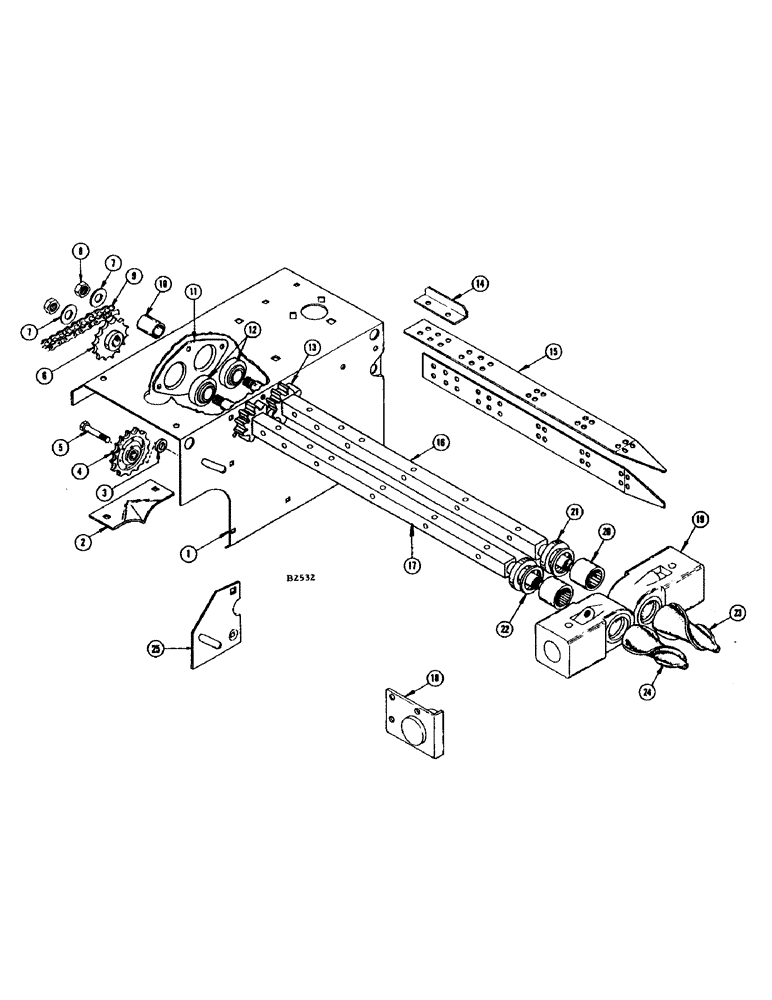

Запчасти Case IH 402 (62) - STALK ROLLS, ROWS 2, 3 AND 4 (58) - ATTACHMENTS/HEADERS

1

F54541

PLATE

- bearing, stalk roll, R.H. (Rows 2 and 3)

1шт.

1

F54541

PLATE

- bearing, stalk roll, R.H. (Row 4)

2шт.

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- 3/8" x 5/8" N. F. hex. (Rows 2 and 3)

4шт.

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- 3/8" x 5/8" N. F. hex. (Row 4)

8шт.

131-177

LOCK NUT,3/8"-24, GA

JAM NUT - 3/8" - 24 N. F. hex. centerlock (Rows 2 and 3)

4шт.

131-177

LOCK NUT,3/8"-24, GA

JAM NUT - 3/8" - 24 N. F. hex. centerlock (Row 4)

8шт.

F54542

PLATE - bearing stalk roll, L.H. (Row 2)

1шт.

F54542

PLATE - bearing stalk roll, L.H. (Rows 3 and 4)

2шт.

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- 3/8" x 5/8" N. F. hex. (Row 2)

4шт.

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- 3/8 x 5/8" N. F. hex. (Rows 3 and 4)

8шт.

230-4616

LOCK NUT,3/8"-24, GA

JAM NUT - 3/8" - 24 N. F. hex., Gripco (Row 2)

4шт.

230-4616

LOCK NUT,3/8"-24, GA

JAM NUT - 3/8" - 24 N. F. hex., Gripco (Rows 3 and 4)

8шт.

2

F53579

COVER - roll gear (Row 2)

2шт.

2

F53579

COVER - roll gear (Row 3)

3шт.

2

F53579

COVER - roll gear (Row 4)

4шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk. (Row 2)

4шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk. (Row 3)

6шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk. (Row 4)

8шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N. C. hex. (Row 2)

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N. C. hex. (Row 3)

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N. C. hex. (Row 4)

8шт.

92-5

LOCK WASHER,5/16"

(Row 2) 5/16"

4шт.

92-5

LOCK WASHER,5/16"

(Row 3) 5/16"

6шт.

92-5

LOCK WASHER,5/16"

(Row 4) 5/16"

8шт.

3

F53661

SPACER (Row 2)

2шт.

3

F53661

SPACER (Row 3)

3шт.

3

F53661

SPACER (Row 4)

4шт.

4

F53736

IDLER - snap roll chain (Row 2)

2шт.

4

F53736

IDLER - snap roll chain (Row 3)

3шт.

4

F53736

IDLER - snap roll chain (Row 4)

4шт.

5

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N. F. hex. (Row 2)

2шт.

5

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N. F. hex. (Row 3)

3шт.

5

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N. F. hex. (Row 4)

4шт.

25-118

NUT,1/2"-20, G5

- 1/2" N. F. hex. (Row 2)

2шт.

25-118

NUT,1/2"-20, G5

- 1/2" N. F. hex. (Row 3)

3шт.

25-118

NUT,1/2"-20, G5

- 1/2" N. F. hex. (Row 4)

4шт.

92-8

LOCK WASHER,1/2"

(Row 2) 1/2"

2шт.

92-8

LOCK WASHER,1/2"

(Row 3) 1/2"

3шт.

92-8

LOCK WASHER,1/2"

(Row 4) 1/2"

4шт.

6

F92024

SPROCKET - (15T) stalk roll drive (Row 2)

2шт.

6

F92024

SPROCKET - (15T) stalk roll drive (Row 3)

3шт.

6

F92024

SPROCKET - (15T) stalk roll drive (Row 4)

4шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

(Row 2) #A, 1/4" x 7/8"

2шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

(Row 3) #A, 1/4" x 7/8"

3шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

(Row 4) #A, 1/4" x 7/8"

4шт.

7

O4413N

WASHER (Row 2)

4шт.

7

O4413N

WASHER (Row 3)

6шт.

7

O4413N

WASHER (Row 4)

8шт.

8

131-581

LOCK NUT,3/4"-16

NUT - 3/4" N. F. flexloc (Row 2)

4шт.

8

131-581

LOCK NUT,3/4"-16

NUT - 3/4" N. F. flexloc (Row 3)

6шт.

8

131-581

LOCK NUT,3/4"-16

NUT - 3/4" N. F. flexloc (Row 4)

8шт.

9

F53660

X

CHAIN - snapping roll drive (NSS - see page 5) (Row 2)

2шт.

9

F53660

X

CHAIN - snapping roll drive (NSS - see page 5) (Row 3)

3шт.

9

F53660

X

CHAIN - snapping roll drive (NSS - see page 5) (Row 4)

4шт.

B12510

CHAIN LINK

LINK - offset, #60 roller chain

1шт.

10

F53629

SPACER - snapping roll, for F53627 (Row 2)

2шт.

10

F53629

SPACER - snapping roll, for F53627 (Row 3)

3шт.

10

F53629

SPACER - snapping roll, for F53627 (Row 4)

4шт.

11

F53577

FLANGE

- two bearing (Row 2)

4шт.

11

F53577

FLANGE

- two bearing (Row 3)

6шт.

11

F53577

FLANGE

- two bearing (Row 4)

8шт.

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- 3/8" x 5/8" N. F. hex. (Row 2)

8шт.

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- 3/8" x 5/8" N. F. hex. (Row 3)

12шт.

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- 3/8" x 5/8" N. F. hex. (Row 4)

16шт.

131-177

LOCK NUT,3/8"-24, GA

JAM NUT - 3/8" - 24 N. F. hex., centerlock (Row 2)

8шт.

131-177

LOCK NUT,3/8"-24, GA

JAM NUT - 3/8" - 24 N. F. hex., centerlock (Row 3)

12шт.

131-177

LOCK NUT,3/8"-24, GA

JAM NUT - 3/8" - 24 N. F. hex., centerlock (Row 4)

16шт.

12

F53578

BEARING

- rear stalk roll (Row 2)

4шт.

12

F53578

BEARING

- rear stalk roll (Row 3)

6шт.

12

F53578

BEARING

- rear stalk roll (Row 4)

8шт.

13

F3800

GEAR - stalk roll drive (Row 2)

4шт.

13

F3800

GEAR - stalk roll drive (Row 3)

6шт.

13

F3800

GEAR - stalk roll drive (Row 4)

8шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

(Row 2) #A, 1/4" x 7/8"

4шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

(Row 3) #A, 1/4" x 7/8"

6шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

(Row 4) #A, 1/4" x 7/8"

8шт.

14

F55107

EJECTOR - stalk (Row 2)

16шт.

14

F55107

EJECTOR - stalk (Row 3)

24шт.

14

F55107

EJECTOR - stalk (Row 4)

32шт.

114-134

BOLT - 5/16" x 2-1/2" N. F. hex. (Row 2)

16шт.

114-134

BOLT - 5/16" x 1-1/2" N. F. hex. (Row 3)

24шт.

114-134

BOLT - 5/16" x 2-1/2" N. F. hex. (Row 4)

32шт.

131-3

LOCK NUT,5/16"-24, GB

NUT - 5/16" nylon lock, N. F. hex. (Row 2)

16шт.

131-3

LOCK NUT,5/16"-24, GB

NUT - 5/16" nylon lock, N. F. hex. (Row 3)

24шт.

131-3

LOCK NUT,5/16"-24, GB

NUT - 5/16" nylon lock, N. F. hex. (Row 4)

32шт.

15

F54992

FLUTE - snapping roll (Row 2)

16шт.

15

F54992

FLUTE - snapping roll (Row 3)

24шт.

15

F54992

FLUTE - snapping roll (Row 4)

32шт.

14-534

BOLT - 5/16" x 2-1/8" N. F. hex. (Row 2)

32шт.

14-534

BOLT - 5/16" x 2-1/8" N. F. hex. (Row 3)

48шт.

14-534

BOLT - 5/16" x 2-1/8" N. F. hex. (Row 4)

64шт.

131-3

LOCK NUT,5/16"-24, GB

NUT - 5/16" nylon lock N. F. hex. (Row 2)

32шт.

131-3

LOCK NUT,5/16"-24, GB

NUT - 5/16" nylon lock N. F. hex. (Row 3)

48шт.

131-3

LOCK NUT,5/16"-24, GB

NUT - 5/16" nylon lock N. F. hex. (Row 4)

64шт.

16

F53627

SHAFT - snapping roll (Driven) (Row 2)

2шт.

16

F53627

SHAFT - snapping roll (Driven) (Row 3)

3шт.

16

F53627

SHAFT - snapping roll (Driven) (Row 4)

4шт.

131-581

LOCK NUT,3/4"-16

NUT - 3/4" N. F. flexloc

1шт.

17

F53619

SHAFT - snapping roll (Driven) (Row 2)

2шт.

17

F53619

SHAFT - snapping roll (Driven) (Row 3)

3шт.

17

F53619

SHAFT - snapping roll (Driven) (Row 4)

4шт.

18

F92498

SUPPORT - bearing stationary roll, R.H. front (Rows 2 and 3)

1шт.

18

F92498

SUPPORT - bearing stationary roll, R.H. front (Row 4)

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N. F. hex. (Rows 2 and 3)

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N. F. hex. (Row 4)

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N. F. hex., L.W. (92-6) (Rows 2 and 3)

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N. F. hex., L.W. (92-6)

4шт.

F92521

SUPPORT - bearing stationary roll front, L.H. (Row 2)

1шт.

F92521

SUPPORT - bearing stationary roll front, L.H. (Rows 3 and 4)

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N. F. hex. (Row 2)

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N. F. hex. (Rows 3 and 4)

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N. F. hex., L.W. (92-6) (Row 2)

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N. F. hex., L.W. (92-6) (Rows 3 and 4)

4шт.

19

F92419

SUPPORT - bearing (Row 2)

4шт.

19

F92419

SUPPORT - bearing (Row 3)

6шт.

19

F92419

SUPPORT - bearing (Row 4)

8шт.

20

F53622

BEARING, NEEDLE

BEARING - stalk roll front

1шт.

21

F53624

WASHER

- bronze (Each side of F53622)

2шт.

22

F53623

WASHER

- felt (Each side of F53622)

2шт.

F86399

FITTING

1шт.

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Row 2) Hex, 5/16"-18 x 2", G5

4шт.

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Row 3) Hex, 5/16"-18 x 2", G5

6шт.

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Row 4) Hex, 5/16"-18 x 2", G5

8шт.

92-5

LOCK WASHER,5/16"

(Row 2) 5/16"

4шт.

92-5

LOCK WASHER,5/16"

(Row 3) 5/16"

6шт.

92-5

LOCK WASHER,5/16"

(Row 4) 5/16"

8шт.

23

F2303

POINT - snapping roll, for F53627 (Row 2)

2шт.

23

F2303

POINT - snapping roll, for F53627 (Row 3)

3шт.

23

F2303

POINT - snapping roll, for F53627 (Row 4)

4шт.

24

F2302

POINT - snapping roll, for F53619 (Row 2)

2шт.

24

F2302

POINT - snapping roll, for F53619 (Row 3)

3шт.

24

F2302

POINT - snapping roll, for F53619 (Row 4)

4шт.

25

F54591

REINFORCEMENT - R.H. (Rows 2 and 3)

1шт.

25

F54591

REINFORCEMENT - R.H. (Row 4)

2шт.

F54592

REINFORCEMENT - L.H. (Row 2)

1шт.

F54592

REINFORCEMENT - L.H. (Rows 3 and 4)

2шт.

111-316

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5

BOLT, CARRIAGE, , Nut (25-106) (Row 2) Short NK, 3/8"-16 x 1", G5

1шт.

111-316

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5

BOLT, CARRIAGE, , Nut (25-106) (Rows 3 and 4) Short NK, 3/8"-16 x 1", G5

2шт.

19-616

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 8

- 3/8" x 1" plow (Row 4)

2шт.
