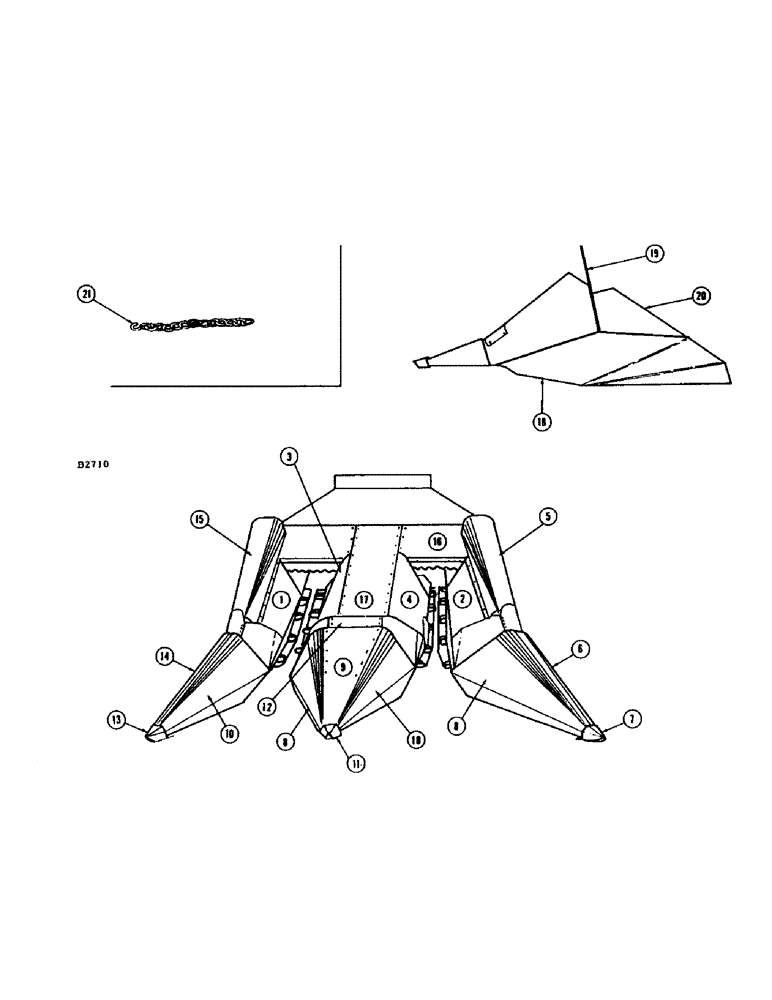

Запчасти Case IH 402 (54) - STALKWAY AND FLOATING POINTS - 402 (58) - ATTACHMENTS/HEADERS

1

F92505

STALK SHEET - outer, R.H.

1шт.

14-656

SCREW,3/8" - 24 x 3 1/2"

BOLT - 3/8" x 3-1/2" N. F. hex.

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N. F. hex., L.W. (92-6)

6шт.

175-451

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N. F. tr. hed. mach., nut (25-104) L.W. (92-4)

2шт.

2

F92523

STALK SHEET - outer, L.H.

1шт.

COMMODITIES - same as for ref. 1

1шт.

3

F92990

STALK SHEET - inner, R. H.

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N. F. hex., L.W. (92-6)

2шт.

175-451

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N. F. tr. hd. mach., nut (25-104) L.W. (92-5)

2шт.

4

F92991

STALK SHEET - inner, L.H.

1шт.

COMMODITIES - same as for ref. 3

1шт.

5

F92598

FINISH SHEET - left

1шт.

77-412

SCREW

- 1/4" x 3/4" N. C. tr. hd. mach., nut (25-104) L.W. (92-4)

2шт.

77-48

SCREW,Truss, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N. C. tr. hd. mach., nut (25-104) L.W. (92-4)

5шт.

77-512

SCREW

- 5/16" x 1/2" N. C. tr. hd. mach., nut (25-105) L.W. (92.5)

2шт.

77-58

SCREW - 5/16" x 3/4" N. C. tr. hd. mach., nut (25-105) L.W. (92-5)

3шт.

6

F92127

POINT - L.H., outer finish half

1шт.

175-451

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" X 1/2" N. F. TR. HD. MACH., NUT (25-114) L.W. (92-4)

5шт.

7

F92124

SHOE - skid, L.H. point

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N. F. hex., nut (25-115) L.W. (92-5)

1шт.

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N. F. hex., nut (25-118) L.W. (92-8)

1шт.

8

F92125

POINT - R.H., half

2шт.

F53909

WASHER - skid shoe (Vinyl)

4шт.

9

F54207

FILLER - center point (34")

1шт.

175-451

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N. F. tr. hd. mach., nut (25-114) L.W. (92-4)

10шт.

10

F92119

POINT - L.H., half

2шт.

11

F92129

SHOE - skid, inner point

1шт.

COMMODITIES - same as ref. 7

1шт.

12

F54204

SHEET - 39" shoulder filler, lower

1шт.

175-412

SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- 5/16" x 1/2" N. C. tr. had. mach.

6шт.

13

F92118

SHOE - skid, R. H. point

1шт.

COMMODITIES - same as for ref. 7

1шт.

14

F92121

POINT - R.H. outer, finish half

1шт.

175-451

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N. F. tr. hd. mach., nut (25-114) L.W. (92-4)

5шт.

15

F92597

FINISHED SHEET - right

1шт.

COMMODITIES - same as for ref. 5

1шт.

16

F54534

COVER - row beater

2шт.

175-451

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N. F. tr. hd. mach., nut (25-114) L.W. (92-4)

6шт.

17

F54535

SHEET - 39" center filler, upper

1шт.

18

F92541

SHEILD - wheel, L.H.

1шт.

F92329

SHIELD - wheel, R.H. (660-960 combine)

1шт.

F92540

SHIELD - wheel, R. H. (1060 combine)

1шт.

19

F54222

ROD - hinge, wheel shield

2шт.

A12470

PIN

- clevis

2шт.

20

F92336

COVER - left end

1шт.

F92335

COVER - right end

1шт.

21

F92122

CHAIN - support, point

3шт.
